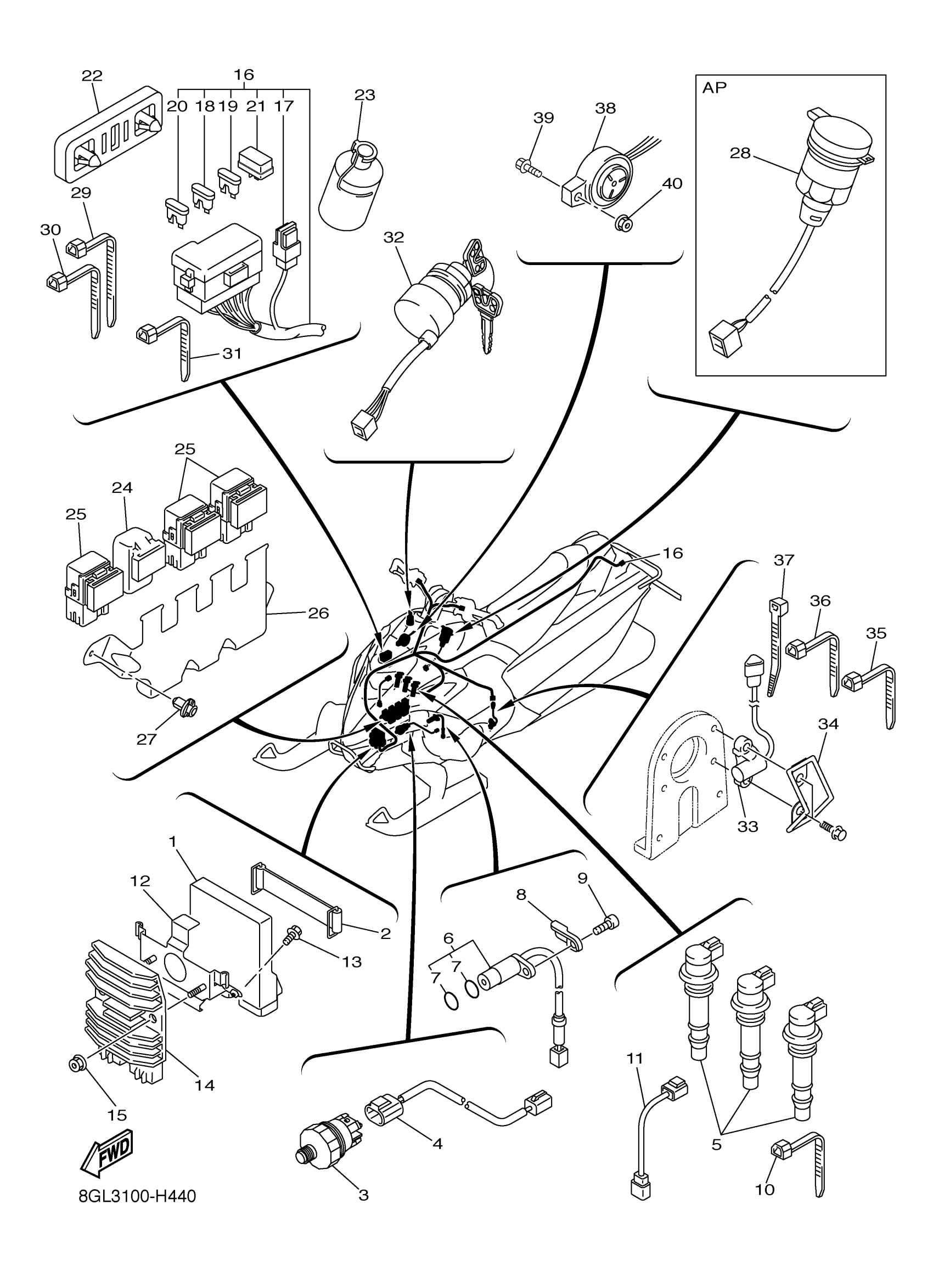

Yamaha FX10RTRYL (FX NYTRO RTX) 8HB50 2009 ELECTRICAL 1 Diagram

#

Description
Price

1

ENGINE CONTROL UNIT ASSY

8GL-8591A-00-00

Unavailable

2

BAND, BATTERY

2T4-82131-00-00

$8.99

3

OIL PRESSURE SWITCH

8FP-82504-01-00

$71.99

4

WIRE, SUB-LEAD

8GL-82318-00-00

$26.99

5

IGNITION COIL ASSY

8ES-82310-00-00

$159.99

6

PICK-UP ASSY

8GL-81670-01-00

$140.99

7

O-RING 1

5VY-8A8E1-00-00

$6.99

8

PLATE

5VY-15589-02-00

$4.99

9

BOLT,SOCKET

91317-06016-00

$1.25

10

CLAMP(4FM)

90464-15195-00

$4.41

11

LEAD WIRE ASSY

8GL-81515-00-00

Unavailable

12

BRACKET, UNIT

8GL-85991-00-00

$23.99

13

BOLT, FLANGE

95022-06010-00

$5.60

14

RECTIFIER & REGULATOR ASSY

1D7-81960-01-00

$323.99

15

NUT, U FLANGE

95604-06200-00

$8.49

16

WIRE HARNESS ASSY

8GL-82590-20-00

Unavailable

17

SLOW BLOW FUSE

JR9-82151-00-00

Unavailable

18

. FUSE (10A)

67F-82151-40-00

Unavailable

19

FUSE

5JJ-82151-20-00

Unavailable

20

. FUSE (3A)

67F-82151-30-00

Unavailable

21

DIODE ASSY

4WA-81980-00-00

Unavailable

22

BRACKET

8FA-83614-00-00

Unavailable

23

COVER

8GL-8252U-00-00

Unavailable

24

RELAY ASSY

5DM-81950-01-00

Unavailable

25

RELAY ASSY (8FP-01)

8FP-81950-01-00

Unavailable

26

HOLDER, RELAY

8GL-81952-00-00

Unavailable

27

RIVET

90269-08006-00

Unavailable

28

TERMINAL COMP.

8FP-8254B-00-00

Unavailable

29

CLAMP(4FM)

90464-15195-00

$4.41

30

CLAMP(4FM)

90464-15195-00

$4.41

31

CLAMP

90464-13077-00

Unavailable

32

MAIN SWITCH ASSY

8GL-82510-00-00

Unavailable

33

SENSOR, SPEED

8GL-83755-00-00

Unavailable

34

COVER 2

8GC-2198G-00-00

Unavailable

35

CLAMP(4FM)

90464-15195-00

$4.41

36

CLAMP(3XW)

90464-35132-00

Unavailable

37

CLAMP(4FM)

90464-15195-00

$4.41

38

BUZZER

8GL-83383-00-00

Unavailable

39

SCREW, WITH WASHER

90159-05035-00

Unavailable

40

NUT, FLANGE

95702-05500-00

Unavailable
