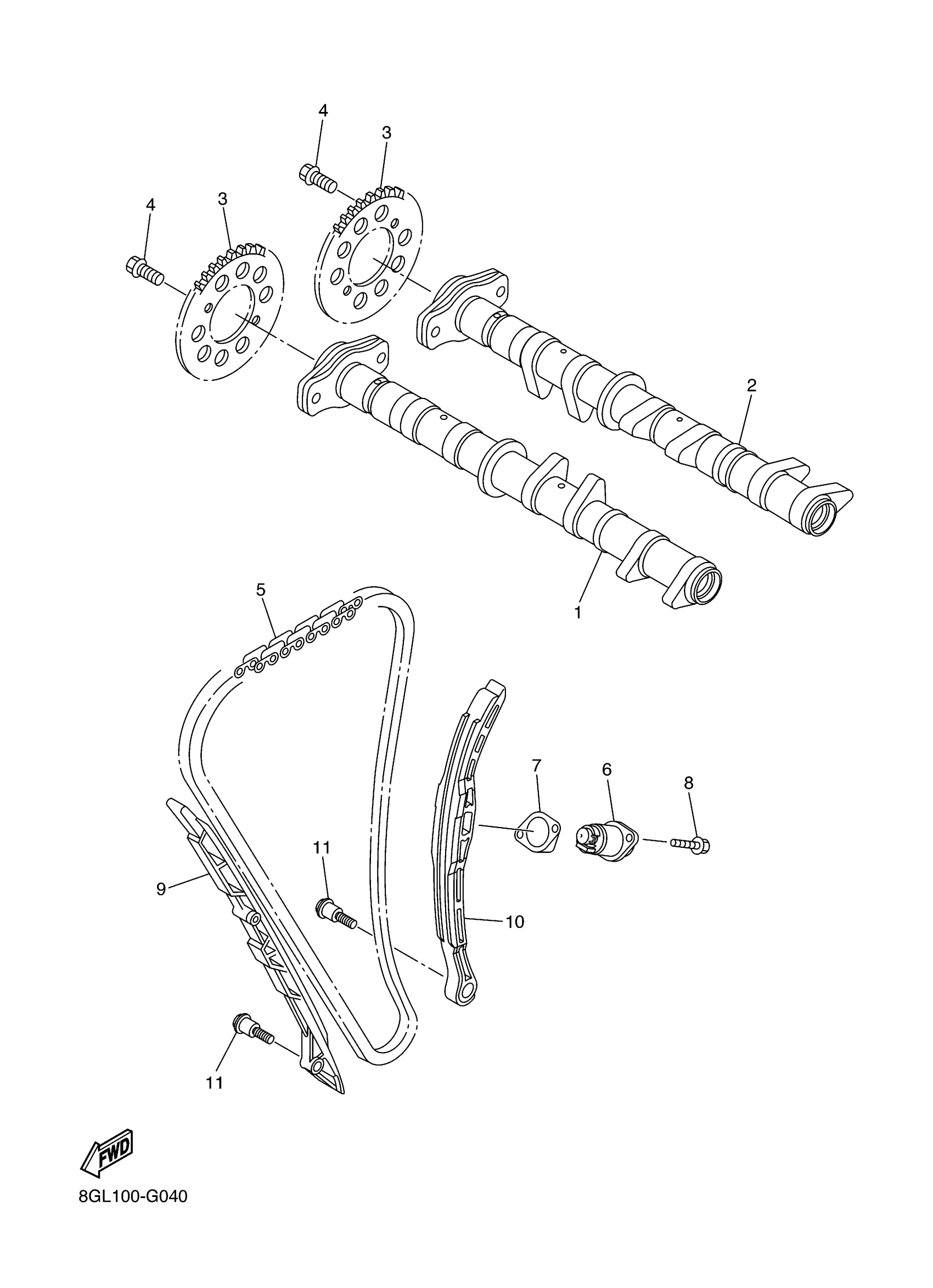

Yamaha FX10RTRYL (FX NYTRO RTX) 8HB50 2009 CAMSHAFT CHAIN Diagram

#

Description
Price

1

CAMSHAFT ASSY 1

8GL-12170-00-00

$281.54

2

CAMSHAFT ASSY 2

8GL-12180-00-00

$281.54

3

SPROCKET, CAM CHAIN

8GL-12176-00-00

$43.12

4

BOLT, FLANGE

90105-07004-00

$5.00

5

CHAIN

94591-57140-00

$37.74

6

TENSIONER ASSY, CAM CHAIN

8GL-12210-10-00

$175.77

7

GASKET, TENSIONER CASE

2C0-12213-00-00

$6.72

8

BOLT, HEXAGON SOCKET HEAD

90110-06106-00

$6.32

9

DAMPER, CHAIN 1

8GL-12251-01-00

$24.69

10

DAMPER, CHAIN 2

8GL-12252-01-00

$159.28

11

BOLT

90109-06188-00

Unavailable
