Description

Price

1

TANK, FUEL

8GL-24111-00-00

Unavailable

2

CAP ASSY

8FG-24610-01-00

$40.99

3

GASKET, CAP 1

8HV-24641-00-00

Unavailable

4

TUBE, FILLER

8FP-24114-00-00

Unavailable

5

FUEL PUMP COMP.

8GL-13907-04-00

Unavailable

6

O-RING

8FP-24486-00-00

$18.99

7

BRACKET, FUEL PUMP

8FP-24491-00-00

Unavailable

8

NUT (J17)

95380-06800-00

$8.49

9

SENDER UNIT ASSY, FUEL METER

8HK-85752-00-00

$92.99

10

O-RING (102)

93210-41041-00

$7.49

11

SCREW, BIND

98902-05008-00

$1.70

12

PIPE, FUEL 1

8GL-24311-01-00

Unavailable

13

CLAMP

90464-14004-00

$7.49

14

TUBE, FLEXIBLE VINYL(8AT)

91A20-05145-00

$29.99

15

PIPE, JOINT

8FR-24461-00-00

Unavailable

16

PIPE, JOINT

8H8-24376-00-00

Unavailable

17

CLIP (8L2)

90467-08017-00

Unavailable

18

CLIP (8A1)

90467-09026-00

Unavailable

19

SPRING, COMPRESSION (10L)

90501-08668-00

Unavailable

20

NUT, NYLON

95717-08300-00

Unavailable

21

WASHER, PLATE (3L7)

90201-08784-00

Unavailable

22

INSULATOR, FUEL TANK 1

8GL-2416F-01-00

Unavailable

23

PROTECTOR, FUEL TANK

8GL-24141-01-00

Unavailable

24

PROTECTOR, FUEL TANK

8GL-24141-10-00

Unavailable

25

CLAMP(4FM)

90464-15195-00

Unavailable

26

CLAMP(4HM)

90464-13194-00

Unavailable

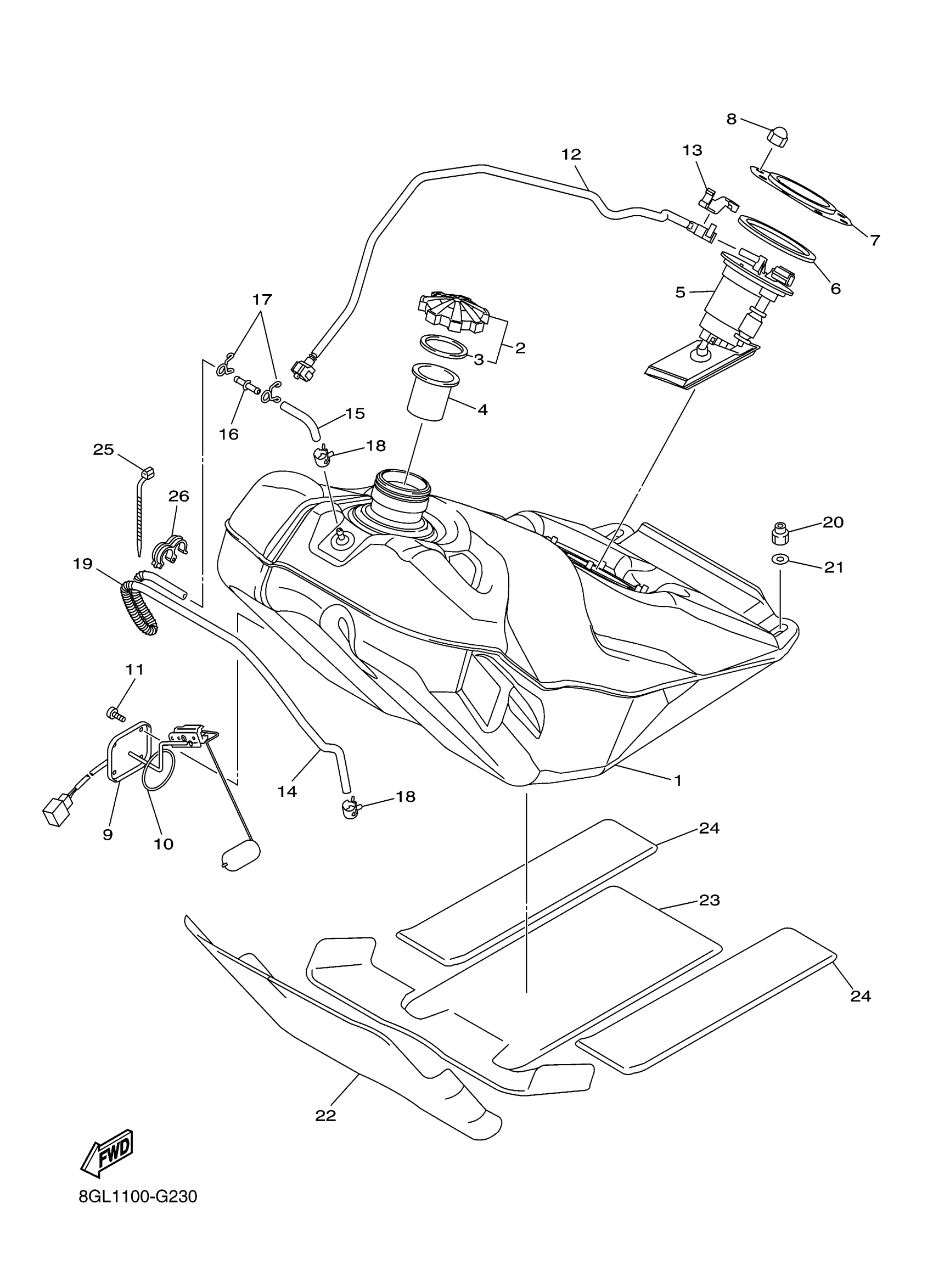

Yamaha FX10RTRXW (FX NYTRO RTX) 8HB10 2008 FUEL TANK Diagram

TANK, FUEL

CAP ASSY

GASKET, CAP 1

TUBE, FILLER

FUEL PUMP COMP.

O-RING

BRACKET, FUEL PUMP

NUT (J17)

SENDER UNIT ASSY, FUEL METER

O-RING (102)

SCREW, BIND

PIPE, FUEL 1

CLAMP

TUBE, FLEXIBLE VINYL(8AT)

PIPE, JOINT

PIPE, JOINT

CLIP (8L2)

CLIP (8A1)

SPRING, COMPRESSION (10L)

NUT, NYLON

WASHER, PLATE (3L7)

INSULATOR, FUEL TANK 1

PROTECTOR, FUEL TANK

PROTECTOR, FUEL TANK

CLAMP(4FM)

CLAMP(4HM)
