- FX10RTRSZL (FX NYTRO RTX SE) 8HK3 2010
TRACK SUSPENSION 1

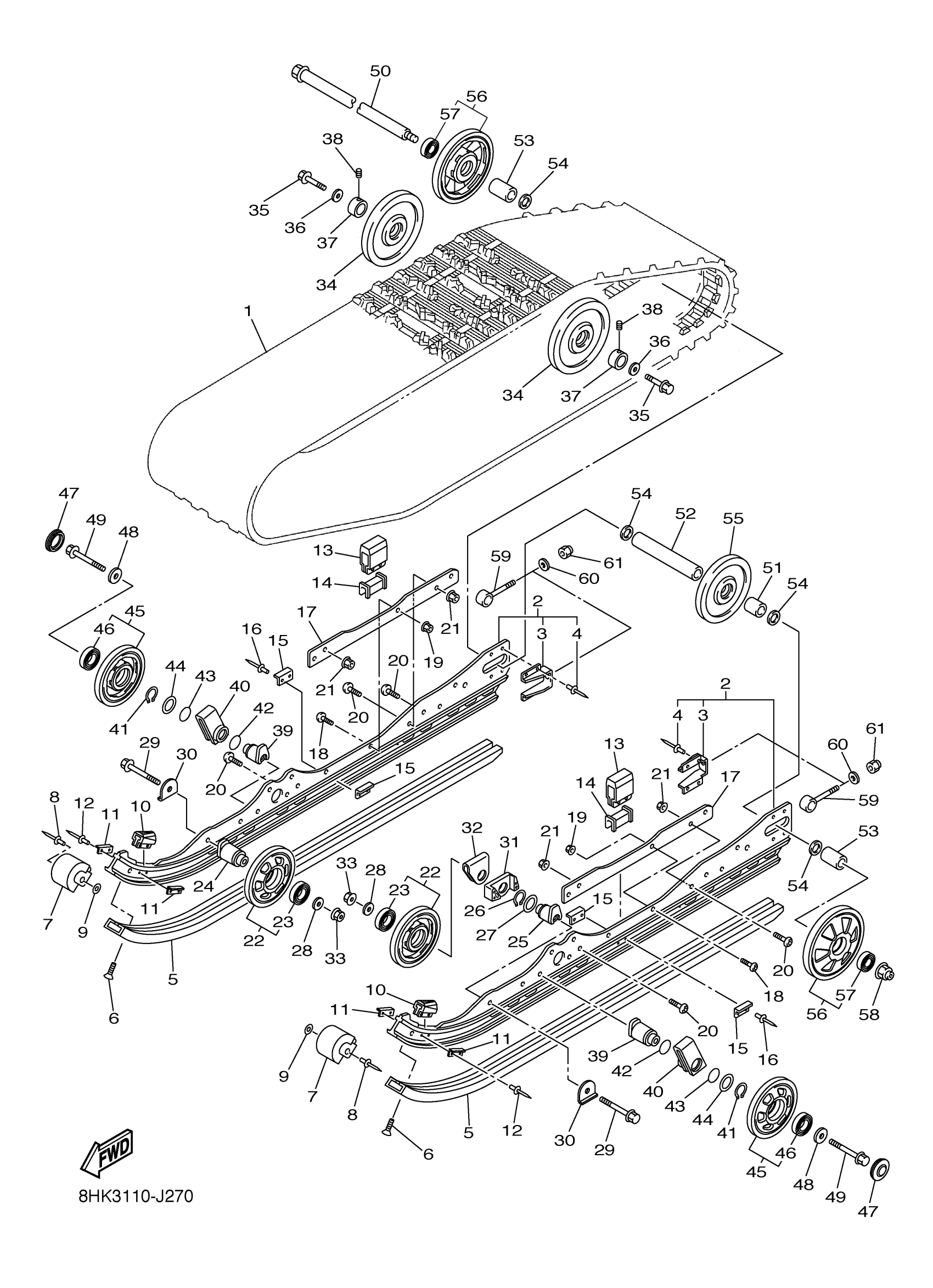

Yamaha FX10RTRSZL (FX NYTRO RTX SE) 8HK3 2010 TRACK SUSPENSION 1 Diagram
#
1
TRACK ASSY
8FA-47110-10-00
Unavailable
2
FRAME, SLIDING
8HK-W4741-10-00
Unavailable
3
BRACKET
8DM-4741B-00-00
$45.99
4
RIVET
8V0-47468-00-00
$10.49
5
SLIDE RUNNER BLK 136''
SMA-8FT92-00-BK
Unavailable
6
SCREW, CROSSRECESS (8G6)
90151-06005-00
$9.49
7
RUNNER, SLIDING 2
8GL-47422-00-00
$30.99
8
RIVET BLIND
90267-48194-00
$3.28
9
WASHER, PLATE(8CM)
90201-047R8-00
$3.02
10
DAMPER 1
8ES-47456-00-00
$6.99
11
PLATE, DAMPER
8K2-47458-01-00
$4.77
12
RIVET, BLIND
90267-48199-00
$3.76
13
DAMPER 2
8GL-47457-00-00
Unavailable
14
SPACER
8HK-47573-00-00
$13.99
15
PLATE, DAMPER
8AX-47458-00-00
$10.99
16
RIVET, BLIND
90267-48199-00
$3.76
17
FRAME, SLIDING C
8HK-4741C-00-00
Unavailable
18
BOLT, BUTTON HEAD
92012-08025-00
Unavailable
19
NUT, SELF-LOCKING
95602-08200-00
Unavailable
20
BOLT, BUTTON HEAD
92012-10025-00
Unavailable
21
NUT, S/L FLANGE
95602-10200-00
Unavailable
22
WHEEL BLK 130MM
SMA-8FP38-01-BK
Unavailable
23
BRG,R-B 6005 47MM 85G KY
93306-00507-00
Unavailable
24
BRACKET 7
8ES-47419-00-00
Unavailable
25
BRACKET 7
8ES-47419-10-00
Unavailable
26
CIRCLIP(6U2)
93410-35M10-00
Unavailable
27
WASHER, PLATE
90201-35013-00
Unavailable
28
WASHER, PLATE
90201-10038-00
Unavailable
29
BOLT, FLANGE
95812-10080-00
Unavailable
30
WASHER, CLAW
90214-10003-00
Unavailable
31
BRACKET 6
8HB-47464-00-00
Unavailable
32
HOOK 1
8HB-47446-00-00
Unavailable
33
NUT, S/L FLANGE
95602-10200-00
Unavailable
34
GUIDE WHEEL ASSY
8CR-47550-00-00
Unavailable
35
BOLT
90109-10032-00
Unavailable
36
WASHER, PLATE
90201-10064-00
Unavailable
37
COLLAR 1
8FS-47365-00-00
Unavailable
38
BOLT, SET (8K2)
90113-06039-00
Unavailable
39
BRACKET 7
8ES-47419-10-00
Unavailable
40
HOOK 1
8ES-47446-00-00
Unavailable
41
CIRCLIP(6U2)
93410-35M10-00
Unavailable
42
O-RING (16G)
93210-35537-00
Unavailable
43
O-RING (21A)
93210-34633-00
Unavailable
44
WASHER, PLATE
90201-35013-00
Unavailable
45
WHEEL BLK 130MM
SMA-8FP38-01-BK
Unavailable
46
BRG,R-B 6005 47MM 85G KY
93306-00507-00
Unavailable
47
CAP, WHEEL
8HF-47317-00-00
Unavailable
48
WASHER, PLATE
90201-10038-00
Unavailable
49
BOLT, FLANGE
95812-10080-00
Unavailable
50
REAR AXLE COMP.
8L8-47520-10-00
Unavailable
51
COLLAR
90387-20015-00
Unavailable
52
COLLAR
90387-20016-00
Unavailable
53
COLLAR
90387-20019-00
Unavailable
54
WASHER, PLATE
90201-20022-00
Unavailable
55
GUIDE WHEEL ASSY
8CR-47550-10-00
Unavailable
56
REAR WHEEL BLK 178MM
SMA-8FP38-02-BK
Unavailable
57
BEARING(8AB)
93306-00444-00
Unavailable
58
NUT, U FLANGE
95602-14200-00
Unavailable
59
COLLAR 3
8DM-47479-00-00
Unavailable
60
WASHER, PLATE
92990-10600-00
Unavailable
61
NUT, NYLON
95707-10300-00
Unavailable
