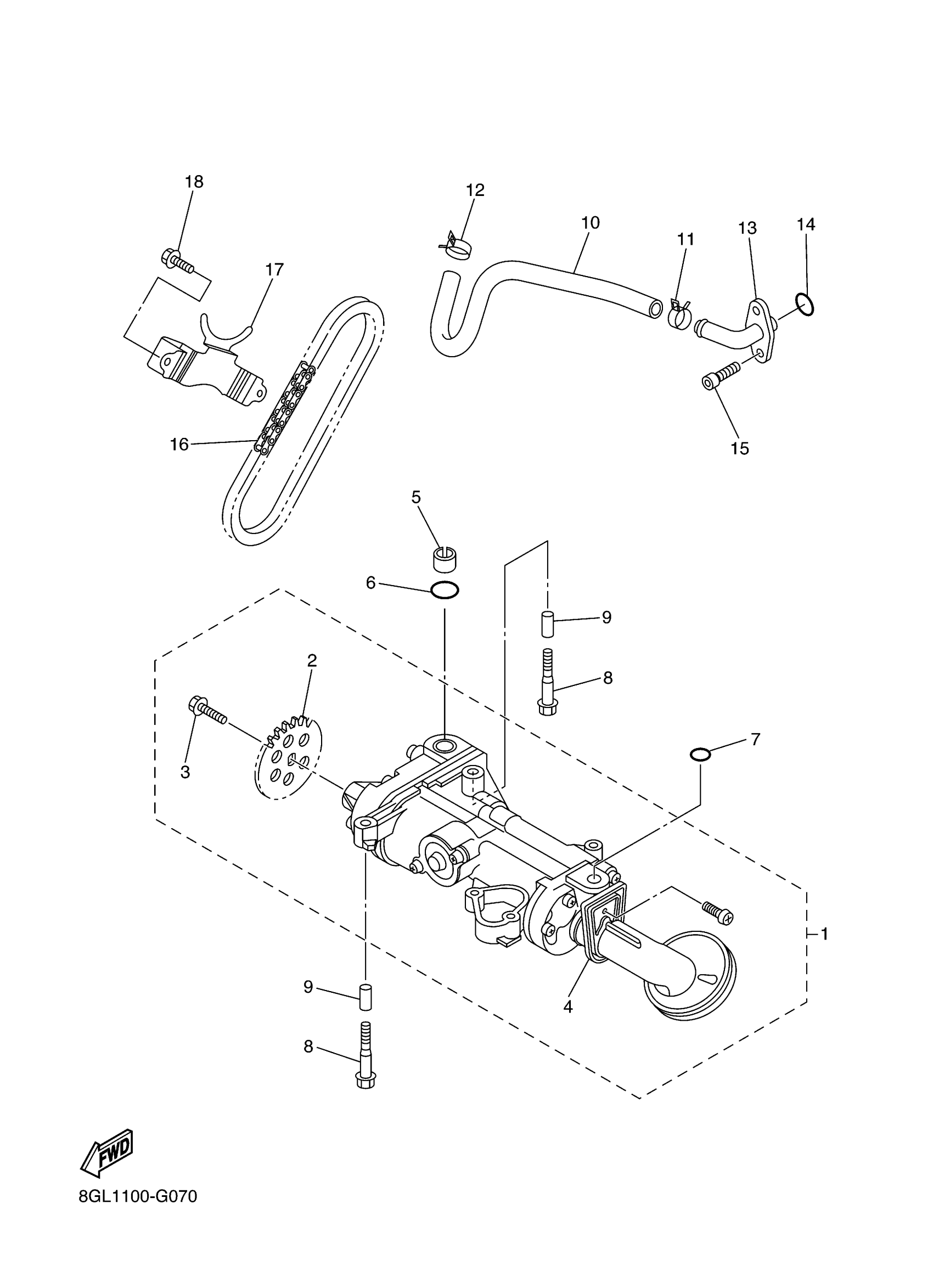

Yamaha FX10RTRSZL (FX NYTRO RTX SE) 8HK3 2010 OIL PUMP Diagram

#

Description
Price

1

OIL PUMP ASSY

8GL-13300-00-00

$572.99

2

SPROCKET, DRIVEN

4XV-13355-00-00

Unavailable

3

BOLT, FLANGE

90105-06066-00

$8.49

4

SPACER, STRAINER

8ES-13427-00-00

$18.49

5

PIPE

8ES-13284-00-00

$4.68

6

O-RING (1L9)

93210-18322-00

$5.60

7

O-RING (26H)

93210-14579-00

$7.49

8

BOLT, FLANGE

95817-06040-00

$5.60

9

PIN, DOWEL(8AH)

91808-22019-00

$9.49

10

HOSE, OIL 1

8GL-13464-00-00

Unavailable

11

CLIP(34X)

90467-22097-00

$9.49

12

CLIP(34X)

90467-22097-00

$9.49

13

CONNECTOR, SUCTION PIPE

8ES-13115-00-00

$43.99

14

O-RING (26H)

93210-16629-00

$7.49

15

BOLT(3MA)

91312-06016-00

$5.60

16

CHAIN

94580-25064-00

Unavailable

17

HOLDER

8ES-13898-01-00

Unavailable

18

BOLT, FLANGE

95817-06012-00

Unavailable
