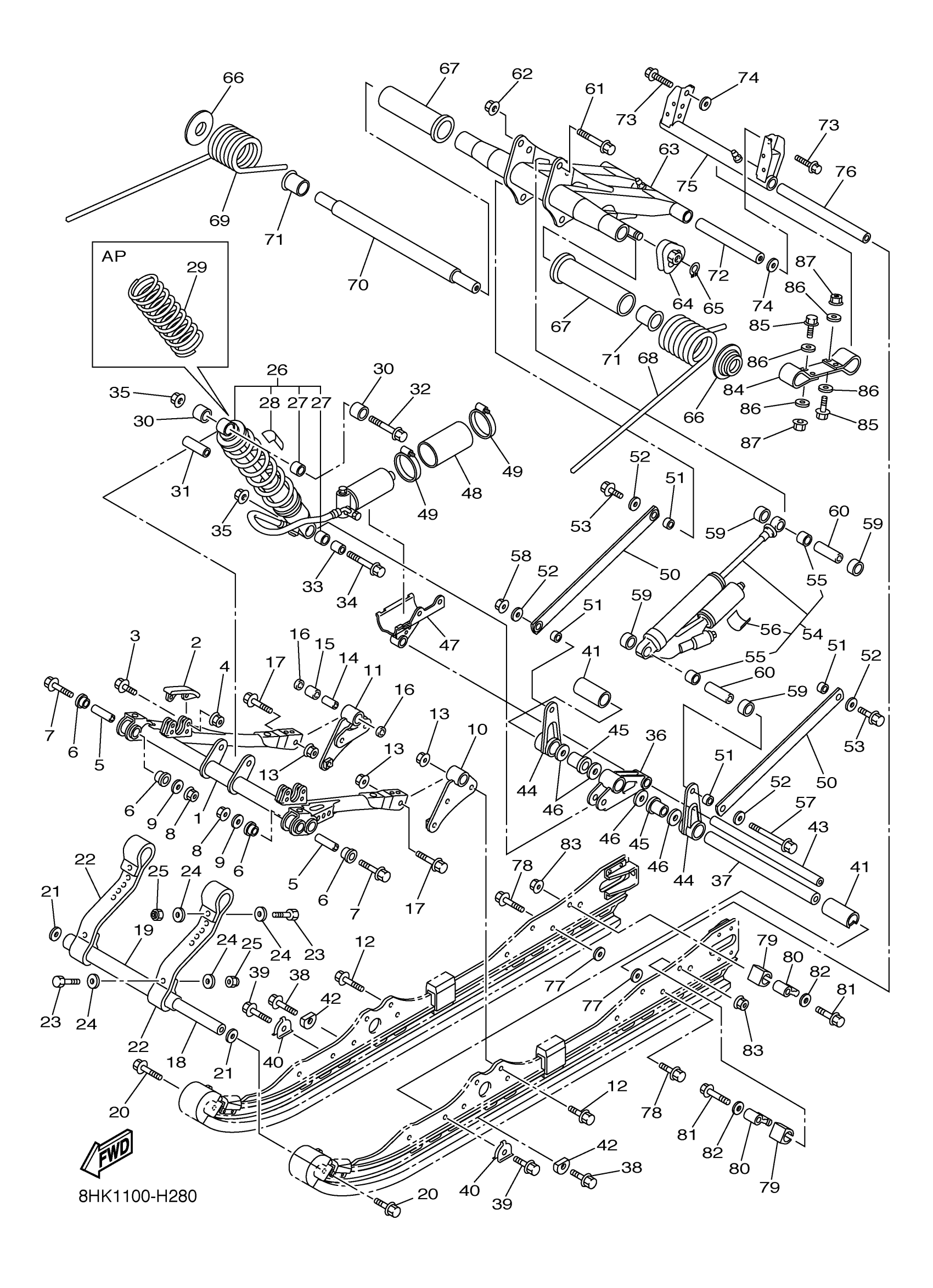

Yamaha FX10RTRSYL (FX NYTRO RTX SE) 8HK1 2009 TRACK SUSPENSION 2 Diagram

#

Description
Price

1

ARM, PIVOT 1

8HK-47331-00-00

Unavailable

2

RUNNER, SLIDING 2

8F3-47422-01-00

$15.63

3

BOLT, FLANGE

95817-06020-00

$2.69

4

NUT, U FLANGE

95604-06200-00

$2.35

5

SHAFT 1

8GL-47465-00-00

$12.32

6

BUSH, SOLID(2WR)

90381-18068-00

$33.86

7

BOLT, FLANGE

90105-10135-00

$5.14

8

NUT, S/L FLANGE

95602-10200-00

$2.29

9

WASHER, PLATE

90201-10046-00

$4.66

10

BRACKET 1

8GL-47415-00-00

$68.38

11

BRACKET 4

8GL-47418-00-00

$68.38

12

. BOLT, FLANGE

95812-10025-00

$2.45

13

NUT, S/L FLANGE

95602-10200-00

$2.29

14

COLLAR

90387-1012A-00

$17.77

15

BEARING

93315-31758-00

$33.76

16

OIL SEAL

93109-17071-00

$6.72

17

BOLT, FLANGE (8V9)

95812-10045-00

$3.54

18

SHAFT 3

8FU-47485-00-00

$45.37

19

COLLAR

90387-20002-00

Unavailable

20

BOLT, FLANGE

95817-10030-00

$6.17

21

WASHER, PLATE (26H)

90201-102G9-00

$6.38

22

STOPPER 1

8HK-47495-00-00

Unavailable

23

BOLT, HEXAGON

97017-06025-00

$2.98

24

WASHER, PLATE

90201-06036-00

$6.26

25

NUT, NYLON

95707-06300-00

$3.20

26

SHOCK ABSORBER 2

8HB-47481-31-00

$1,177.99

27

BUSH, BIMETAL FORMED

90384-17N50-00

$11.02

28

LABEL, WARNING

4AA-22259-60-00

$6.02

29

SPRING

8HB-47336-10-00

Unavailable

30

SPACER

8FU-47341-00-00

$6.65

31

COLLAR

90387-10034-00

$23.43

32

BOLT, FLANGE

90105-10335-00

$10.46

33

COLLAR

90387-10064-00

Unavailable

34

BOLT, FLANGE (8V9)

95812-10045-00

$3.54

35

NUT, S/L FLANGE

95602-10200-00

$2.29

36

BRACKET, ARM PIVOT

8GL-47349-00-00

Unavailable

37

SHAFT 5

8GL-47487-00-00

$148.32

38

BOLT, FLANGE

95817-10030-00

$6.17

39

BOLT, FLANGE

90105-10334-00

$10.88

40

WASHER

8GL-47384-00-00

$11.38

41

COLLAR

90387-26010-00

Unavailable

42

SPACER

8GL-47341-00-00

$13.22

43

SHAFT 4

8GL-47486-00-00

$90.83

44

BRACKET 2

8GL-47416-00-00

Unavailable

45

BUSH

90386-25002-00

$30.52

46

WASHER, PLATE (5F7)

90201-256E4-00

$9.78

47

HOLDER, ABSORBER

8HB-4748A-00-00

$60.43

48

BRACKET

8HB-4748B-00-00

$8.00

49

HOSE CLAMP ASSY

90450-60001-00

$5.86

50

RELAY ROD ASSY

8GL-47490-00-00

$66.57

51

COLLAR

90387-10066-00

$6.05

52

WASHER, PLATE

90201-16027-00

$7.09

53

BOLT, FLANGE(3GD)

95817-10025-00

$6.17

54

SHOCK ABSORBER

8HK-47480-01-00

$1,556.99

55

BUSH, BIMETAL FORMED

90384-17N50-00

$11.02

56

LABEL, WARNING

4AA-22259-60-00

$6.02

57

BOLT, FLANGE

90105-10338-00

Unavailable

58

NUT, S/L FLANGE

95602-10200-00

$2.29

59

SPACER

8FU-47341-00-00

$6.65

60

COLLAR

90387-10034-00

$23.43

61

BOLT, FLANGE

90105-10335-00

$10.46

62

NUT, S/L FLANGE

95602-10200-00

$2.29

63

ARM, PIVOT 2

8HK-47332-00-00

Unavailable

64

HOOK 2

8ES-47447-00-00

$17.94

65

CIRCLIP(13H)

99009-14400-00

$2.48

66

PLATE, GUIDE

8ES-47467-00-00

$16.89

67

PROTECTOR

8HK-47445-00-00

$10.38

68

SPRING, REAR 1

8GL-47473-00-00

$238.18

68

SPRING, REAR 1

8GL-47473-10-00

$187.26

68

SPRING, REAR 1

8GL-47473-20-00

$238.18

69

SPRING, REAR 2

8GL-47474-00-00

$238.18

69

SPRING, REAR 2

8GL-47474-10-00

$187.26

69

SPRING, REAR 2

8GL-47474-20-00

$244.83

70

SHAFT 2

8GL-47475-00-00

$94.55

71

BUSH, SOLID(8CJ)

90381-28108-00

$12.18

72

SHAFT 6

8GC-47488-00-00

$37.00

73

BOLT, FLANGE

95817-10030-00

$6.17

74

WASHER, PLATE

90201-19008-00

$3.37

75

BRACKET 3

8GC-47417-10-00

$81.34

76

SHAFT 3

8FU-47485-00-00

$45.37

77

WASHER PLATE (789)

90201-10136-00

$7.26

78

BOLT, FLANGE

95817-10030-00

$6.17

79

STOPPER 2

8GC-47496-00-00

$4.22

80

COLLAR

8GN-47338-00-00

$28.02

81

BOLT, HEXAGON

97017-10050-00

Unavailable

82

WASHER, PLATE

90201-10061-00

$5.22

83

NUT, S/L FLANGE

95602-10200-00

$2.29

84

STOPPER 2

8GL-47496-10-00

Unavailable

85

BOLT, HEXAGON

97017-06025-00

$2.98

86

WASHER, PLATE

90201-06036-00

$6.26

87

NUT, NYLON

95707-06300-00

$3.20
