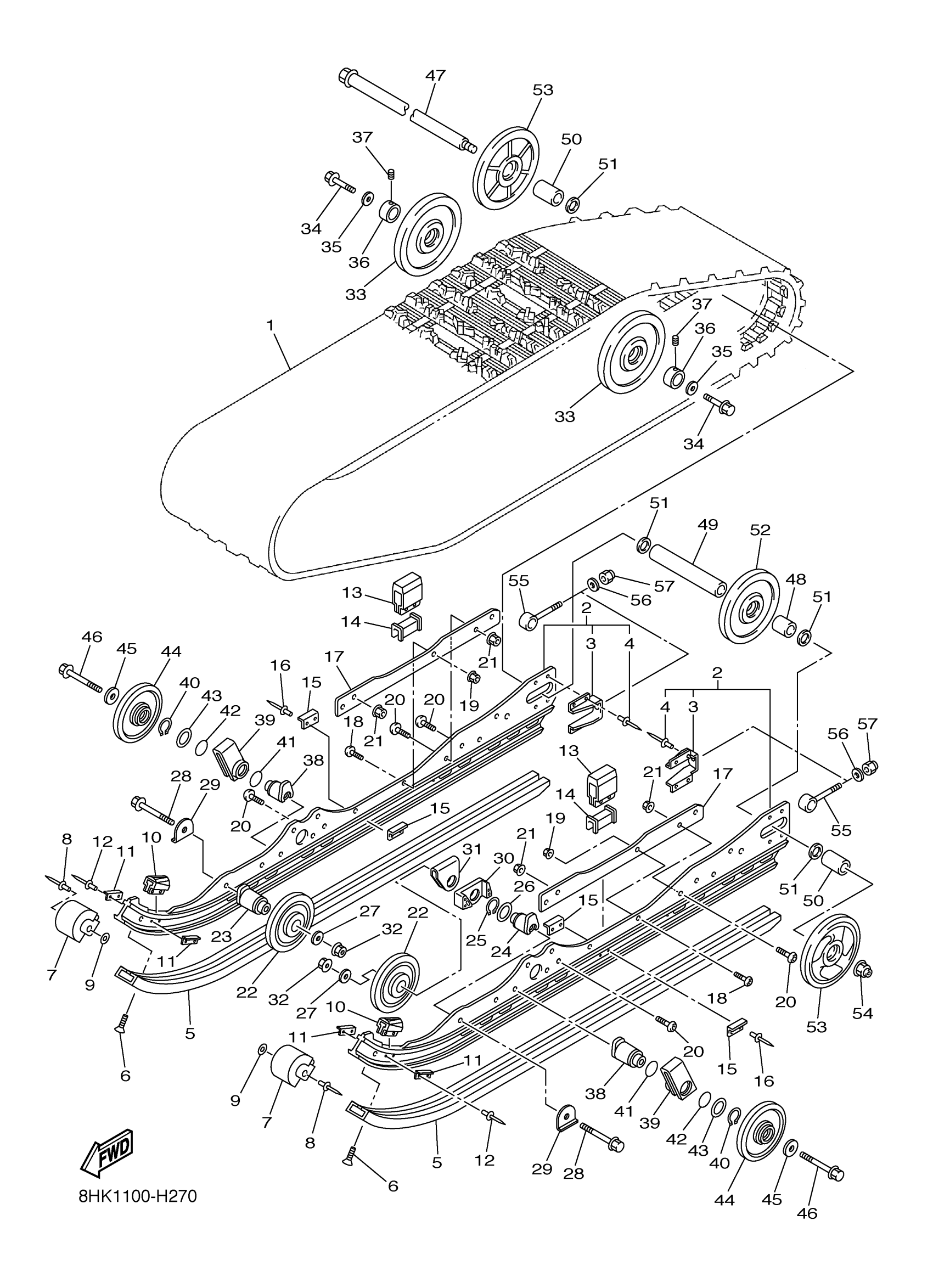

Yamaha FX10RTRSYL (FX NYTRO RTX SE) 8HK1 2009 TRACK SUSPENSION 1 Diagram

#

Description
Price

1

TRACK ASSY

8FA-47110-10-00

Unavailable

2

FRAME, SLIDING

8HK-W4741-00-00

Unavailable

3

BRACKET

8DM-4741B-00-00

$39.86

4

RIVET

8V0-47468-00-00

$7.54

5

SLIDE RUNNER BLK 136''

SMA-8FT92-00-BK

$27.82

6

SCREW, CROSSRECESS (8G6)

90151-06005-00

$7.18

7

RUNNER, SLIDING 2

8GL-47422-00-00

$24.80

8

RIVET BLIND

90267-48194-00

$2.20

9

WASHER, PLATE(8CM)

90201-047R8-00

$2.31

10

DAMPER 1

8ES-47456-00-00

$6.28

11

PLATE, DAMPER

8K2-47458-01-00

$2.45

12

RIVET, BLIND

90267-48199-00

$2.62

13

DAMPER 2

8GL-47457-00-00

Unavailable

14

SPACER

8HK-47573-00-00

Unavailable

15

PLATE, DAMPER

8AX-47458-00-00

$8.08

16

RIVET, BLIND

90267-48199-00

$2.62

17

FRAME, SLIDING C

8HK-4741C-00-00

Unavailable

18

BOLT, BUTTON HEAD

92012-08025-00

$5.75

19

NUT, SELF-LOCKING

95602-08200-00

$2.77

20

BOLT, BUTTON HEAD

92012-10025-00

Unavailable

21

NUT, S/L FLANGE

95602-10200-00

$2.29

22

SUSPENSION WHEEL ASSY

8ET-47310-00-00

$76.81

23

BRACKET 7

8ES-47419-00-00

$21.03

24

BRACKET 7

8ES-47419-10-00

$21.03

25

CIRCLIP(6U2)

93410-35M10-00

$4.54

26

WASHER, PLATE

90201-35013-00

$3.49

27

WASHER, PLATE

90201-10038-00

$5.12

28

BOLT, FLANGE

95812-10080-00

$7.18

29

WASHER, CLAW

90214-10003-00

$19.45

30

BRACKET 6

8HB-47464-00-00

$19.97

31

HOOK 1

8HB-47446-00-00

$22.97

32

NUT, S/L FLANGE

95602-10200-00

$2.29

33

GUIDE WHEEL ASSY

8CR-47550-00-00

$22.15

34

BOLT

90109-10032-00

$5.86

35

WASHER, PLATE

90201-10064-00

$3.60

36

COLLAR 1

8FS-47365-00-00

$24.06

37

BOLT, SET (8K2)

90113-06039-00

$6.97

38

BRACKET 7

8ES-47419-10-00

$21.03

39

HOOK 1

8ES-47446-00-00

$16.85

40

CIRCLIP(6U2)

93410-35M10-00

$4.54

41

O-RING (16G)

93210-35537-00

$11.32

42

O-RING (21A)

93210-34633-00

$8.31

43

WASHER, PLATE

90201-35013-00

$3.49

44

SUSPENSION WHEEL ASSY

8ET-47310-00-00

$76.81

45

WASHER, PLATE

90201-10038-00

$5.12

46

BOLT, FLANGE

95812-10080-00

$7.18

47

REAR AXLE COMP.

8L8-47520-10-00

$67.31

48

COLLAR

90387-20015-00

$23.32

49

COLLAR

90387-20016-00

$20.42

50

COLLAR

90387-20019-00

$22.38

51

WASHER, PLATE

90201-20022-00

$6.78

52

GUIDE WHEEL ASSY

8CR-47550-10-00

Unavailable

53

WEIGHT

8EK-47550-11-00

Unavailable

54

NUT, U FLANGE

95602-14200-00

$9.89

55

COLLAR 3

8DM-47479-00-00

$15.04

56

WASHER, PLATE

92990-10600-00

$2.61

57

NUT, NYLON

95707-10300-00

$6.68
