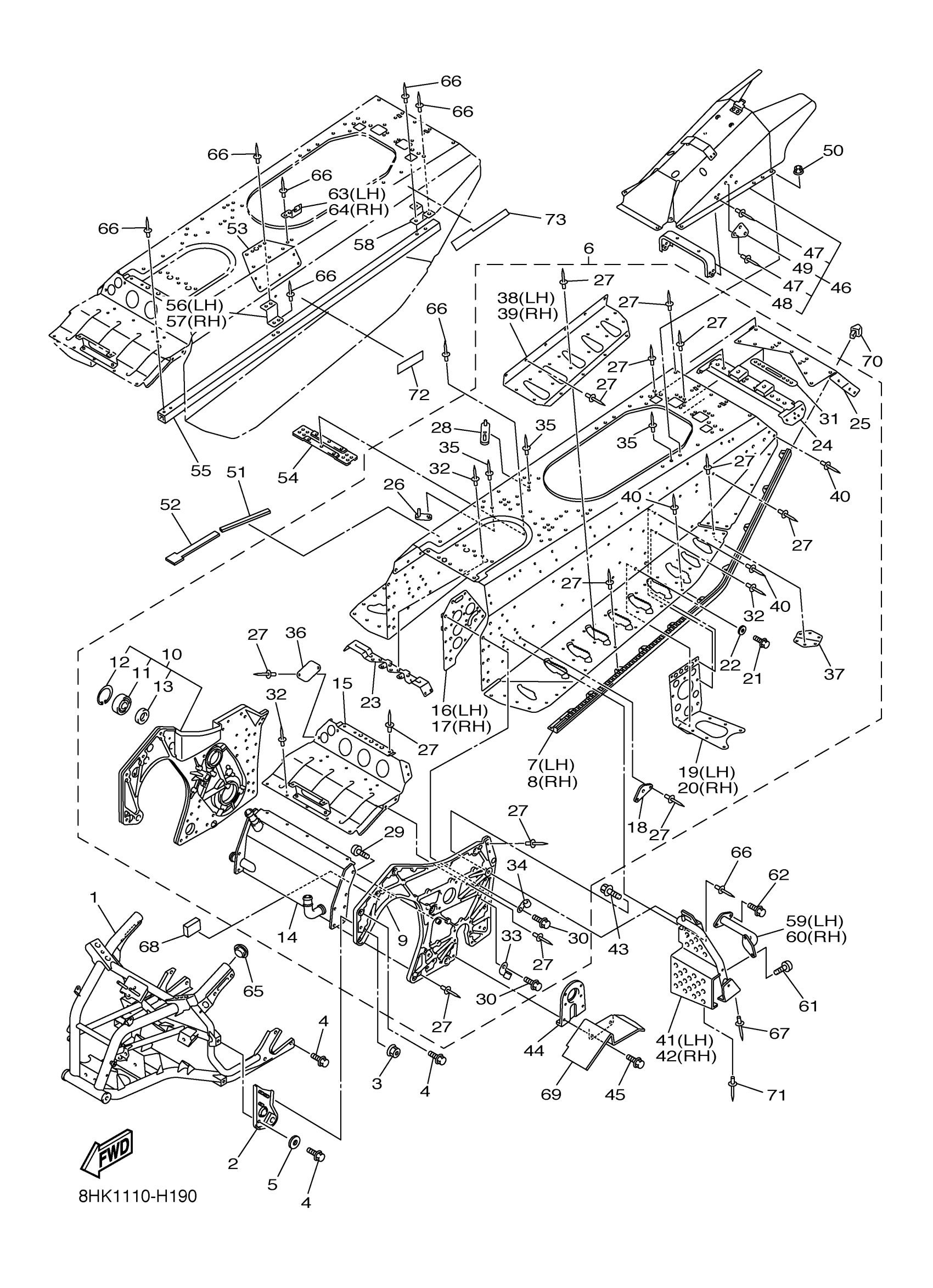

Yamaha FX10RTRSYL (FX NYTRO RTX SE) 8HK1 2009 FRAME Diagram

#

Description
Price

1

FRONT FRAME COMP.

8GL-21940-03-00

$1,292.99

2

BRACKET, ENGINE

8GL-2194E-00-00

Unavailable

3

NUT, SELF-LOCKING (3Y2)

90185-08089-00

$7.31

4

BOLT, FLANGE(JN5)

95817-08016-00

$4.12

5

WASHER, PLATE (4W3)

90201-086A3-00

$6.29

6

REAR FRAME COMP.

8HK-21950-01-00

$7,134.99

7

REINFORCEMENT, FOOTREST 1

8HK-21926-00-00

$225.78

8

REINFORCEMENT, FOOTREST 2

8HK-21936-00-00

Unavailable

9

REINF., HOUSING 1

8GL-21925-00-00

Unavailable

10

HOUSING, REINF SUB-ASSY(R.H)

8GL-21930-00-00

Unavailable

11

BEARING (5X5)

93306-20627-00

$66.08

12

CIRCLIP(MF1)

99009-62500-00

$6.23

13

OIL SEAL

93102-30012-00

$29.09

14

HEAT EXCHANGER ASSY

8GL-12440-00-00

$611.99

15

PANEL, SUB FRAME 4

8GL-21915-00-00

Unavailable

16

BRACKET, MAIN TRACK 1

8GL-21943-00-00

$65.48

17

BRACKET, MAIN TRACK 2

8GL-21953-00-00

Unavailable

18

BRACKET, MAIN TRACK 3

8FU-21919-00-00

$4.65

19

BRACKET, RR.TRACK SUSPENTION 1

8HK-21944-00-00

$143.97

20

BRACKET, RR.TRACK SUSPENTION 2

8HK-21954-00-00

$143.97

21

BOLT, FLANGE

95817-10020-00

$5.10

22

WASHER, PLATE

90201-10035-00

$3.56

23

PROTECTOR, MUFFLER

8GL-2194H-00-00

$65.03

24

BRACKET 7

8GL-2197N-00-00

$103.06

25

REINEFORCEMENT, FRAME REAR 1

8GL-21923-00-00

$95.48

26

BRACKET, FUEL TANK 1

8CR-2194N-00-00

$3.14

27

RIVET, BLIND

90267-47195-00

$3.33

28

BRACKET 8

8GL-22512-00-00

$6.74

29

BOLT, BUTTON HEAD

92012-08016-00

$6.98

30

BOLT, FLANGE

95022-08016-00

$0.55

31

NUT

8GL-21295-00-00

$8.97

32

RIVET, BLIND

90267-48010-00

$2.00

33

CLAMP

90462-08061-00

Unavailable

34

CLAMP

90462-08064-00

Unavailable

35

RIVET, BLIND

90267-48023-00

$8.18

36

PLATE, COVER

8GL-2131D-00-00

$8.71

37

PATCH 1

8HK-21961-00-00

Unavailable

38

PATCH 3

8HK-21963-00-00

Unavailable

39

PATCH 4

8HK-21964-00-00

Unavailable

40

RIVET, BLIND

90267-48016-00

$7.85

41

FOOTREST COMP. 1

8GL-21960-00-00

$201.08

42

FOOTREST COMP. 2

8GL-21970-01-00

Unavailable

43

BOLT, FLANGE

95817-10030-00

$6.17

44

HOUSING, REINF SUB-ASSY(L.H)

8GL-21920-00-00

$23.55

45

BOLT, FLANGE

95812-08020-00

$1.69

46

PANEL, SUB FRAME 5

8GL-21916-00-00

$330.69

47

RIVET, BLIND

90267-47195-00

$3.33

48

STAY, MUFFER

8GL-2194L-00-00

$38.37

49

BRACKET, SEAT FITTING

8GL-21946-00-00

Unavailable

50

NUT, CROWN

90176-06016-00

$3.57

51

SEAL, GUARD

8GL-22151-00-00

Unavailable

52

SEAL, GUARD

8GL-22152-00-00

$4.08

53

PATCH 7

8GL-21967-00-00

$19.11

54

PATCH 8

8GL-21988-00-00

Unavailable

55

PROTECTOR, FRAME

8GL-21978-00-00

$72.46

56

BRACKET, 5

8GL-2196M-00-00

$14.02

57

BRACKET, 6

8GL-2197M-00-00

Unavailable

58

BRACKET, PROTECTOR REAR

8GL-21443-00-00

$7.34

59

BAR, FOOTREST 1

8GL-27471-00-00

$47.06

60

BAR, FOOTREST 2

8GL-27472-00-00

$47.06

61

BOLT, BUTTON HEAD

92012-06014-00

$6.18

62

BOLT, FLANGE

95817-06012-00

$1.49

63

BRACKET, REAR FENDER 1

8GL-21151-00-00

Unavailable

64

BRACKET, REAR FENDER 2

8GL-21152-00-00

Unavailable

65

CAP, REAR ARM

180-22117-00-00

$6.52

66

RIVET, BLIND

90267-47195-00

$3.33

67

RIVET, BLIND

90267-48016-00

$7.85

68

DAMPER

8GL-21852-00-00

$2.25

69

PROTECTOR, FRAME

8GL-2197B-00-00

$60.82

70

PLUG

8FS-2312G-00-00

$17.68

71

RIVET, BLIND

90267-48023-00

$8.18

72

PLATE, EPA OFFROAD 2

8GL-2179D-10-00

$3.25

73

GRAPHIC 1

8GL-2199A-30-00

Unavailable
