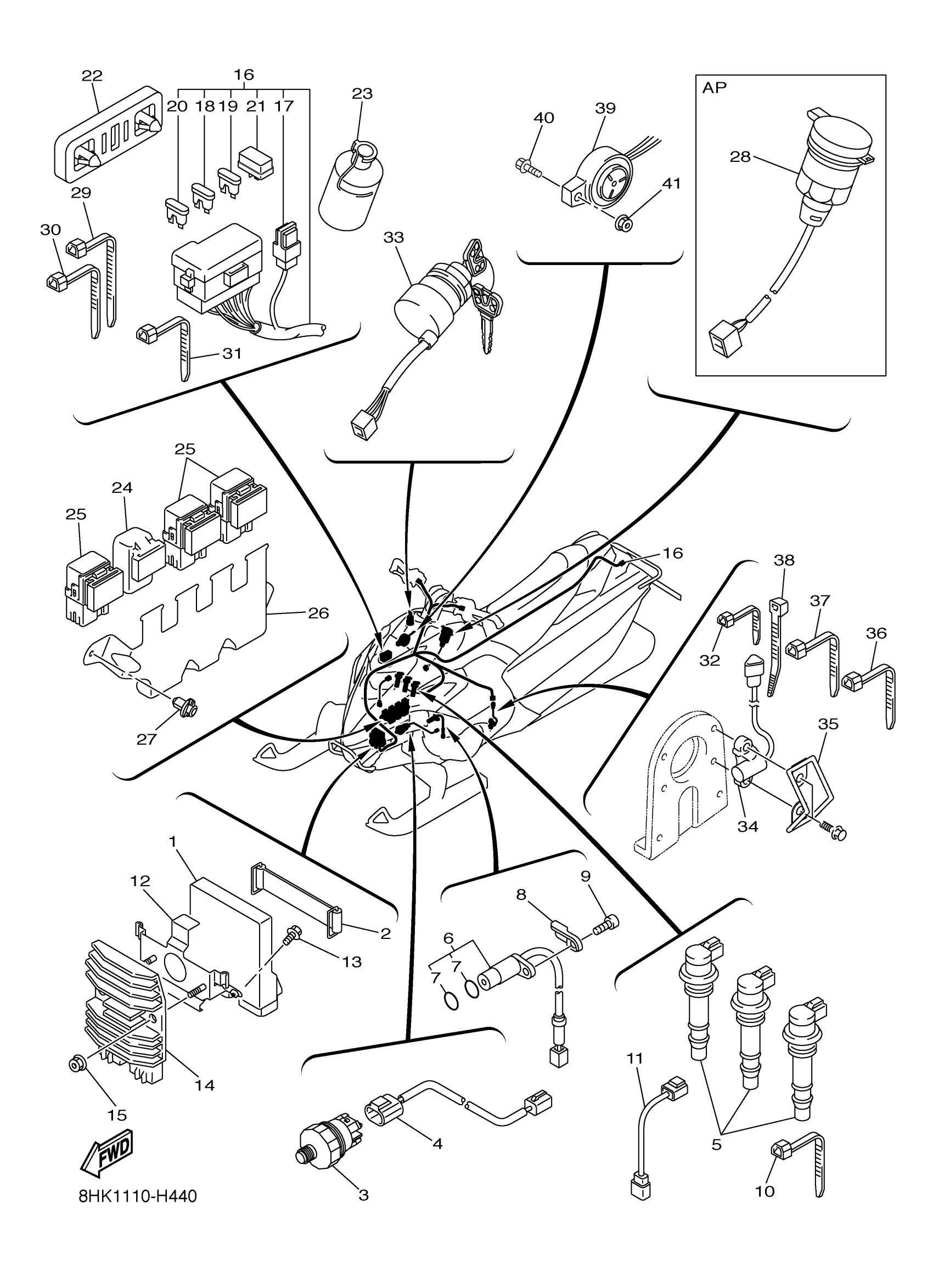

Yamaha FX10RTRSYL (FX NYTRO RTX SE) 8HK1 2009 ELECTRICAL 1 Diagram

#

Description
Price

1

ENGINE CONTROL UNIT ASSY

8GL-8591A-00-00

$1,183.99

2

BAND, BATTERY

2T4-82131-00-00

$7.91

3

OIL PRESSURE SWITCH

8FP-82504-01-00

$57.01

4

WIRE, SUB-LEAD

8GL-82318-00-00

$23.40

5

IGNITION COIL ASSY

8ES-82310-00-00

$137.01

6

PICK-UP ASSY

8GL-81670-01-00

Unavailable

7

O-RING 1

5VY-8A8E1-00-00

$5.93

8

PLATE

5VY-15589-02-00

Unavailable

9

BOLT,SOCKET

91317-06016-00

$1.16

10

CLAMP(4FM)

90464-15195-00

$2.77

11

LEAD WIRE ASSY

8GL-81515-00-00

$29.46

12

BRACKET, UNIT

8GL-85991-00-00

Unavailable

13

BOLT, FLANGE

95022-06010-00

$5.45

14

RECTIFIER & REGULATOR ASSY

1D7-81960-01-00

$277.19

15

NUT, U FLANGE

95604-06200-00

$2.35

16

WIRE HARNESS ASSY

8GL-82590-30-00

Unavailable

17

SLOW BLOW FUSE

JR9-82151-00-00

$9.62

18

. FUSE (10A)

67F-82151-40-00

$6.67

19

FUSE

5JJ-82151-20-00

$6.42

20

. FUSE (3A)

67F-82151-30-00

$4.89

21

DIODE ASSY

4WA-81980-00-00

$25.93

22

BRACKET

8FA-83614-00-00

$4.11

23

COVER

8GL-8252U-00-00

$7.97

24

RELAY ASSY

5DM-81950-01-00

$24.72

25

RELAY ASSY (8FP-01)

8FP-81950-01-00

$33.20

26

HOLDER, RELAY

8GL-81952-00-00

Unavailable

27

RIVET

90269-08006-00

$2.72

28

TERMINAL COMP.

8FP-8254B-00-00

$148.14

29

CLAMP(4FM)

90464-15195-00

$2.77

30

CLAMP(4FM)

90464-15195-00

$2.77

31

CLAMP

90464-13077-00

$6.68

32

BAND, SWITCH CORD

25G-83936-01-00

$4.12

33

MAIN SWITCH ASSY

8GL-82510-00-00

$93.72

34

SENSOR, SPEED

8GL-83755-00-00

$135.42

35

COVER 2

8GC-2198G-00-00

$33.14

36

CLAMP(4FM)

90464-15195-00

$2.77

37

CLAMP(3XW)

90464-35132-00

$6.88

38

CLAMP(4FM)

90464-15195-00

$2.77

39

BUZZER

8GL-83383-00-00

$89.92

40

SCREW, WITH WASHER

90159-05035-00

$6.22

41

NUT, FLANGE

95702-05500-00

$0.74
