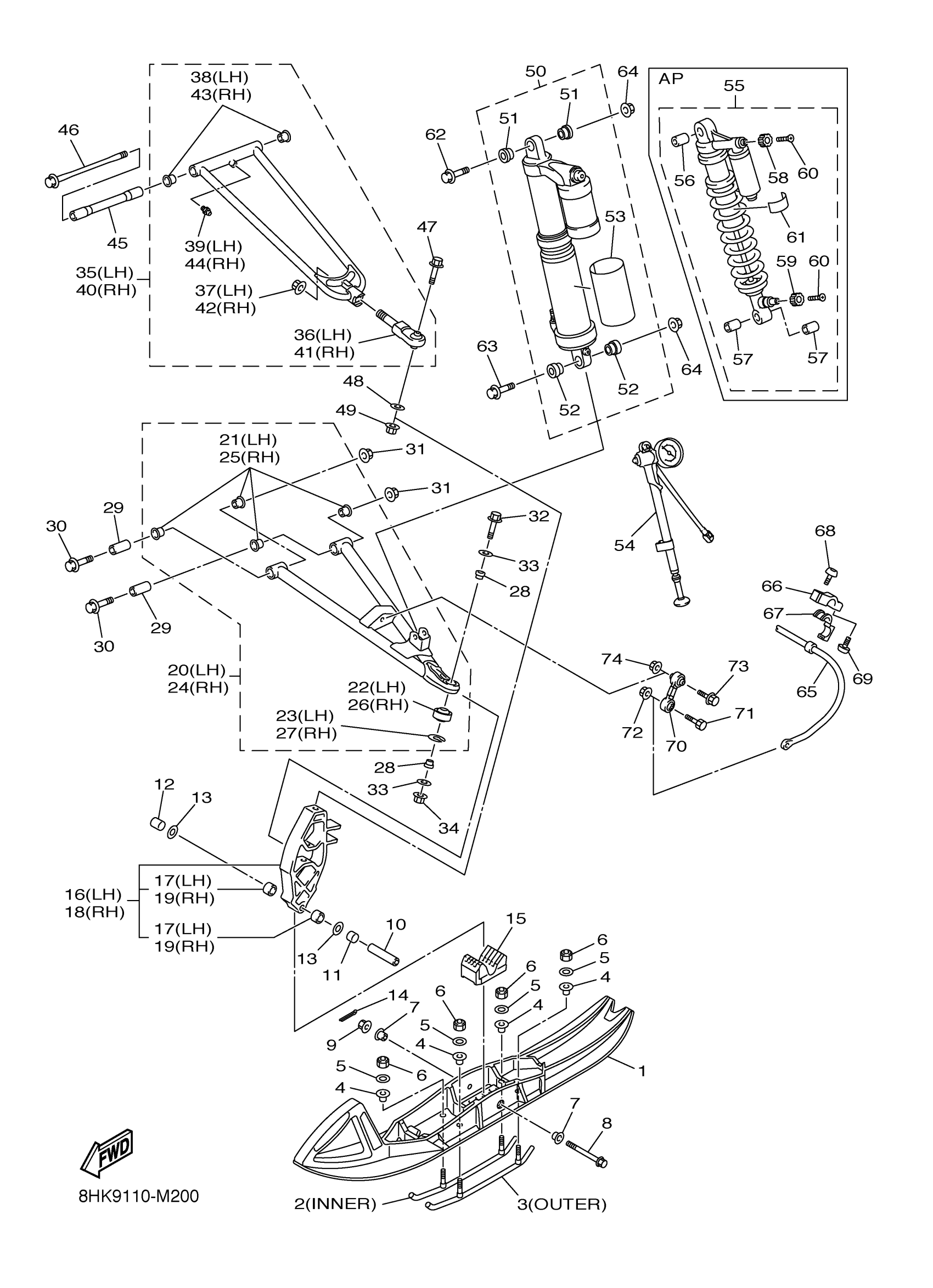

Yamaha FX10RTRSDL (FX NYTRO RTX) 8HK90 2013 SKI Diagram
#
1
DUAL KEEL SKI
SMA-8JHDS-00-00
Unavailable
2
8JH CARBIDE PAIR - 9MM RD 2"
SMA-8JH31-02-00
Unavailable
3
8JH RUNNER SET - NO CARBIDE
SMA-8JH31-01-00
Unavailable
4
COLLAR
90387-08064-00
$8.49
5
WASHER, PLATE
90201-08053-00
$5.60
6
NUT, NYLON
95717-08300-00
$2.70
7
. COLLAR 1
8EX-F3754-00-00
Unavailable
8
BOLT, FLANGE
90105-10070-00
$12.49
9
NUT, S/L FLANGE
95602-10200-00
$4.82
10
COLLAR
90387-1012H-00
$24.99
11
COLLAR
90387-16017-00
$5.60
12
COLLAR
90387-16018-00
$32.99
13
WASHER, PLATE
90201-16022-00
$9.49
14
PIN, COTTER
91490-20025-00
$1.99
15
STOPPER 1
8HL-23743-10-00
$65.99
16
STEERING KNUCKLE ASSY (LEFT)
8HK-23501-10-00
Unavailable
17
BUSH, BIMETAL FORMED
90384-16N51-00
Unavailable
18
STEERING KNUCKLE ASSY (RIGHT)
8HK-23502-10-00
Unavailable
19
BUSH, BIMETAL FORMED
90384-16N51-00
Unavailable
20
FRONT LOWER ARM COMP. (LEFT)
8JH-23570-00-00
Unavailable
21
BUSH, SOLID
90381-18N51-00
Unavailable
22
BALL JOINT 2
8HK-23579-00-00
Unavailable
23
CIRCLIP (IR)(93450-35015 SUPER
99009-35700-00
Unavailable
24
FRONT LOWER ARM COMP. (RIGHT)
8JH-23580-00-00
Unavailable
25
BUSH, SOLID
90381-18N51-00
Unavailable
26
BALL JOINT 2
8HK-23579-00-00
Unavailable
27
CIRCLIP (IR)(93450-35015 SUPER
99009-35700-00
Unavailable
28
COLLAR, 1
8HK-23754-00-00
Unavailable
29
COLLAR
90387-10065-00
Unavailable
30
BOLT, FLANGE
90105-10211-00
Unavailable
31
NUT, S/L FLANGE
95602-10200-00
$4.82
32
BOLT, FLANGE
90105-10318-00
Unavailable
33
WASHER, PLATE
90201-10052-00
Unavailable
34
NUT, S/L FLANGE
95602-10200-00
$4.82
35
FRONT UPPER ARM COMP. (LEFT)
8JH-23540-00-00
Unavailable
36
BALL JOINT 1
8GK-23549-00-00
Unavailable
37
NUT, U FLANGE
95602-14200-00
Unavailable
38
BUSH, SOLID
90381-18N51-00
Unavailable
39
NIPPLE, GREASE
93700-06M03-00
Unavailable
40
FRONT UPPER ARM COMP. (RIGHT)
8JH-23550-00-00
Unavailable
41
BALL JOINT 1
8GK-23549-00-00
Unavailable
42
NUT, U FLANGE
95602-14200-00
Unavailable
43
BUSH, SOLID
90381-18N51-00
Unavailable
44
NIPPLE, GREASE
93700-06M03-00
Unavailable
45
COLLAR 1
8JH-23373-00-00
Unavailable
46
BOLT, FLANGE
90105-10213-00
Unavailable
47
BOLT
91312-10045-00
Unavailable
48
WASHER, PLATE
90201-10052-00
Unavailable
49
NUT, S/L FLANGE
95602-10200-00
$4.82
50
ABSORBER ASSY 1
8HK-F376A-00-00
Unavailable
51
BUSH
8HR-2376B-09-00
Unavailable
52
BUSH
8HR-2376B-19-00
Unavailable
53
LABEL,WARNING
8GT-F2259-00-00
Unavailable
54
FOX AIR PUMP
8FP-23703-FS-00
Unavailable
55
ABSORBER ASSY 1
8GL-2376A-00-00
Unavailable
56
DAMPER, BUSH B
8FA-2331R-00-00
Unavailable
57
BUSH, BIMETAL FORMED
90384-15N51-00
Unavailable
58
. KNOB (COMP)
5EA-22464-00-00
Unavailable
59
KNOB (TEN)
5JW-2319W-00-00
Unavailable
60
SCREW, OVAL HEAD
98680-03008-00
Unavailable
61
LABEL, WARNING
4AA-22259-60-00
Unavailable
62
BOLT, FLANGE
90105-10122-00
Unavailable
63
BOLT, FLANGE
90105-10209-00
Unavailable
64
NUT, S/L FLANGE
95602-10200-00
$4.82
65
BAR, STABILIZER FRONT
8GN-2386E-20-00
Unavailable
66
HOLDER, STABILIZER FRONT
8GL-2386C-00-00
Unavailable
67
BUSH, STABILIZER FRONT
8GN-2386G-20-00
Unavailable
68
BOLT, BUTTON HEAD
92012-08030-00
Unavailable
69
BOLT, BUTTON HEAD
92012-08016-00
Unavailable
70
JOINT, STABILIZER 1
8GN-2385L-10-00
Unavailable
71
BOLT(6TA)
97017-10035-00
Unavailable
72
NUT, S/L FLANGE
95602-10200-00
$4.82
73
BOLT, FLANGE
95817-08040-00
Unavailable
74
NUT, SELF-LOCKING
95602-08200-00
Unavailable
