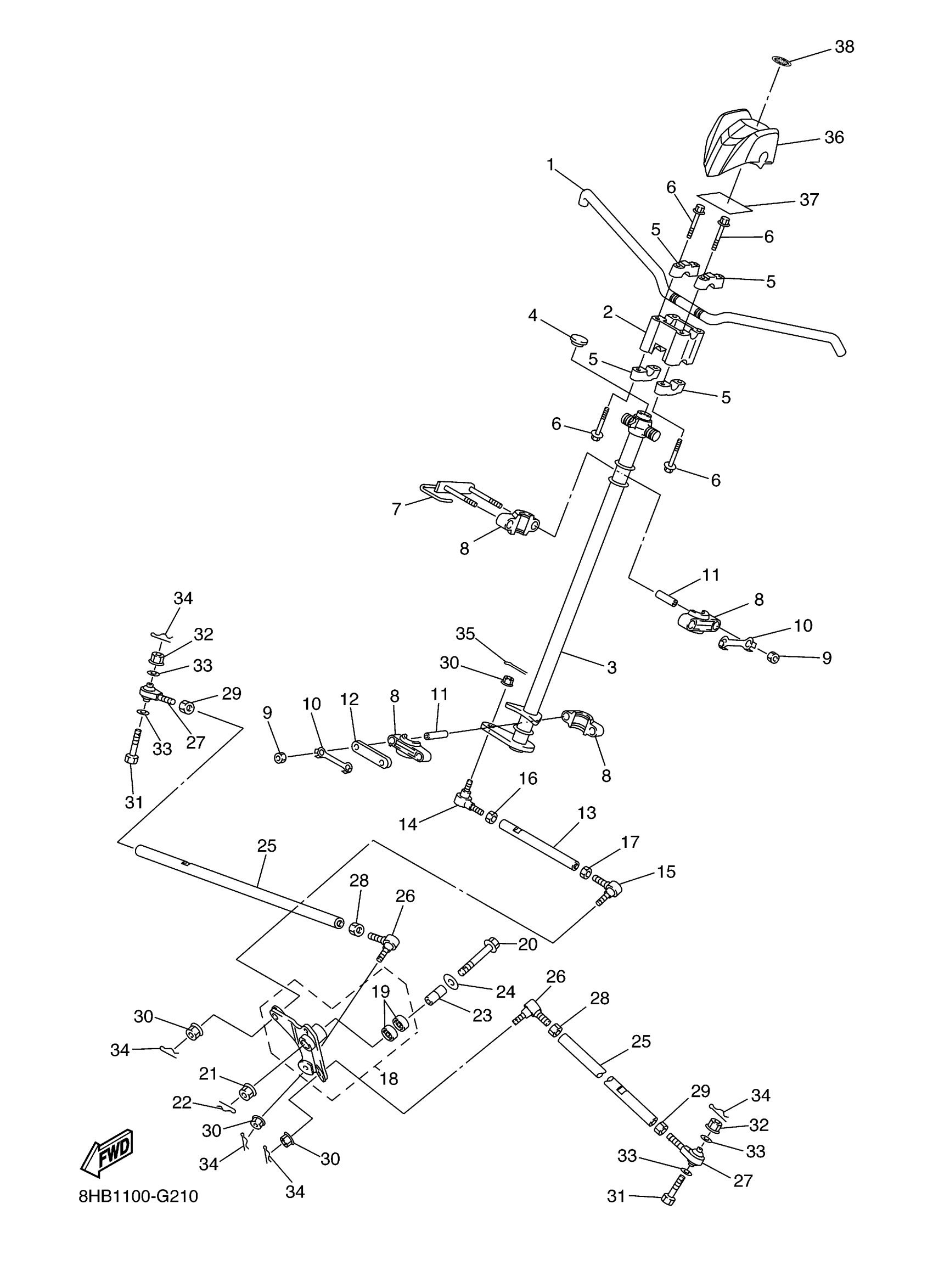

Yamaha FX10RTRSBL (FX NYTRO RTX) 8HK70 2012 STEERING Diagram

#

Description
Price

1

HANDLEBAR

8HB-26111-00-00

Unavailable

2

JOINT

8HB-2381B-00-00

Unavailable

3

COLUMN, STEERING 2

8HB-23813-00-00

$246.23

4

PLUG (7Y6)

90338-21145-00

$11.52

5

HOLDER, HANDLE UPPER

1E6-23441-00-00

$20.90

6

BOLT, FLANGE

95817-08035-00

$6.22

7

HOLDER, BEARING

8GL-23872-00-00

Unavailable

8

PLANE BEARING, STEERING

8FA-23812-00-00

$5.28

9

NUT(6L2)

95333-08600-00

$2.98

10

WASHER, LOCK 1

1UY-23894-01-00

$6.39

11

COLLAR

8HF-2412G-00-00

Unavailable

12

HOLDER 2

8FA-23867-00-00

Unavailable

13

ROD, STEERING RELAY

8GL-23821-00-00

Unavailable

14

JOINT, UNIVERSAL 2

8CR-23845-10-00

$50.67

15

JOINT, UNIVERSAL 3

8CR-23847-00-00

$46.23

16

NUT (682)

95380-10700-00

$5.27

17

NUT, HEXAGON (8A5)

90170-10186-00

Unavailable

18

ARM PIVOT ASSY

8GL-2389K-00-00

Unavailable

19

BEARING

93317-420A7-00

Unavailable

20

BOLT, FLANGE

90105-12070-00

Unavailable

21

NUT, SELF-LOCKING

95602-12200-00

Unavailable

22

PIN, COTTER

91490-20035-00

Unavailable

23

COLLAR

8GL-2412G-00-00

Unavailable

24

WASHER, PLATE

90201-13016-00

Unavailable

25

ROD, TIE

8HK-23831-00-00

Unavailable

26

JOINT, UNIVERSAL 2

8CR-23845-10-00

$50.67

27

JOINT, UNIVERSAL 3

8GC-23847-00-00

Unavailable

28

NUT (682)

95380-10700-00

$5.27

29

NUT, HEXAGON (8A5)

90170-10186-00

Unavailable

30

NUT, FLANGE(3BM)

95704-10500-00

Unavailable

31

BOLT

8GC-23493-00-00

Unavailable

32

NUT,FLANGE(J10)

95702-08500-00

Unavailable

33

WASHER, PLATE

90201-06018-00

Unavailable

34

PIN, COTTER (648)

91490-20015-00

Unavailable

35

PIN, COTTER

91490-20025-00

Unavailable

36

PROTECTOR, HANDLEBAR

8GL-26124-00-00

Unavailable

37

DAMPER

8GL-26113-00-00

Unavailable

38

EMBLEM

8AC-2414B-01-00

Unavailable
