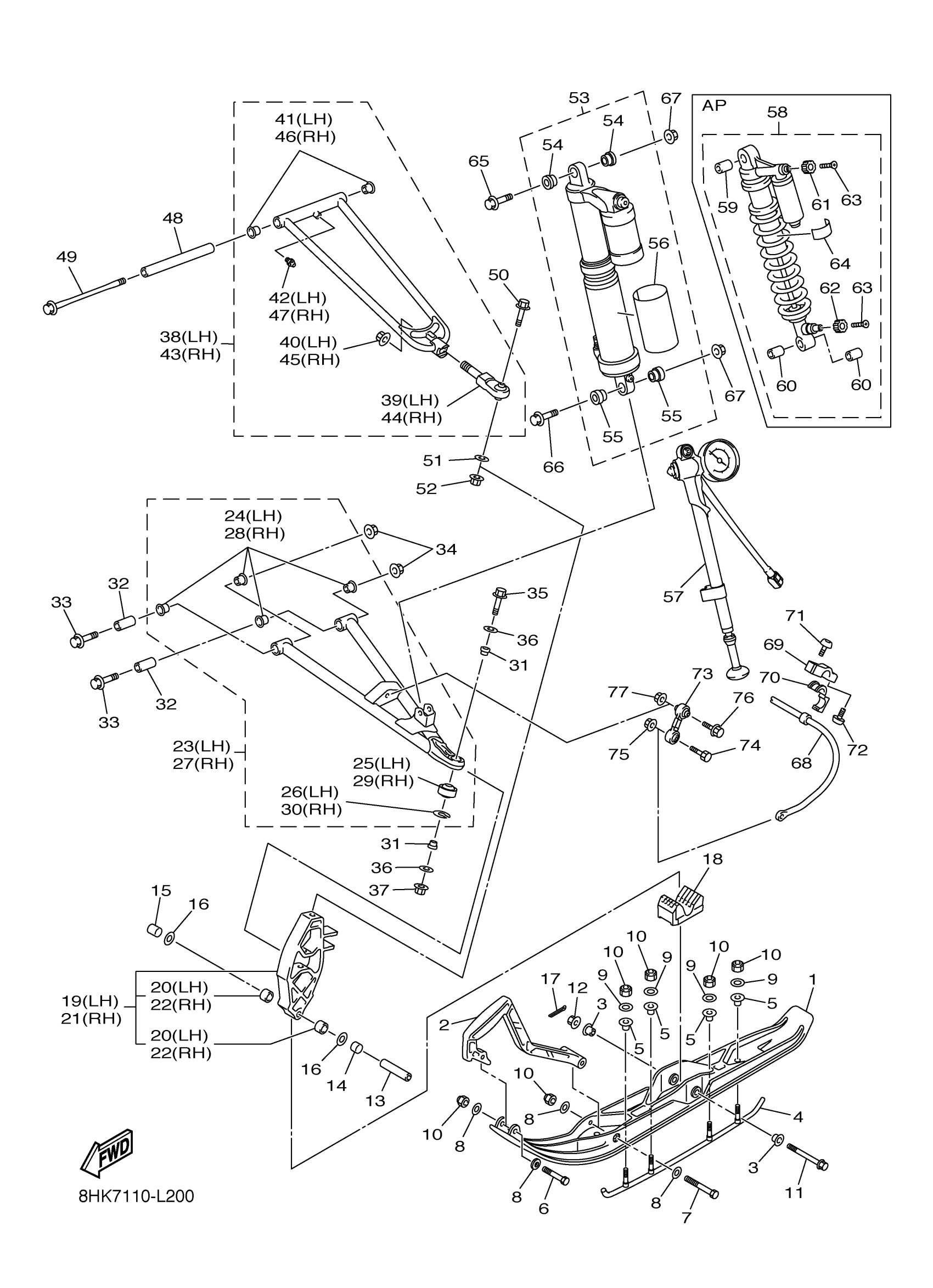

Yamaha FX10RTRSBL (FX NYTRO RTX) 8HK70 2012 SKI Diagram
#
1
SKI 1
8HV-F3711-00-00
Unavailable
2
REINFORCEMENT, HEAD
8HG-23712-20-00
$138.99
3
. COLLAR 1
8EX-F3754-00-00
Unavailable
4
8HG RUNNER (2011 APEX)
SMA-8HG11-00-00
Unavailable
5
BUSH, SKI 1
8EK-F3751-00-00
Unavailable
6
BOLT, HEXAGON
97017-08055-00
$9.49
7
BOLT, REINFORCEMENT HEAD 2
8HG-F3756-10-00
Unavailable
8
WASHER, PLATE (3L7)
90201-08784-00
$3.23
9
WASHER 2
8HG-F3738-00-00
Unavailable
10
NUT, NYLON
95717-08300-00
$2.70
11
BOLT, FLANGE
90105-10070-00
$12.49
12
NUT, S/L FLANGE
95602-10200-00
$4.82
13
COLLAR
90387-1012H-00
$24.99
14
COLLAR
90387-16017-00
$5.60
15
COLLAR
90387-16018-00
$32.99
16
WASHER, PLATE
90201-16022-00
Unavailable
17
PIN, COTTER
91490-20025-00
Unavailable
18
STOPPER 1
8HL-23743-10-00
Unavailable
19
STEERING KNUCKLE ASSY (LEFT)
8HK-23501-00-00
Unavailable
20
BUSH, BIMETAL FORMED
90384-16N51-00
Unavailable
21
STEERING KNUCKLE ASSY (RIGHT)
8HK-23502-00-00
Unavailable
22
BUSH, BIMETAL FORMED
90384-16N51-00
Unavailable
23
FRONT LOWER ARM COMP. (LEFT)
8HK-23570-10-P0
Unavailable
24
BUSH, SOLID
90381-18N51-00
Unavailable
25
BALL JOINT 2
8HK-23579-00-00
Unavailable
26
CIRCLIP (IR)(93450-35015 SUPER
99009-35700-00
Unavailable
27
FRONT LOWER ARM COMP. (RIGHT)
8HK-23580-10-P0
Unavailable
28
BUSH, SOLID
90381-18N51-00
Unavailable
29
BALL JOINT 2
8HK-23579-00-00
Unavailable
30
CIRCLIP (IR)(93450-35015 SUPER
99009-35700-00
Unavailable
31
COLLAR, 1
8HK-23754-00-00
Unavailable
32
COLLAR
90387-10065-00
Unavailable
33
BOLT, FLANGE
90105-10211-00
Unavailable
34
NUT, S/L FLANGE
95602-10200-00
$4.82
35
BOLT, FLANGE
90105-10318-00
Unavailable
36
WASHER, PLATE
90201-10052-00
Unavailable
37
NUT, S/L FLANGE
95602-10200-00
$4.82
38
FRONT UPPER ARM COMP. (LEFT)
8HK-23540-10-P0
Unavailable
39
BALL JOINT 1
8GK-23549-00-00
Unavailable
40
NUT, U FLANGE
95602-14200-00
Unavailable
41
BUSH, SOLID
90381-18N51-00
Unavailable
42
NIPPLE, GREASE
93700-06M03-00
Unavailable
43
FRONT UPPER ARM COMP. (RIGHT)
8HK-23550-10-P0
Unavailable
44
BALL JOINT 1
8GK-23549-00-00
Unavailable
45
NUT, U FLANGE
95602-14200-00
Unavailable
46
BUSH, SOLID
90381-18N51-00
Unavailable
47
NIPPLE, GREASE
93700-06M03-00
Unavailable
48
COLLAR 1
8HK-23373-00-00
Unavailable
49
BOLT, FLANGE
90105-10213-00
Unavailable
50
BOLT
91312-10045-00
Unavailable
51
WASHER, PLATE
90201-10052-00
Unavailable
52
NUT, S/L FLANGE
95602-10200-00
$4.82
53
ABSORBER ASSY 1
8HK-F376A-00-00
Unavailable
54
BUSH
8HR-2376B-09-00
Unavailable
55
BUSH
8HR-2376B-19-00
Unavailable
56
LABEL,WARNING
8GT-F2259-00-00
Unavailable
57
FOX AIR PUMP
8FP-23703-FS-00
Unavailable
58
ABSORBER ASSY 1
8GL-2376A-00-00
Unavailable
59
DAMPER, BUSH B
8FA-2331R-00-00
Unavailable
60
BUSH, BIMETAL FORMED
90384-15N51-00
Unavailable
61
. KNOB (COMP)
5EA-22464-00-00
Unavailable
62
KNOB (TEN)
5JW-2319W-00-00
Unavailable
63
SCREW, OVAL HEAD
98680-03008-00
Unavailable
64
LABEL, WARNING
4AA-22259-60-00
Unavailable
65
BOLT, FLANGE
90105-10122-00
Unavailable
66
BOLT, FLANGE
90105-10209-00
Unavailable
67
NUT, S/L FLANGE
95602-10200-00
$4.82
68
BAR, STABILIZER FRONT
8GN-2386E-20-00
Unavailable
69
HOLDER, STABILIZER FRONT
8GL-2386C-00-00
Unavailable
70
BUSH, STABILIZER FRONT
8GN-2386G-20-00
Unavailable
71
BOLT, BUTTON HEAD
92012-08030-00
Unavailable
72
BOLT, BUTTON HEAD
92012-08016-00
Unavailable
73
JOINT, STABILIZER 1
8GN-2385L-10-00
Unavailable
74
BOLT(6TA)
97017-10035-00
Unavailable
75
NUT, S/L FLANGE
95602-10200-00
$4.82
76
BOLT, FLANGE
95817-08040-00
Unavailable
77
NUT, SELF-LOCKING
95602-08200-00
Unavailable
