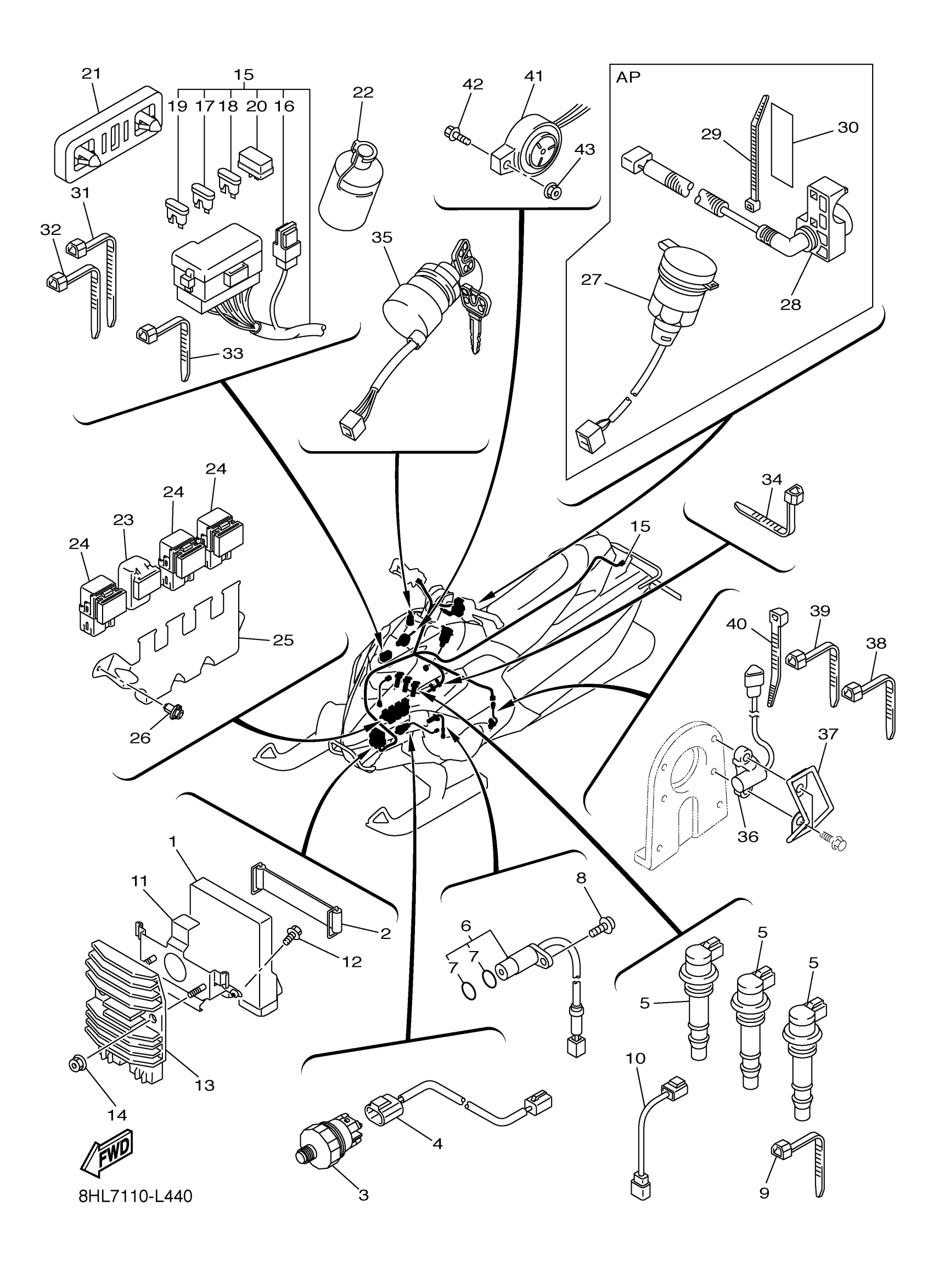

Yamaha FX10RTRSBL (FX NYTRO RTX) 8HK70 2012 ELECTRICAL 1 Diagram

ENGINE CONTROL UNIT ASSY

8GL-8591A-10-00

Unavailable

BAND, BATTERY

2T4-82131-00-00

$8.99

OIL PRESSURE SWITCH

8FP-82504-01-00

$71.99

WIRE, SUB-LEAD

8GL-82318-00-00

$26.99

IGNITION COIL ASSY

8ES-82310-00-00

$159.99

PICK-UP ASSY

8GL-81670-01-00

$140.99

O-RING 1

5VY-8A8E1-00-00

$6.99

BOLT, HEXAGON SOCKET HEAD

90110-06219-00

$7.49

CLAMP(4FM)

90464-15195-00

$4.41

LEAD WIRE ASSY

8GL-81515-00-00

Unavailable

BRACKET, UNIT

8GL-85991-00-00

$23.99

BOLT, FLANGE

95022-06010-00

$5.60

RECTIFIER & REGULATOR ASSY

1D7-81960-01-00

$323.99

NUT, U FLANGE

95604-06200-00

$8.49

WIRE HARNESS ASSY

8HK-82590-20-00

Unavailable

SLOW BLOW FUSE

JR9-82151-00-00

Unavailable

. FUSE (10A)

67F-82151-40-00

Unavailable

FUSE

5JJ-82151-20-00

Unavailable

. FUSE (3A)

67F-82151-30-00

Unavailable

DIODE ASSY

4WA-81980-00-00

Unavailable

BRACKET

8FA-83614-00-00

Unavailable

COVER

8GL-8252U-00-00

Unavailable

RELAY ASSY

5DM-81950-01-00

Unavailable

RELAY ASSY (8HG-10

8HG-81951-10-00

Unavailable

HOLDER, RELAY

8GL-81952-00-00

Unavailable

RIVET

90269-08006-00

Unavailable

TERMINAL COMP.

8FP-8254B-00-00

Unavailable

TERMINAL COMP.

8HK-8254B-00-00

Unavailable

CLAMP(3XW)

90464-35132-00

Unavailable

DAMPER

8HF-84527-00-00

Unavailable

CLAMP(4FM)

90464-15195-00

$4.41

CLAMP(4FM)

90464-15195-00

$4.41

CLAMP

90464-13077-00

Unavailable

BAND, SWITCH CORD

25G-83936-01-00

Unavailable

MAIN SWITCH ASSY

8HK-82510-00-00

Unavailable

SENSOR, SPEED

8GL-83755-00-00

Unavailable

COVER 2

8GC-2198G-00-00

Unavailable

CLAMP(4FM)

90464-15195-00

$4.41

CLAMP(3XW)

90464-35132-00

Unavailable

CLAMP(4FM)

90464-15195-00

$4.41

BUZZER

8GL-83383-00-00

Unavailable

SCREW, WITH WASHER

90159-05035-00

Unavailable

NUT, FLANGE

95702-05500-00

Unavailable
