- FX10RTRSAL (FX NYTRO RTX) 8HK50 2011
TRACK SUSPENSION 1

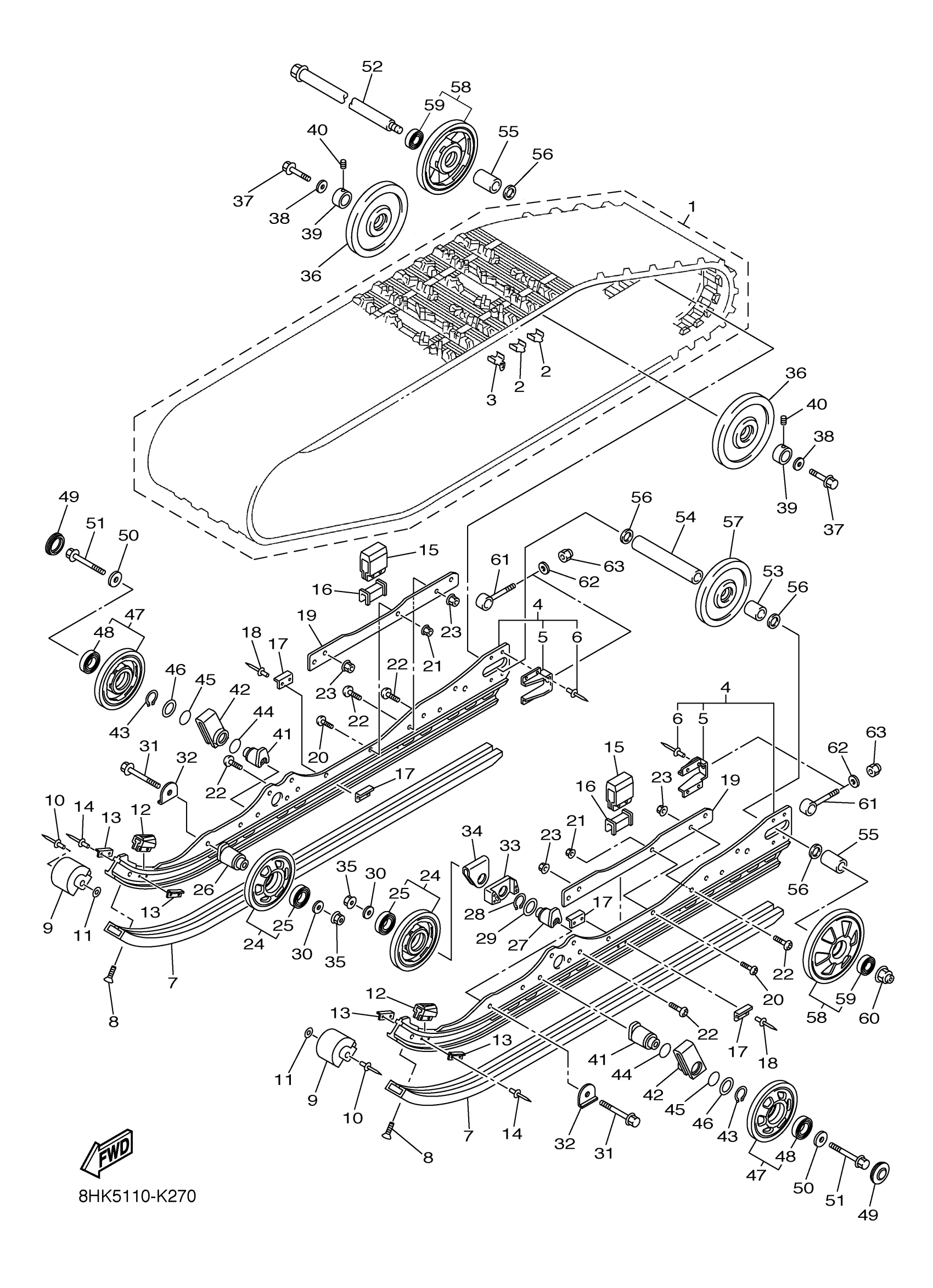

Yamaha FX10RTRSAL (FX NYTRO RTX) 8HK50 2011 TRACK SUSPENSION 1 Diagram
#
1
TRACK ASSY
8FA-47110-10-00
Unavailable
2
PLATE, REINFORCEMENT
8HR-47113-09-00
$17.99
3
METAL, SLIDE
8FA-47115-09-00
Unavailable
4
FRAME, SLIDING
8HK-W4741-10-00
Unavailable
5
BRACKET
8DM-4741B-00-00
$45.99
6
RIVET
8V0-47468-00-00
$10.49
7
SLIDE RUNNER BLK 136''
SMA-8FT92-00-BK
Unavailable
8
SCREW, CROSSRECESS (8G6)
90151-06005-00
$9.49
9
RUNNER, SLIDING 2
8GL-47422-00-00
$30.99
10
RIVET BLIND
90267-48194-00
$3.28
11
WASHER, PLATE(8CM)
90201-047R8-00
$3.02
12
DAMPER 1
8ES-47456-00-00
$6.99
13
PLATE, DAMPER
8K2-47458-01-00
$4.77
14
RIVET, BLIND
90267-48199-00
$3.76
15
DAMPER 2
8GL-47457-00-00
Unavailable
16
SPACER
8HK-47573-00-00
Unavailable
17
PLATE, DAMPER
8AX-47458-00-00
Unavailable
18
RIVET, BLIND
90267-48199-00
$3.76
19
FRAME, SLIDING C
8HK-4741C-00-00
Unavailable
20
BOLT, BUTTON HEAD
92012-08025-00
Unavailable
21
NUT, SELF-LOCKING
95602-08200-00
Unavailable
22
BOLT, BUTTON HEAD
92012-10025-00
Unavailable
23
NUT, S/L FLANGE
95602-10200-00
Unavailable
24
WHEEL BLK 130MM
SMA-8FP38-01-BK
Unavailable
25
BRG,R-B 6005 47MM 85G KY
93306-00507-00
Unavailable
26
BRACKET 7
8ES-47419-00-00
Unavailable
27
BRACKET 7
8ES-47419-10-00
Unavailable
28
CIRCLIP(6U2)
93410-35M10-00
Unavailable
29
WASHER, PLATE
90201-35013-00
Unavailable
30
WASHER, PLATE
90201-101U2-00
Unavailable
31
BOLT, FLANGE
90105-10233-00
Unavailable
32
WASHER, CLAW
90214-10003-00
Unavailable
33
BRACKET 6
8HB-47464-00-00
Unavailable
34
HOOK 1
8HB-47446-00-00
Unavailable
35
NUT, S/L FLANGE
95602-10200-00
Unavailable
36
GUIDE WHEEL ASSY
8CR-47550-00-00
Unavailable
37
BOLT
90109-10032-00
Unavailable
38
WASHER, PLATE
90201-10064-00
Unavailable
39
COLLAR 1
8FS-47365-00-00
Unavailable
40
BOLT, SET (8K2)
90113-06039-00
Unavailable
41
BRACKET 7
8ES-47419-10-00
Unavailable
42
HOOK 1
8ES-47446-00-00
Unavailable
43
CIRCLIP(6U2)
93410-35M10-00
Unavailable
44
O-RING (16G)
93210-35537-00
Unavailable
45
O-RING (21A)
93210-34633-00
Unavailable
46
WASHER, PLATE
90201-35013-00
Unavailable
47
WHEEL BLK 130MM
SMA-8FP38-01-BK
Unavailable
48
BRG,R-B 6005 47MM 85G KY
93306-00507-00
Unavailable
49
CAP, WHEEL
8HF-47317-00-00
Unavailable
50
WASHER, PLATE
90201-101U2-00
Unavailable
51
BOLT, FLANGE
90105-10233-00
Unavailable
52
REAR AXLE COMP.
8L8-47520-10-00
Unavailable
53
COLLAR
90387-20015-00
Unavailable
54
COLLAR
90387-20016-00
Unavailable
55
COLLAR
90387-20019-00
Unavailable
56
WASHER, PLATE
90201-20022-00
Unavailable
57
GUIDE WHEEL ASSY
8CR-47550-10-00
Unavailable
58
REAR WHEEL BLK 178MM
SMA-8FP38-02-BK
Unavailable
59
BEARING(8AB)
93306-00444-00
Unavailable
60
NUT, U FLANGE
95602-14200-00
Unavailable
61
COLLAR 3
8DM-47479-00-00
Unavailable
62
WASHER, PLATE
92990-10600-00
Unavailable
63
NUT, NYLON
95707-10300-00
Unavailable
