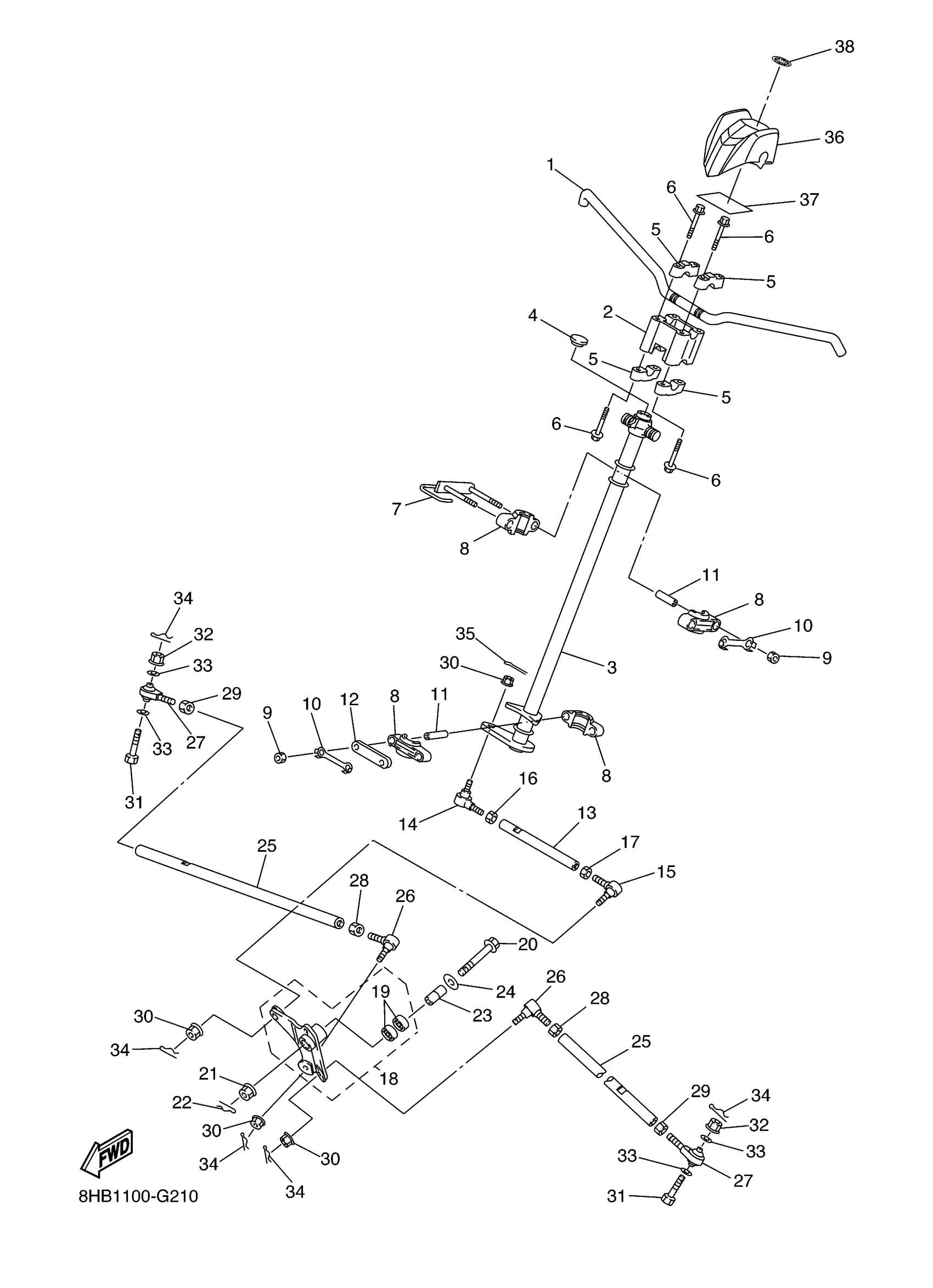

Yamaha FX10RTRSAL (FX NYTRO RTX) 8HK50 2011 STEERING Diagram
#
1
HANDLEBAR
8HB-26111-00-00
Unavailable
2
JOINT
8HB-2381B-00-00
Unavailable
3
COLUMN, STEERING 2
8HB-23813-00-00
$259.99
4
PLUG (7Y6)
90338-21145-00
$14.99
5
HOLDER, HANDLE UPPER
1E6-23441-00-00
$27.99
6
BOLT, FLANGE
95817-08035-00
$9.49
7
HOLDER, BEARING
8GL-23872-00-00
Unavailable
8
PLANE BEARING, STEERING
8FA-23812-00-00
$6.99
9
NUT(6L2)
95333-08600-00
$2.49
10
WASHER, LOCK 1
1UY-23894-01-00
$7.99
11
COLLAR
8HF-2412G-00-00
Unavailable
12
HOLDER 2
8FA-23867-00-00
Unavailable
13
ROD, STEERING RELAY
8GL-23821-00-00
Unavailable
14
JOINT, UNIVERSAL 2
8CR-23845-10-00
$62.99
15
JOINT, UNIVERSAL 3
8CR-23847-00-00
$58.99
16
NUT (682)
95380-10700-00
Unavailable
17
NUT, HEXAGON (8A5)
90170-10186-00
Unavailable
18
ARM PIVOT ASSY
8GL-2389K-00-00
Unavailable
19
BEARING
93317-420A7-00
Unavailable
20
BOLT, FLANGE
90105-12070-00
Unavailable
21
NUT, SELF-LOCKING
95602-12200-00
Unavailable
22
PIN, COTTER
91490-20035-00
Unavailable
23
COLLAR
8GL-2412G-00-00
Unavailable
24
WASHER, PLATE
90201-13016-00
Unavailable
25
ROD, TIE
8HK-23831-00-00
Unavailable
26
JOINT, UNIVERSAL 2
8CR-23845-10-00
$62.99
27
JOINT, UNIVERSAL 3
8GC-23847-00-00
Unavailable
28
NUT (682)
95380-10700-00
Unavailable
29
NUT, HEXAGON (8A5)
90170-10186-00
Unavailable
30
NUT, FLANGE(3BM)
95704-10500-00
Unavailable
31
BOLT
8GC-23493-00-00
Unavailable
32
NUT,FLANGE(J10)
95702-08500-00
Unavailable
33
WASHER, PLATE
90201-06018-00
Unavailable
34
PIN, COTTER (648)
91490-20015-00
Unavailable
35
PIN, COTTER
91490-20025-00
Unavailable
36
PROTECTOR, HANDLEBAR
8GL-26124-00-00
Unavailable
37
DAMPER
8GL-26113-00-00
Unavailable
38
EMBLEM
8AC-2414B-01-00
Unavailable
