- FX10RTRSAL (FX NYTRO RTX) 8HK50 2011
CYLINDER HEAD

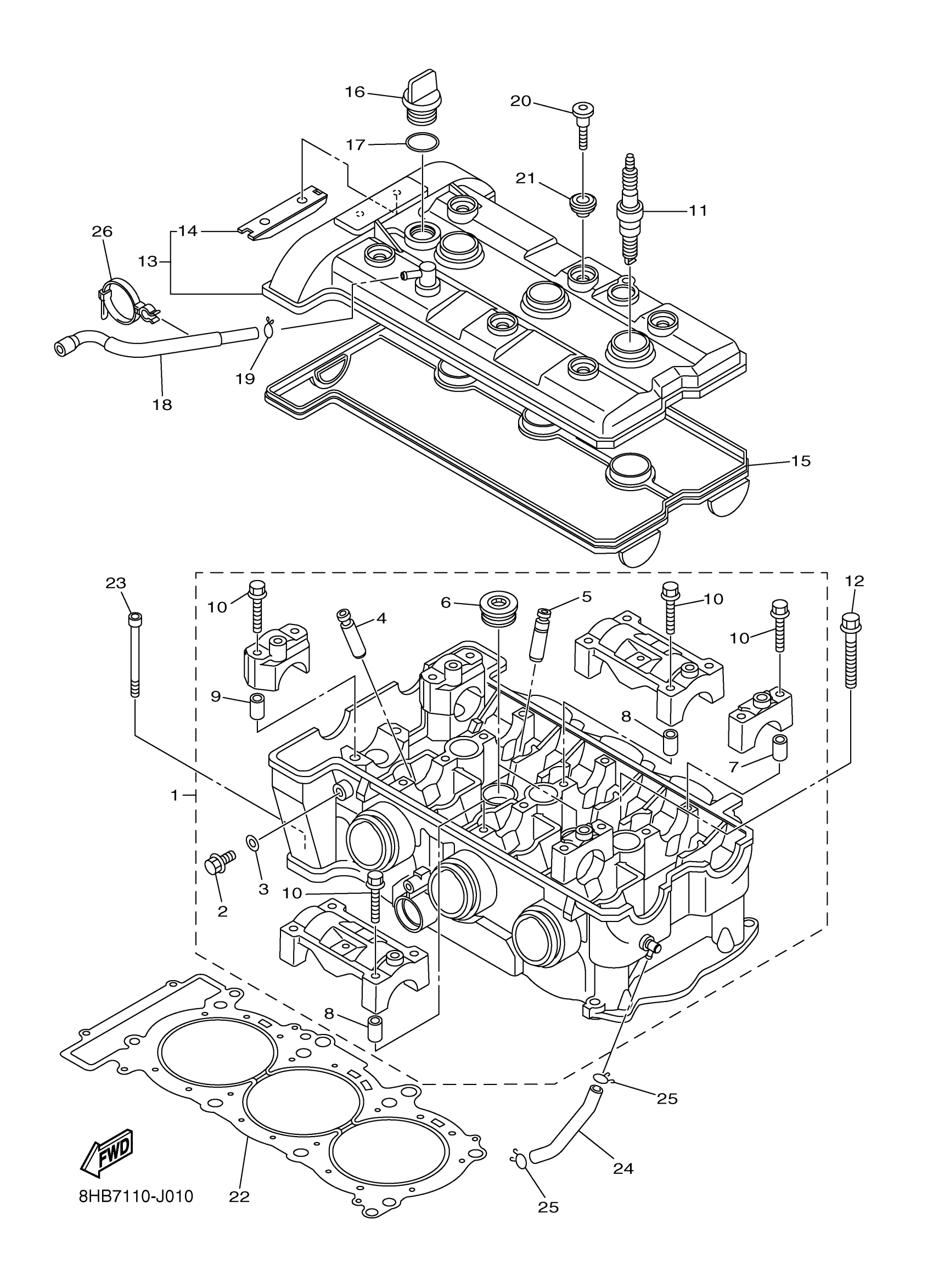

Yamaha FX10RTRSAL (FX NYTRO RTX) 8HK50 2011 CYLINDER HEAD Diagram
#
Description
Price
1
CYLINDER HEAD ASSY
8GL-11101-01-00
Unavailable
2
BOLT, FLANGE
95022-08012-00
$12.49
3
GASKET
90430-08119-00
$6.62
4
GUIDE, VALVE 1
2C0-11133-11-00
$61.99
5
GUIDE, VALVE 2
8HF-11134-10-00
$99.99
6
PLUG, STRAIGHT SCREW
90340-27001-00
$19.99
7
PIN, DOWEL(3XW)
91808-16023-00
$8.49
8
PIN, DOWEL(3XW)
91808-16023-00
$8.49
9
PIN, DOWEL(3XW)
91808-16023-00
$8.49
10
BOLT, WASHER BASED
90105-06027-00
$7.49
11
CR9E NGK SPLUG 4PK
CR9-E0000-00-00
Unavailable
12
BOLT, WITH WASHER
90119-10004-00
$12.49
13
COVER, CYLINDER HEAD 1
8GL-11191-00-00
Unavailable
14
GUIDE, STOPPER 2
5BE-12241-01-00
$29.99
15
GASKET, HEAD COVER 1
8GL-11193-00-00
$40.99
16
PLUG, OIL
3Y1-15363-10-00
Unavailable
17
O-RING (646)
93210-19123-00
Unavailable
18
PIPE, BREATHER 1
8GL-11166-00-00
Unavailable
19
CLIP
90467-100A1-00
Unavailable
20
BOLT(4BP)
90109-066F0-00
Unavailable
21
RUBBER, MOUNT 1
5VY-1111G-00-00
Unavailable
22
GASKET, CYLINDER HEAD 1
8GL-11181-20-00
Unavailable
23
BOLT, SOCKET
91317-06065-00
Unavailable
24
PIPE, OIL 1
8ES-13416-00-00
Unavailable
25
CLIP
90467-100A1-00
Unavailable
26
CLAMP
90464-30005-00
Unavailable
