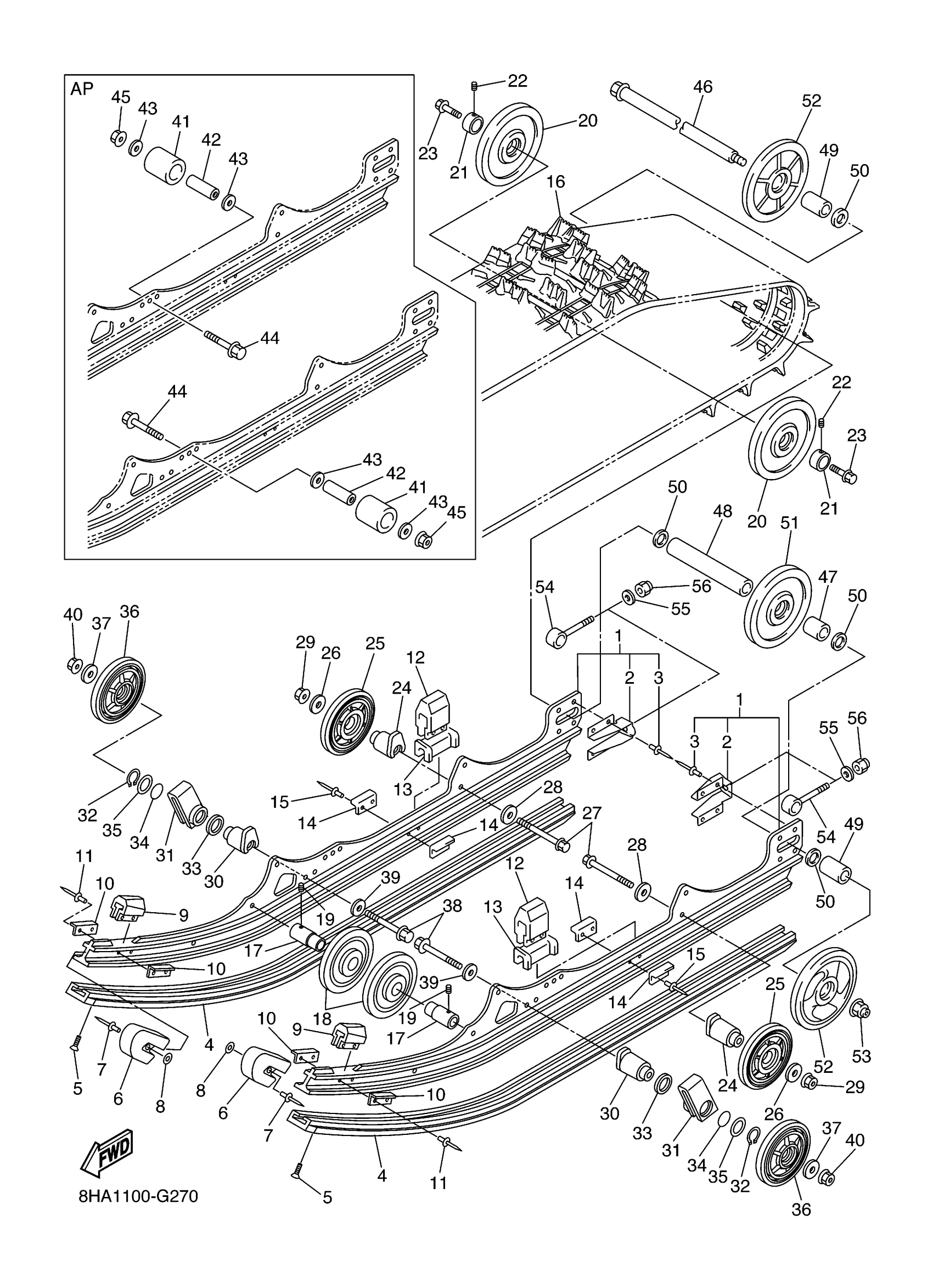

Yamaha FX10MTXL (FX NYTRO MTX (no reverse)) 8HA1 2008 TRACK SUSPENSION 1 Diagram

#

Description
Price

1

FRAME, SLIDING

8HA-W4741-01-00

Unavailable

2

BRACKET

8DM-4741B-00-00

$45.99

3

RIVET

8V0-47468-00-00

$10.49

4

RUNNER, SLIDING 1

8HA-47421-00-00

$114.99

5

SCREW, CROSSRECESS (8G6)

90151-06005-00

$9.49

6

RUNNER, SLIDING 2

8ED-47422-00-00

$46.99

7

RIVET BLIND

90267-48194-00

$3.28

8

WASHER, PLATE(8CM)

90201-047R8-00

$3.02

9

DAMPER 1

8ES-47456-00-00

$6.99

10

PLATE, DAMPER

8K2-47458-01-00

$4.77

11

RIVET, BLIND

90267-48199-00

$3.76

12

DAMPER 2

8CM-47457-00-00

$16.49

13

SPACER

8CM-47341-00-00

$16.49

14

PLATE, DAMPER

8AX-47458-00-00

$10.99

15

RIVET, BLIND

90267-48199-00

$3.76

16

TRACK - MAVERICK 153"

SMA-TRACK-90-25

Unavailable

17

COLLAR

8ES-47319-01-00

Unavailable

18

SUSPENSION WHEEL ASSY

8ET-47310-00-00

Unavailable

19

BOLT, SET (8K2)

90113-06039-00

Unavailable

20

GUIDE WHEEL ASSY

8CR-47550-00-00

Unavailable

21

COLLAR 1

8ES-47365-00-00

Unavailable

22

BOLT, SET (8K2)

90113-06039-00

Unavailable

23

BOLT (8V0)

90109-10771-00

Unavailable

24

BRACKET 7

8ES-47419-00-00

Unavailable

25

SUSPENSION WHEEL ASSY

8FS-47310-01-00

Unavailable

26

WASHER, PLATE(42X)

90201-105H3-00

Unavailable

27

BOLT, FLANGE

95817-10080-00

Unavailable

28

WASHER, PLATE (17K)

90201-106F2-00

Unavailable

29

NUT, SELF-LOCKING(JN5)

95607-10200-00

Unavailable

30

BRACKET 7

8ES-47419-10-00

Unavailable

31

HOOK 1

8ES-47446-00-00

Unavailable

32

CIRCLIP(6U2)

93410-35M10-00

Unavailable

33

O-RING (16G)

93210-35537-00

Unavailable

34

O-RING (21A)

93210-34633-00

Unavailable

35

WASHER, PLATE

90201-35013-00

Unavailable

36

SUSPENSION WHEEL ASSY

8FS-47310-01-00

Unavailable

37

WASHER, PLATE(42X)

90201-105H3-00

Unavailable

38

BOLT, FLANGE

95817-10080-00

Unavailable

39

WASHER, PLATE (17K)

90201-106F2-00

Unavailable

40

NUT, SELF-LOCKING(JN5)

95607-10200-00

Unavailable

41

ROLLER

8ES-47429-00-00

Unavailable

42

COLLAR

90387-10025-00

Unavailable

43

WASHER, PLATE (17K)

90201-106F2-00

Unavailable

44

BOLT, FLANGE

95817-10060-00

Unavailable

45

NUT, SELF-LOCKING(JN5)

95607-10200-00

Unavailable

46

REAR AXLE COMP.

8L8-47520-10-00

Unavailable

47

COLLAR

90387-20015-00

Unavailable

48

COLLAR

90387-20016-00

Unavailable

49

COLLAR

90387-20019-00

Unavailable

50

WASHER, PLATE(89W)

90201-205R6-00

Unavailable

51

GUIDE WHEEL ASSY

8CR-47550-10-00

Unavailable

52

WEIGHT

8EK-47550-11-00

Unavailable

53

NUT, SELF-LOCKING (8BF)

95607-14200-00

Unavailable

54

COLLAR 3

8DM-47479-00-00

Unavailable

55

WASHER, PLATE

92990-10600-00

Unavailable

56

NUT, NYLON

95707-10300-00

Unavailable
