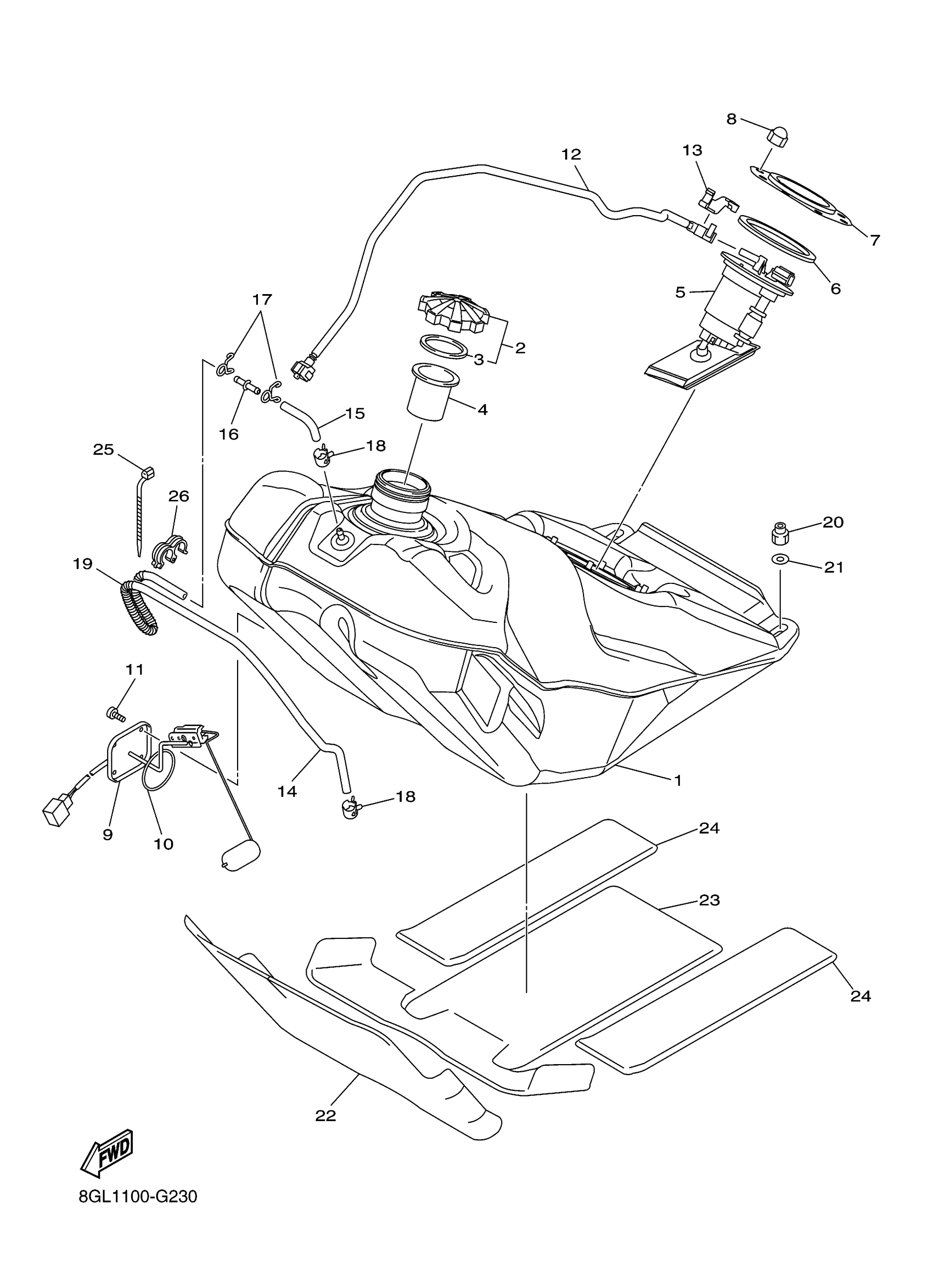

Yamaha FX10MTXL (FX NYTRO MTX (no reverse)) 8HA1 2008 FUEL TANK Diagram
#
Description
Price
1
TANK, FUEL
8GL-24111-00-00
Unavailable
3
GASKET, CAP 1
8HV-24641-00-00
Unavailable
4
TUBE, FILLER
8FP-24114-00-00
Unavailable
5
FUEL PUMP COMP.
8GL-13907-04-00
Unavailable
7
BRACKET, FUEL PUMP
8FP-24491-00-00
Unavailable
12
PIPE, FUEL 1
8GL-24311-01-00
Unavailable
15
PIPE, JOINT
8FR-24461-00-00
Unavailable
16
PIPE, JOINT
8H8-24376-00-00
Unavailable
17
CLIP (8L2)
90467-08017-00
Unavailable
18
CLIP (8A1)
90467-09026-00
Unavailable
19
SPRING, COMPRESSION (10L)
90501-08668-00
Unavailable
20
NUT, NYLON
95717-08300-00
Unavailable
21
WASHER, PLATE (3L7)
90201-08784-00
Unavailable
22
INSULATOR, FUEL TANK 1
8GL-2416F-01-00
Unavailable
23
PROTECTOR, FUEL TANK
8GL-24141-01-00
Unavailable
24
PROTECTOR, FUEL TANK
8GL-24141-10-00
Unavailable
25
CLAMP(4FM)
90464-15195-00
Unavailable
26
CLAMP(4HM)
90464-13194-00
Unavailable
