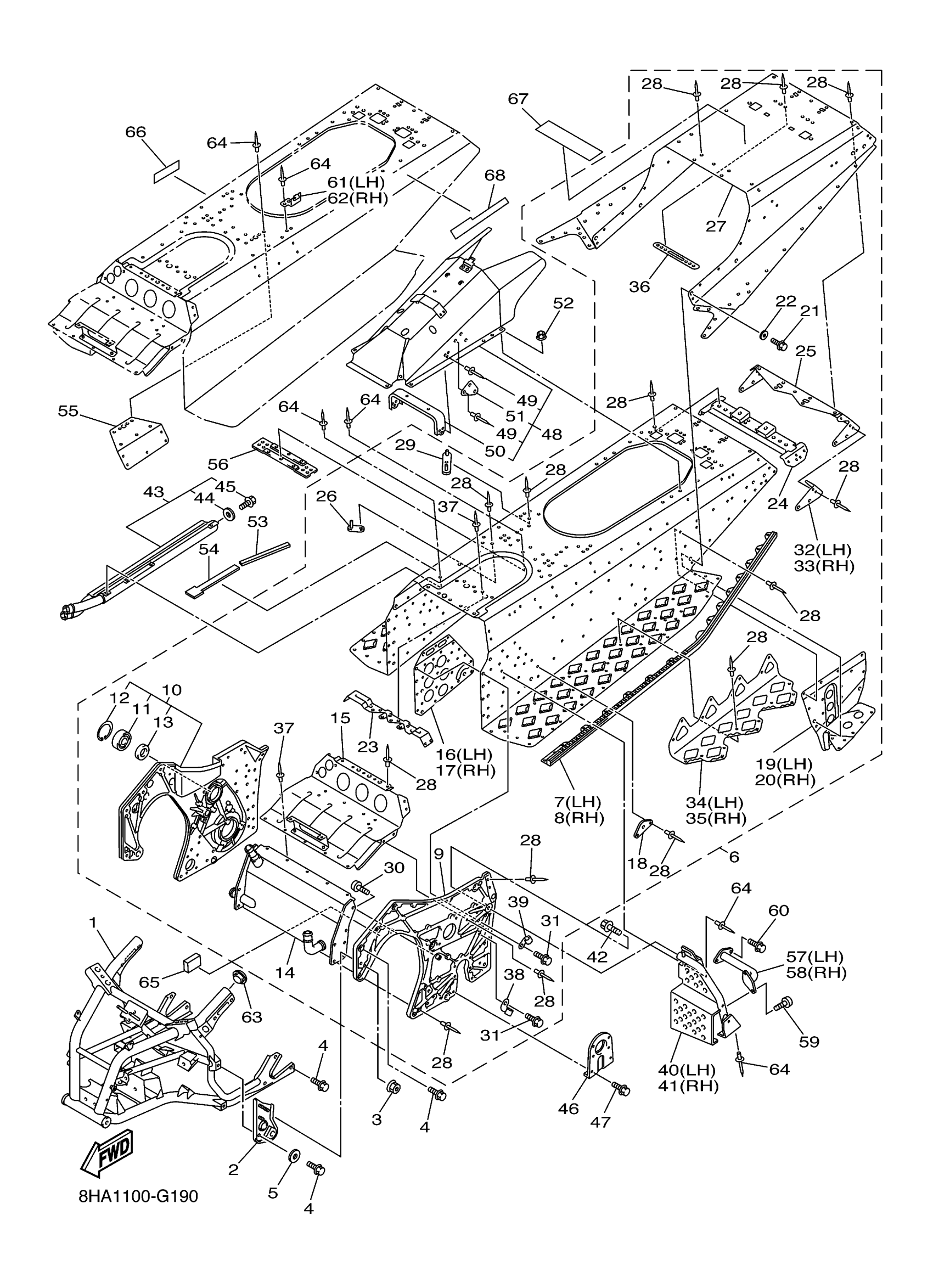

Yamaha FX10MTXL (FX NYTRO MTX (no reverse)) 8HA1 2008 FRAME Diagram
#
1
FRONT FRAME COMP.
8GL-21940-03-00
Unavailable
2
BRACKET, ENGINE
8GL-2194E-00-00
$64.99
3
NUT, SELF-LOCKING (3Y2)
90185-08089-00
$9.49
4
BOLT, FLANGE(JN5)
95817-08016-00
$5.49
5
WASHER, PLATE (4W3)
90201-086A3-00
$8.49
6
REAR FRAME COMP.
8HA-21950-00-00
Unavailable
7
REINFORCEMENT, FOOTREST 1
8HA-21926-01-00
Unavailable
8
REINFORCEMENT, FOOTREST 2
8HA-21936-01-00
$238.99
9
REINF., HOUSING 1
8GL-21925-00-00
$448.99
10
HOUSING, REINF SUB-ASSY(R.H)
8GL-21930-00-00
Unavailable
11
BEARING (5X5)
93306-20627-00
$75.99
12
CIRCLIP(MF1)
99009-62500-00
$8.49
13
OIL SEAL
93102-30012-00
$32.99
14
HEAT EXCHANGER ASSY
8HA-12440-00-00
Unavailable
15
PANEL, SUB FRAME 4
8GL-21915-00-00
$127.99
16
BRACKET, MAIN TRACK 1
8HA-21943-00-00
Unavailable
17
. BRACKET, MAIN TRACK 2
8HA-21953-00-00
Unavailable
18
BRACKET, MAIN TRACK 3
8FU-21919-00-00
Unavailable
19
BRACKET, RR.TRACK SUSPENTION 1
8HA-21944-00-00
Unavailable
20
BRACKET, RR.TRACK SUSPENTION 2
8HA-21954-00-00
Unavailable
21
BOLT, FLANGE
95817-10020-00
Unavailable
22
WASHER, PLATE
90201-10035-00
Unavailable
23
PROTECTOR, MUFFLER
8GL-2194H-00-00
Unavailable
24
BRACKET 7
8GL-2197N-00-00
Unavailable
25
. REINEFORCEMENT, FRAME REAR 1
8HA-21923-00-00
Unavailable
26
BRACKET, FUEL TANK 1
8CR-2194N-00-00
Unavailable
27
. PANEL, SUB FRAME 6
8HA-21917-00-00
Unavailable
28
RIVET, BLIND
90267-47195-00
Unavailable
29
BRACKET 8
8GL-22512-00-00
Unavailable
30
BOLT, BUTTON HEAD
92012-08016-00
Unavailable
31
BOLT, FLANGE
95022-08016-00
Unavailable
32
PATCH 1
8HA-21961-00-00
Unavailable
33
PATCH 2
8HA-21962-00-00
Unavailable
34
REINFORCEMENT, RR. FOOTREST 1
8HB-21927-00-00
Unavailable
35
. REINFORCEMENT, REAR FOOTREST 2
8HB-21937-00-00
Unavailable
36
NUT
8GL-21295-00-00
Unavailable
37
RIVET, BLIND
90267-48010-00
Unavailable
38
CLAMP
90462-08061-00
Unavailable
39
CLAMP
90462-08064-00
Unavailable
40
FOOTREST COMP. 1
8GL-21960-00-00
Unavailable
41
FOOTREST COMP. 2
8GL-21970-01-00
Unavailable
42
BOLT, FLANGE
95817-10030-00
Unavailable
43
HEAT EXCHANGER ASSY 4
8HA-1241A-00-00
Unavailable
44
WASHER, SEAL (7G5)
90210-06006-00
Unavailable
45
BOLT(3JP)
97017-06010-00
Unavailable
46
HOUSING, REINF SUB-ASSY(L.H)
8GL-21920-00-00
Unavailable
47
BOLT, FLANGE
95812-08020-00
Unavailable
48
PANEL, SUB FRAME 5
8GL-21916-00-00
Unavailable
49
RIVET, BLIND
90267-47195-00
Unavailable
50
STAY, MUFFER
8GL-2194L-00-00
Unavailable
51
BRACKET, SEAT FITTING
8GL-21946-00-00
Unavailable
52
NUT, CROWN(1FN)
90176-06055-00
Unavailable
53
SEAL, GUARD
8GL-22151-00-00
Unavailable
54
SEAL, GUARD
8GL-22152-00-00
Unavailable
55
PATCH 7
8GL-21967-00-00
Unavailable
56
PATCH 8
8GL-21988-00-00
Unavailable
57
BAR, FOOTREST 1
8GL-27471-00-00
Unavailable
58
BAR, FOOTREST 2
8GL-27472-00-00
Unavailable
59
BOLT, BUTTON HEAD
92012-06014-00
Unavailable
60
BOLT, FLANGE
95817-06012-00
Unavailable
61
BRACKET, REAR FENDER 1
8GL-21151-00-00
Unavailable
62
BRACKET, REAR FENDER 2
8GL-21152-00-00
Unavailable
63
CAP, REAR ARM
180-22117-00-00
Unavailable
64
RIVET, BLIND
90267-47195-00
Unavailable
65
DAMPER
8GL-21852-00-00
Unavailable
66
PLETE, EPA OFFROAD 2
8GL-2179D-00-00
Unavailable
67
LABEL, WARNING 2
8HA-77762-E0-00
Unavailable
68
GRAPHIC 1
8GL-2199A-00-00
Unavailable
