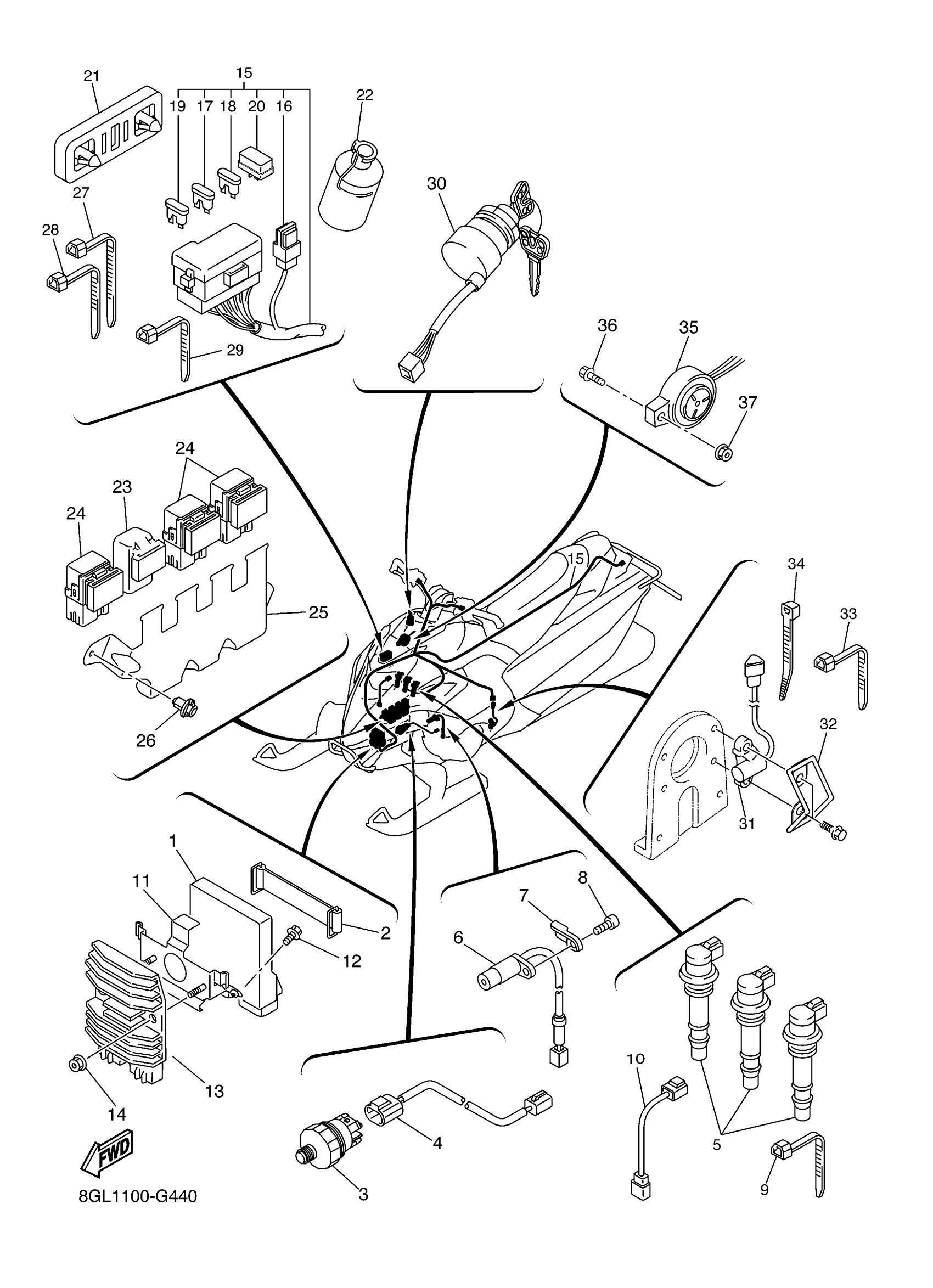

Yamaha FX10MTXL (FX NYTRO MTX (no reverse)) 8HA1 2008 ELECTRICAL 1 Diagram

#

Description
Price

1

ENGINE CONTROL UNIT ASSY

8HA-8591A-00-00

Unavailable

2

BAND, BATTERY

2T4-82131-00-00

$7.40

3

OIL PRESSURE SWITCH

8FP-82504-01-00

$53.34

4

WIRE, SUB-LEAD

8GL-82318-00-00

$23.05

5

IGNITION COIL ASSY

8ES-82310-00-00

$128.18

6

PICK-UP ASSY

8GL-81670-01-00

Unavailable

7

PLATE

5VY-15589-02-00

$4.70

8

BOLT,SOCKET

91317-06016-00

$1.15

9

CLAMP(4FM)

90464-15195-00

$2.57

10

LEAD WIRE ASSY

8GL-81515-00-00

Unavailable

11

BRACKET, UNIT

8GL-85991-00-00

$18.92

12

BOLT, FLANGE

95022-06010-00

$5.08

13

RECTIFIER & REGULATOR ASSY

1D7-81960-01-00

$262.67

14

NUT, U FLANGE

95604-06200-00

$2.19

15

WIRE HARNESS ASSY

8GL-82590-20-00

Unavailable

16

SLOW BLOW FUSE

JR9-82151-00-00

Unavailable

17

. FUSE (10A)

67F-82151-40-00

$6.07

18

FUSE

5JJ-82151-20-00

Unavailable

19

. FUSE (3A)

67F-82151-30-00

$4.69

20

DIODE ASSY

4WA-81980-00-00

Unavailable

21

BRACKET

8FA-83614-00-00

Unavailable

22

COVER

8GL-8252U-00-00

Unavailable

23

RELAY ASSY

5DM-81950-01-00

Unavailable

24

RELAY ASSY (8FP-01)

8FP-81950-01-00

Unavailable

25

HOLDER, RELAY

8GL-81952-00-00

Unavailable

26

RIVET

90269-08006-00

Unavailable

27

CLAMP(4FM)

90464-15195-00

$2.57

28

CLAMP(4FM)

90464-15195-00

$2.57

29

CLAMP

90464-13077-00

Unavailable

30

MAIN SWITCH ASSY

8GL-82510-00-00

Unavailable

31

SENSOR, SPEED

8GL-83755-00-00

Unavailable

32

COVER 2

8GC-2198G-00-00

Unavailable

33

CLAMP(4FM)

90464-15195-00

$2.57

34

CLAMP(3XW)

90464-35132-00

Unavailable

35

BUZZER

8GL-83383-00-00

Unavailable

36

BOLT(3JK)

97027-05020-00

Unavailable

37

NUT, FLANGE

95702-05500-00

Unavailable
