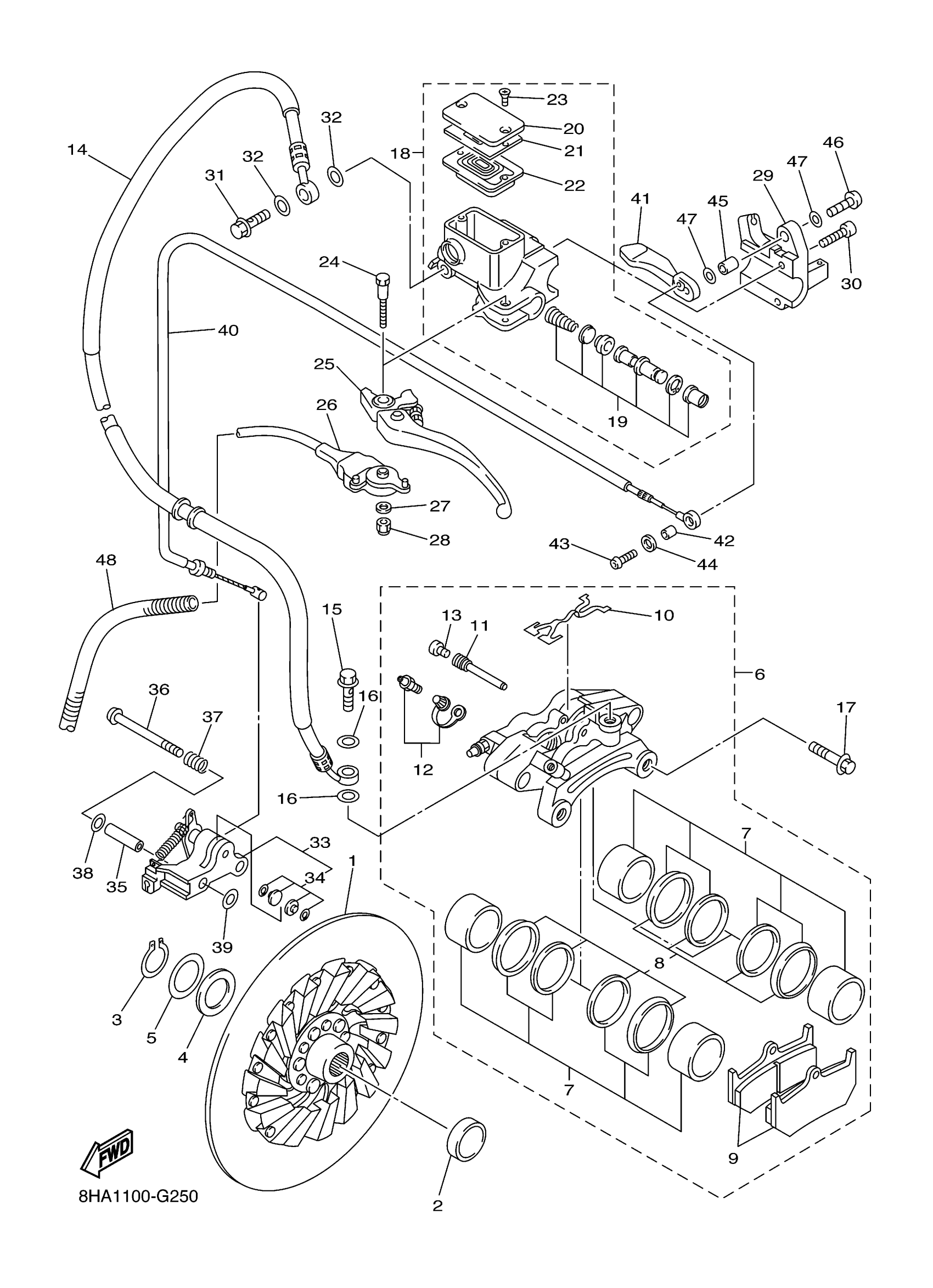

Yamaha FX10MTXL (FX NYTRO MTX (no reverse)) 8HA1 2008 BRAKE Diagram
#
1
DISK BRAKE ASSY
8GL-2581T-00-00
Unavailable
2
COLLAR
90387-25021-00
Unavailable
3
CIRCLIP(1EY)
99009-22400-00
$8.49
4
WASHER, PLATE (8L8)
90201-225A4-00
$9.49
5
WASHER, PLATE (T=0.5)
90201-222F0-00
Unavailable
6
CALIPER ASSY (LEFT)
8GL-2580T-00-00
Unavailable
7
PISTON ASSY, CALIPER
8FU-W0057-00-00
Unavailable
8
CALIPER SEAL KIT
3JD-W0047-10-00
Unavailable
9
BRAKE PAD KIT 2
8FU-W0046-01-00
$64.99
10
SUPPORT, PAD
8FU-25919-00-00
Unavailable
11
PIN, PAD
8FU-25924-00-00
Unavailable
12
BLEED SCREW KIT
8CR-W0048-00-00
$13.49
13
BOLT
8CR-25926-00-00
Unavailable
14
HOSE, BRAKE 1
8HA-25872-00-00
Unavailable
15
BOLT, UNION
90401-10015-00
$11.49
16
WASHER, PLATE(481)
90201-10118-00
Unavailable
17
BOLT, FLANGE
90105-10096-00
Unavailable
18
MASTER CYLINDER SUB ASSY
8FA-W2587-00-00
Unavailable
19
CYLINDER KIT, MASTER
8CR-W0041-00-00
Unavailable
20
CAP, RESERVOIR
8CR-25852-00-00
Unavailable
21
PLATE, DIAPHRAGM
3GM-2585B-20-00
Unavailable
22
DIAPHRAGM, RESERVOIR
55U-25854-00-00
Unavailable
23
SCREW, FLAT
98707-04012-00
Unavailable
24
BOLT, LEVER
8CR-2589F-00-00
Unavailable
25
LEVER 1
8DN-83912-00-00
Unavailable
26
STOP SWITCH ASSY
8HA-82530-00-00
Unavailable
27
WASHER, PLAIN
8CR-8398X-00-00
Unavailable
28
NUT, NYLON
95707-05300-00
Unavailable
29
BRACKET, MASTER CYLINDER
8FA-25867-00-00
Unavailable
30
BOLT
5YU-26332-00-00
Unavailable
31
BOLT, UNION
90401-10015-00
$11.49
32
WASHER, PLATE(481)
90201-10118-00
Unavailable
33
PARKING BRAKE COMP.
8FU-25970-01-00
Unavailable
34
PARKING BRAKE PAD KIT
8FA-W0045-00-00
Unavailable
35
COLLAR
90387-06058-00
Unavailable
36
BOLT
90111-06042-00
Unavailable
37
SPRING, COMPRESSION
90501-120A0-00
Unavailable
38
WASHER 6474553400
90201-12161-00
Unavailable
39
WASHER, PLATE
90201-06095-00
Unavailable
39
WASHER, PLATE
90201-06095-00
Unavailable
39
WASHER, PLATE
90201-06095-00
Unavailable
40
CABLE, BRAKE
8HA-26351-10-00
Unavailable
41
LEVER 2
8FA-83922-00-00
Unavailable
42
COLLAR
90387-06043-00
Unavailable
43
BOLT, BUTTON HEAD
92012-06014-00
Unavailable
44
WASHER, PLATE
90201-06089-00
Unavailable
45
COLLAR
90387-081M9-00
Unavailable
46
BOLT,HEX. SOCKET BUTTON
90111-08054-00
Unavailable
47
WASHER PLATE 141181390000
90201-08085-00
Unavailable
48
TUBE, CORD
8HA-82351-00-00
Unavailable
