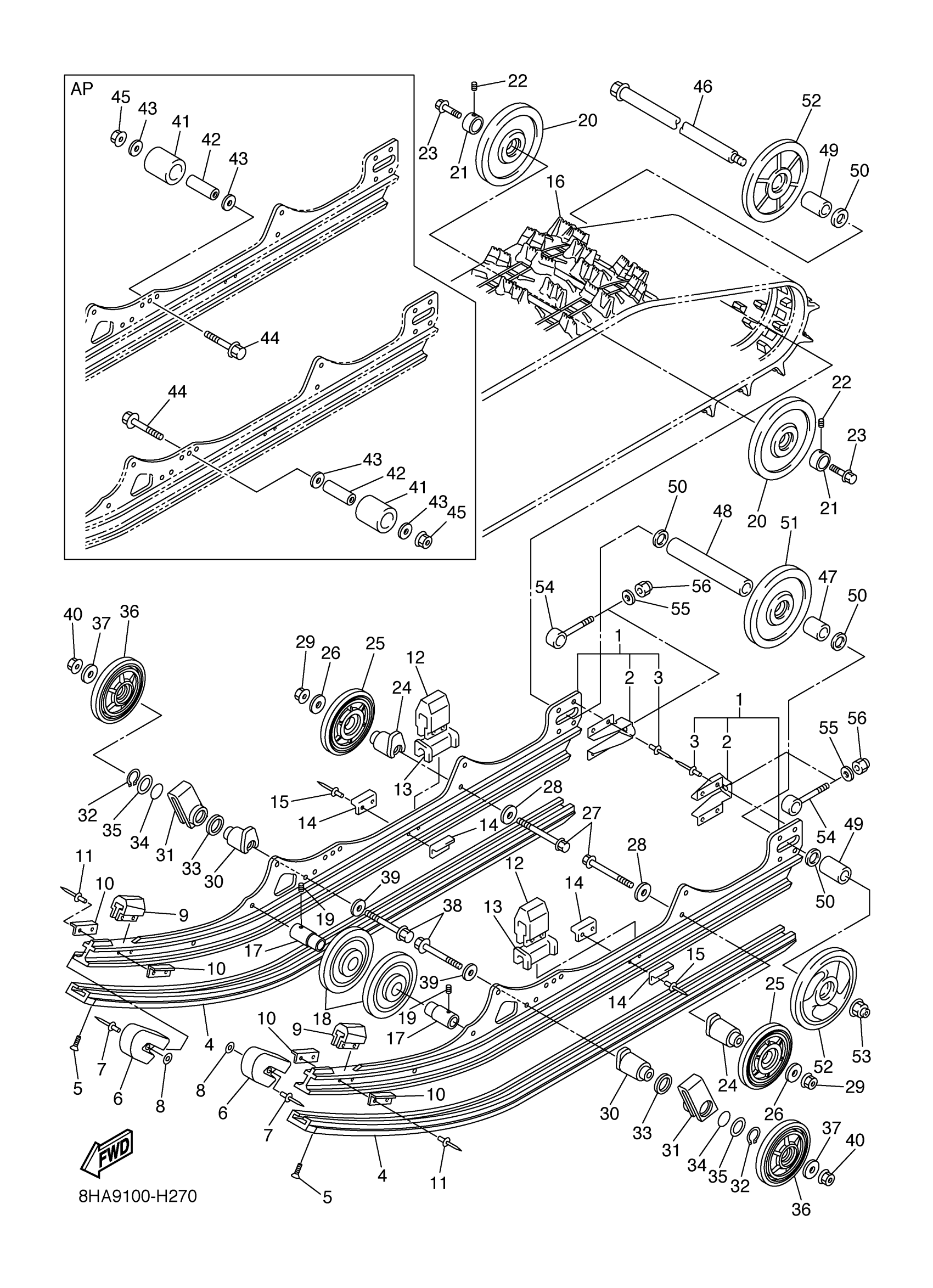

Yamaha FX10MTRYW (FX NYTRO MTX) 8HA90 2009 TRACK SUSPENSION 1 Diagram

#

Description
Price

1

FRAME, SLIDING

8HA-W4741-01-00

Unavailable

2

BRACKET

8DM-4741B-00-00

$39.86

3

RIVET

8V0-47468-00-00

$7.54

4

RUNNER, SLIDING 1

8HA-47421-00-00

$107.80

5

SCREW, CROSSRECESS (8G6)

90151-06005-00

$7.18

6

RUNNER, SLIDING 2

8ED-47422-00-00

$42.54

7

RIVET BLIND

90267-48194-00

$2.20

8

WASHER, PLATE(8CM)

90201-047R8-00

$2.31

9

DAMPER 1

8ES-47456-00-00

$6.28

10

PLATE, DAMPER

8K2-47458-01-00

$2.45

11

RIVET, BLIND

90267-48199-00

$2.62

12

DAMPER 2

8CM-47457-00-00

$8.78

13

SPACER

8CM-47341-00-00

$7.37

14

PLATE, DAMPER

8AX-47458-00-00

$8.08

15

RIVET, BLIND

90267-48199-00

$2.62

16

TRACK - MAVERICK 153"

SMA-TRACK-90-25

Unavailable

17

COLLAR

8ES-47319-01-00

$26.20

18

SUSPENSION WHEEL ASSY

8ET-47310-00-00

$76.81

19

BOLT, SET (8K2)

90113-06039-00

$6.97

20

GUIDE WHEEL ASSY

8CR-47550-00-00

$22.15

21

COLLAR 1

8ES-47365-00-00

$17.40

22

BOLT, SET (8K2)

90113-06039-00

$6.97

23

BOLT (8V0)

90109-10771-00

$5.00

24

BRACKET 7

8ES-47419-00-00

$21.03

25

SUSPENSION WHEEL ASSY

8FS-47310-01-00

$133.42

26

WASHER, PLATE

90201-10038-00

$5.12

27

BOLT, FLANGE

95812-10080-00

$7.18

28

WASHER, PLATE

90201-10052-00

$6.28

29

NUT, S/L FLANGE

95602-10200-00

$2.29

30

BRACKET 7

8ES-47419-10-00

$21.03

31

HOOK 1

8ES-47446-00-00

$16.85

32

CIRCLIP(6U2)

93410-35M10-00

$4.54

33

O-RING (16G)

93210-35537-00

$11.32

34

O-RING (21A)

93210-34633-00

$8.31

35

WASHER, PLATE

90201-35013-00

$3.49

36

SUSPENSION WHEEL ASSY

8FS-47310-01-00

$133.42

37

WASHER, PLATE

90201-10038-00

$5.12

38

BOLT, FLANGE

95812-10080-00

$7.18

39

WASHER, PLATE

90201-10052-00

$6.28

40

NUT, S/L FLANGE

95602-10200-00

$2.29

41

ROLLER

8ES-47429-00-00

$31.77

42

COLLAR

90387-10025-00

$8.85

43

WASHER, PLATE

90201-10052-00

$6.28

44

BOLT, FLANGE

95812-10060-00

$7.00

45

NUT, S/L FLANGE

95602-10200-00

$2.29

46

REAR AXLE COMP.

8L8-47520-10-00

$67.31

47

COLLAR

90387-20015-00

$23.32

48

COLLAR

90387-20016-00

$20.42

49

COLLAR

90387-20019-00

$22.38

50

WASHER, PLATE(89W)

90201-205R6-00

$10.68

51

GUIDE WHEEL ASSY

8CR-47550-10-00

Unavailable

52

WEIGHT

8EK-47550-11-00

Unavailable

53

NUT, U FLANGE

95602-14200-00

$9.89

54

COLLAR 3

8DM-47479-00-00

$15.04

55

WASHER, PLATE

92990-10600-00

$2.61

56

NUT, NYLON

95707-10300-00

$6.68
