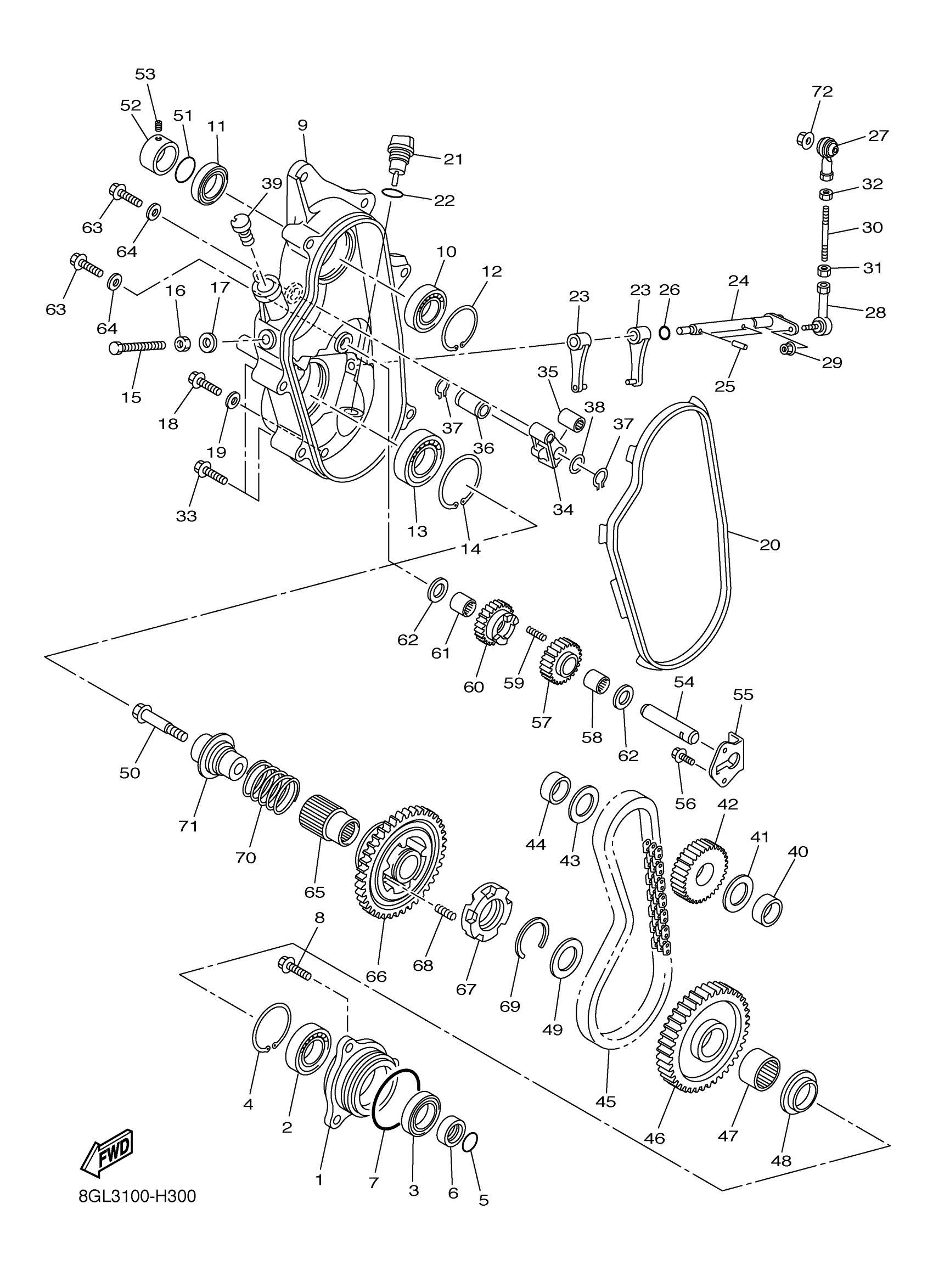

Yamaha FX10MTRYW (FX NYTRO MTX) 8HA90 2009 TRACK DRIVE 2 Diagram

#

Description
Price

1

HOUSING, BEARING 2

8GL-47633-00-00

Unavailable

2

BEARING

93306-205A9-00

$51.25

3

OIL SEAL

93102-35010-00

$19.52

4

CIRCLIP(26H)

99009-52500-00

$10.68

5

O-RING (169)

93210-25071-00

$7.51

6

COLLAR(8CJ)

90387-2508C-00

$39.00

7

O-RING (4H7)

93210-60426-00

$8.63

8

BOLT, FLANGE(4LN)

95817-08025-00

$6.17

9

CAP, HOUSING

8GL-47543-01-00

Unavailable

10

BEARING

93306-20532-00

$56.05

11

OIL SEAL

93102-35473-00

$28.01

12

CIRCLIP(26H)

99009-52500-00

$10.68

13

BEARING

93306-00711-00

$49.06

14

CIRCLIP(MF1)

99009-62500-00

$6.23

15

BOLT, HEXAGON (8F3)

90101-10357-00

Unavailable

16

NUT (682)

95380-10700-00

$5.78

17

WASHER SEAL 256111730200

90210-10004-00

$4.11

18

BOLT, HEXAGON

97017-08016-00

$6.20

19

WASHER, SEAL(8AB)

90210-08017-00

$6.91

20

RING, HOUSING

8GL-47558-01-00

Unavailable

21

PLUG, OIL LEVEL

8GL-15362-00-00

$10.71

22

O-RING (5Y1)

93210-19522-00

$5.86

23

FORK, SHIFT 1

8GL-18511-01-00

$41.30

24

SHAFT

8GL-18197-00-00

$38.43

25

PIN, SPRING(8DA)

91609-50022-00

$6.78

26

O-RING (328)

93210-12131-00

$6.78

27

JOINT 1

8CW-18156-00-00

Unavailable

28

JOINT 2

88T-18157-00-00

$36.11

29

NUT, U FLANGE

95604-06200-00

$2.35

30

ROD, SHIFT

8GL-18115-00-00

$3.14

31

NUT (2H9)

90170-06228-00

$5.20

32

NUT, HEXAGON

95380-06600-00

$4.13

33

BOLT, FLANGE

90105-08179-00

Unavailable

34

HOLDER

8ES-47613-00-00

$41.32

35

BEARING

93311-32685-00

$62.54

36

COLLAR

90387-22005-00

$30.49

37

CIRCLIP

99009-26400-00

$6.94

38

WASHER, PLATE

90201-266P2-00

$2.62

39

PLUG

8GL-47575-00-00

$9.31

40

COLLAR

90387-30011-00

$9.82

41

WASHER, CONICAL SPRING

90208-30001-00

$5.89

42

SPROCKET, CHAIN DRIVE

8FA-17682-00-00

$47.91

43

WASHER, CONICAL SPRING

90208-26002-00

$13.83

44

COLLAR

90387-26007-00

$29.28

45

CHAIN

94890-09068-00

$150.49

46

SPROCKET, CHAIN DRIVEN

8FB-47587-00-00

$175.23

47

BEARING, CYLINDRICAL(8DA)

93317-33179-00

$43.08

48

COLLAR(8DA)

90387-2008G-00

$23.71

49

WASHER, PLATE(8DA)

90201-320S3-00

$7.34

50

BOLT, FLANGE

90105-10369-00

$10.05

51

O-RING (36R)

93210-25642-00

$8.66

52

COLLAR

90387-25018-00

$28.42

53

BOLT, SET

90113-06006-00

$3.60

54

SHAFT, 1

8CW-1761A-00-00

$58.02

55

PLATE

8CW-47591-00-00

$11.85

56

BOLT, FLANGE

95817-06016-00

$1.49

57

SPROCKET, DRIVE

8FB-17692-00-00

$81.86

58

BEARING, CYLINDRICAL(8DA)

93317-21578-00

$37.81

59

SPRING COMPRESSION278185450000

90501-06022-00

$6.17

60

REVERSE GEAR SUB-ASSY 1 (RGEAR

8CW-W1714-00-00

$251.37

61

BEARING, CYLINDRICAL(8DA)

93317-21578-00

$37.81

62

WASHER PLATE (3L6)

90201-16245-00

$8.51

63

BOLT, FLANGE

95817-06016-00

$1.49

64

WASHER, SEAL (7G5)

90210-06006-00

$5.72

65

JOURNAL 1

8CW-47571-00-00

$150.66

66

GEAR, REVERSE WHEEL 1

8CW-17243-00-00

$304.40

67

DOG, TRANSMISSION SHIFT

8CW-17492-00-00

$193.49

68

SPRING, COMPRESSION(8DA)

90501-066J5-00

$1.75

69

CIRCLIP(8DA)

93440-39175-00

$19.00

70

SPRING, COMPRESSION(8FA1)

90501-260A0-00

$4.74

71

COLLAR

8GL-48566-00-00

$75.78

72

NUT, U FLANGE

95604-06200-00

$2.35
