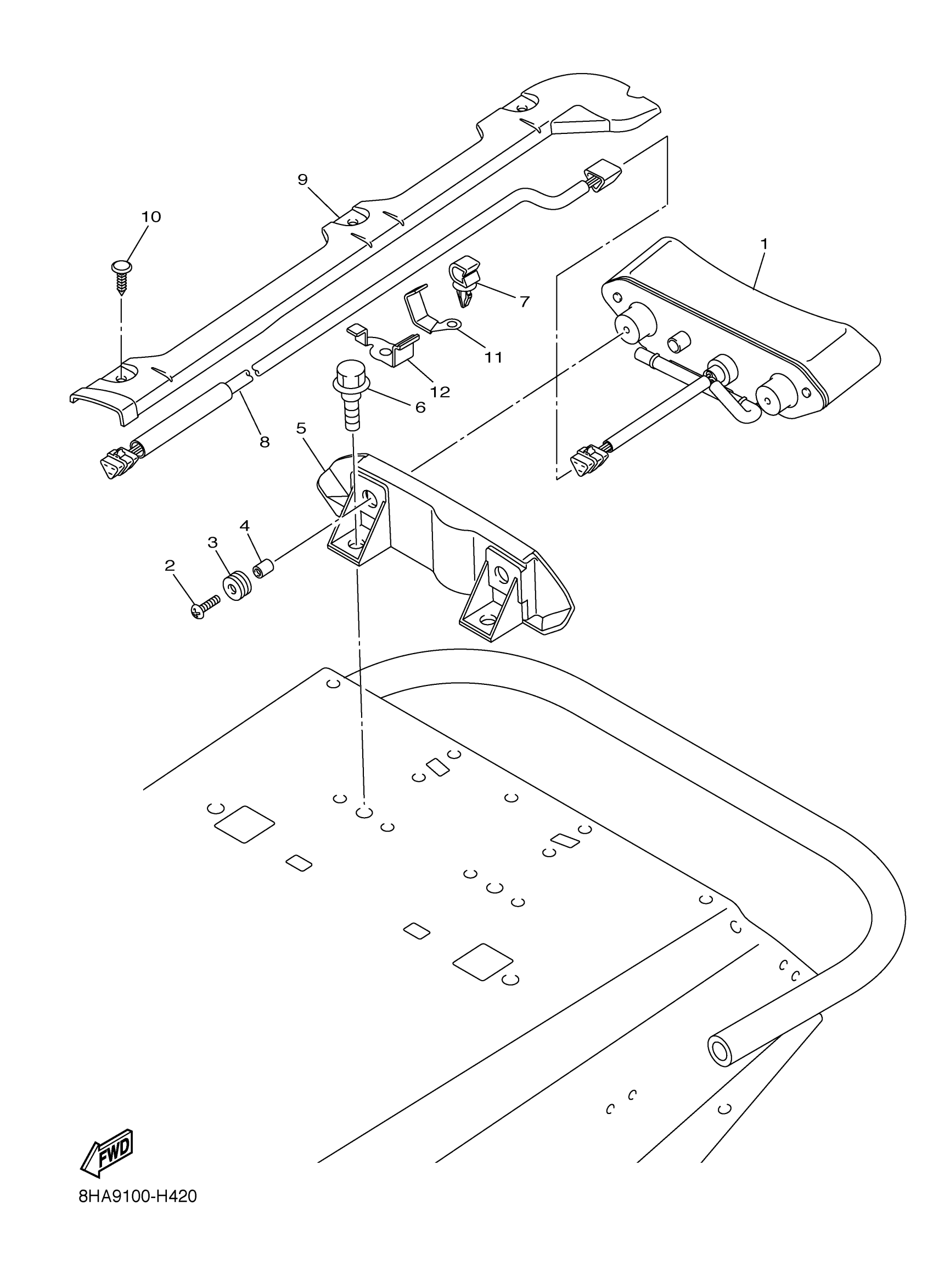

Yamaha FX10MTRYW (FX NYTRO MTX) 8HA90 2009 TAILLIGHT Diagram

#

Description
Price

1

TAILLIGHT UNIT ASSY

8FS-84710-01-00

$190.53

2

SCREW, TAPPING(4TV)

90167-05078-00

$5.29

3

GROMMET (461)

90480-12067-00

Unavailable

4

COLLAR (26H)

90387-053H3-00

$1.92

5

BRACKET, TAILLIGHT

8GL-2117E-00-00

Unavailable

6

BOLT

90109-06043-00

Unavailable

7

CLAMP

90464-07011-00

$1.58

8

CORD, TAILLIGHT

8HA-84717-00-00

Unavailable

9

COVER HARNESS

8HA-87228-00-00

Unavailable

10

RIVET

90269-06003-00

Unavailable

11

CLAMP

90462-08045-00

$5.18

12

CLAMP, CORD

8GL-84351-00-00

$19.67
