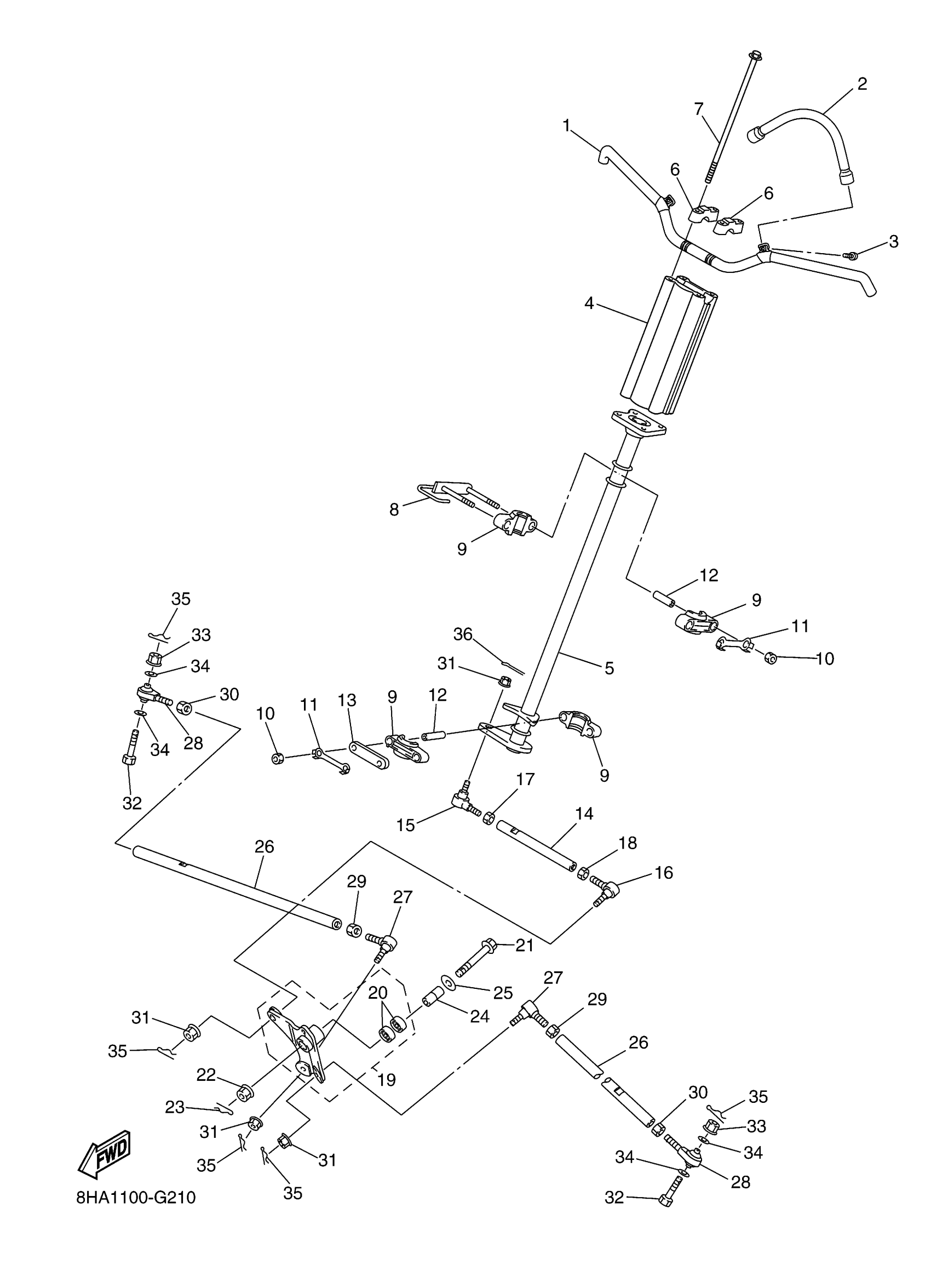

Yamaha FX10MTRYW (FX NYTRO MTX) 8HA90 2009 STEERING Diagram

#

Description
Price

1

HANDLEBAR

8HA-26111-00-00

$378.72

2

STRAP, STRG

8GE-23829-00-00

$131.94

3

BOLT, BUTTON HEAD

92012-06020-00

$6.28

4

JOINT

8HA-2381B-00-00

$249.88

5

COLUMN, STEERING 2

8GL-23813-00-00

$204.22

6

HOLDER, HANDLE UPPER

1E6-23441-00-00

$22.38

7

BOLT

8GT-23876-00-00

$9.09

8

HOLDER, BEARING

8GL-23872-00-00

$21.23

9

PLANE BEARING, STEERING

8FA-23812-00-00

$5.66

10

NUT(6L2)

95333-08600-00

$3.20

11

WASHER, LOCK 1

1UY-23894-01-00

$6.86

12

COLLAR

8HF-2412G-00-00

$6.18

13

HOLDER 2

8FA-23867-00-00

$2.49

14

ROD, STEERING RELAY

8GL-23821-00-00

$38.88

15

JOINT, UNIVERSAL 2

8CR-23845-10-00

$52.81

16

JOINT, UNIVERSAL 3

8CR-23847-00-00

$48.17

17

NUT (682)

95380-10700-00

$5.78

18

NUT, HEXAGON (8A5)

90170-10186-00

$7.60

19

ARM PIVOT ASSY

8GL-2389K-00-00

$167.83

20

BEARING

93317-420A7-00

$39.17

21

BOLT, FLANGE

90105-12070-00

$13.71

22

NUT, SELF-LOCKING

95602-12200-00

$3.82

23

PIN, COTTER

91490-20035-00

$3.25

24

COLLAR

8GL-2412G-00-00

$17.31

25

WASHER, PLATE

90201-13016-00

$5.34

26

ROD, TIE

8HA-23831-00-00

$52.42

27

JOINT, UNIVERSAL 2

8CR-23845-10-00

$52.81

28

JOINT, UNIVERSAL 3

8GC-23847-00-00

$68.89

29

NUT (682)

95380-10700-00

$5.78

30

NUT, HEXAGON (8A5)

90170-10186-00

$7.60

31

NUT, FLANGE(3BM)

95704-10500-00

$1.71

32

BOLT

8GC-23493-00-00

$6.18

33

NUT,FLANGE(J10)

95702-08500-00

$0.80

34

WASHER, PLATE

90201-06018-00

$3.74

35

PIN, COTTER (648)

91490-20015-00

$1.85

36

PIN, COTTER

91490-20025-00

$1.31
