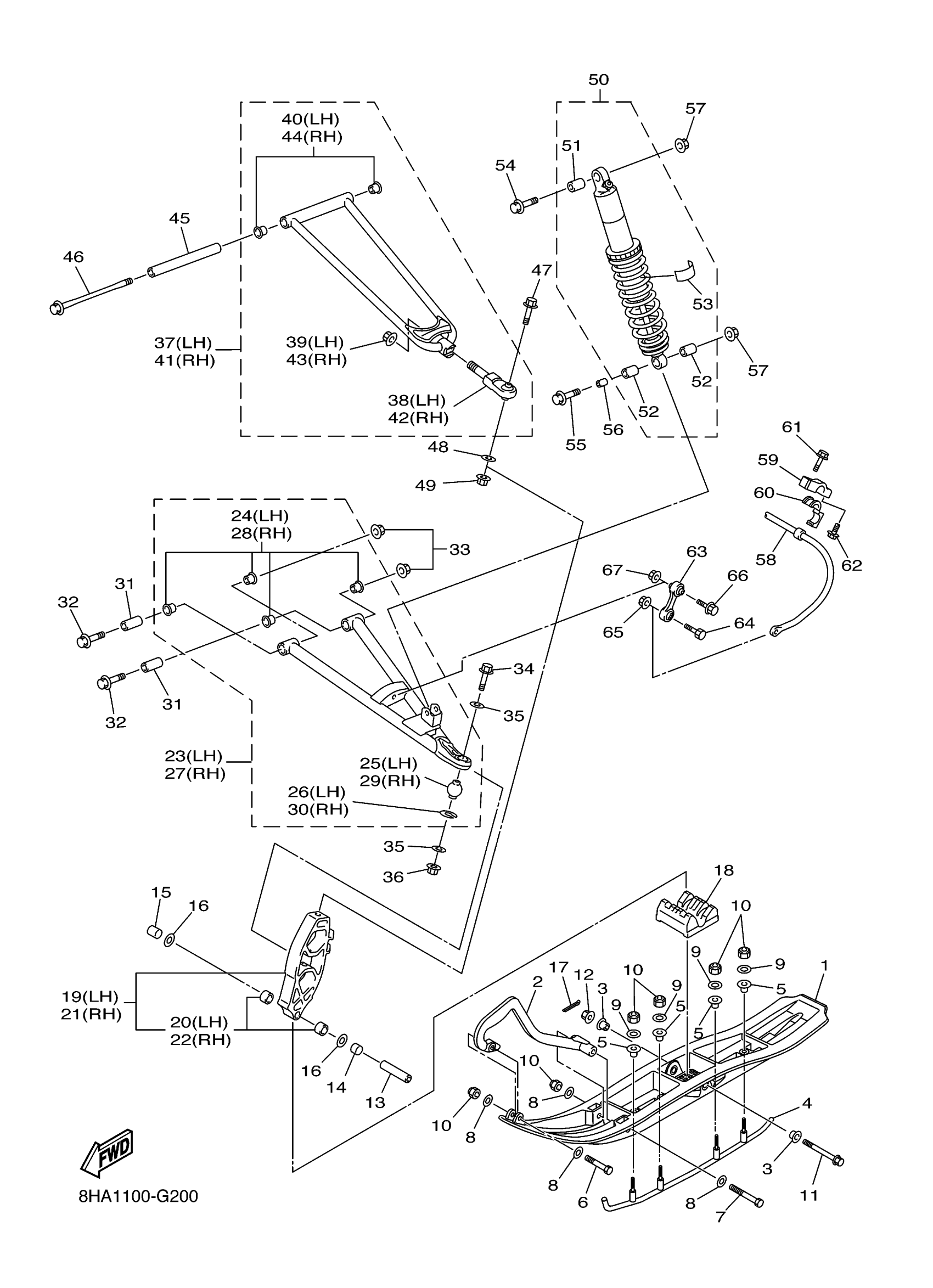

Yamaha FX10MTRYW (FX NYTRO MTX) 8HA90 2009 SKI Diagram

#

Description
Price

1

SKI 1

8FK-23711-00-BK

Unavailable

2

BLUE 8DM HANDLE PLASTIC

8DM-23712-00-BU

Unavailable

2

RED 8DM HANDLE PLASTIC

8DM-23712-00-RD

Unavailable

3

. COLLAR 1

8EX-F3754-00-00

Unavailable

4

SKI RUNNER KIT

SMA-F3731-GP-00

Unavailable

5

BUSH, SKI 1

8EK-F3751-00-00

$5.66

6

BOLT, HEXAGON

97017-08055-00

$6.88

7

BOLT, HEXAGON

97027-08100-00

$4.55

8

WASHER, PLATE (3L7)

90201-08784-00

$2.54

9

WASHER, PLATE(3XP)

90201-086P8-00

$4.35

10

NUT, NYLON

95717-08300-00

$2.57

11

BOLT, FLANGE

90105-10410-00

$12.08

12

NUT, S/L FLANGE

95602-10200-00

$2.29

13

COLLAR

90387-10036-00

$19.77

14

COLLAR

90387-16022-00

$7.29

15

COLLAR

90387-16023-00

$8.29

16

WASHER, PLATE

90201-16022-00

$8.31

17

PIN, COTTER

91490-20025-00

$1.31

18

STOPPER 1

8GP-23743-00-00

$63.17

19

STEERING KNUCKLE ASSY (LEFT)

8GL-23501-00-00

$440.95

20

BUSH, BIMETAL FORMED

90384-16N51-00

$4.35

21

STEERING KNUCKLE ASSY (RIGHT)

8GL-23502-00-00

$396.34

22

BUSH, BIMETAL FORMED

90384-16N51-00

$4.35

23

FRONT LOWER ARM COMP. (LEFT)

8HA-23570-01-P0

$417.98

24

BUSH, SOLID

90381-18N51-00

$9.77

25

BALL JOINT 2

8GK-23579-01-00

$133.02

26

CIRCLIP (IR)(93450-35015 SUPER

99009-35700-00

$2.55

27

FRONT LOWER ARM COMP. (RIGHT)

8HA-23580-01-P0

$417.98

28

BUSH, SOLID

90381-18N51-00

$9.77

29

BALL JOINT 2

8GK-23579-01-00

$133.02

30

CIRCLIP (IR)(93450-35015 SUPER

99009-35700-00

$2.55

31

COLLAR

90387-10065-00

$18.89

32

BOLT, FLANGE

90105-10211-00

$5.97

33

NUT, S/L FLANGE

95602-10200-00

$2.29

34

BOLT, FLANGE

90105-10210-00

$5.40

35

WASHER, PLATE

90201-10051-00

$7.26

36

NUT, S/L FLANGE

95602-10200-00

$2.29

37

FRONT UPPER ARM COMP. (LEFT)

8HA-23540-00-P0

$266.66

38

BALL JOINT 1

8GK-23549-00-00

$148.63

39

NUT, U FLANGE

95602-14200-00

$9.89

40

BUSH, SOLID

90381-15N50-00

$5.22

41

FRONT UPPER ARM COMP. (RIGHT)

8HA-23550-00-P0

Unavailable

42

BALL JOINT 1

8GK-23549-00-00

$148.63

43

NUT, U FLANGE

95602-14200-00

$9.89

44

BUSH, SOLID

90381-15N50-00

$5.22

45

COLLAR

90387-10058-00

$23.77

46

BOLT, FLANGE

90105-10213-00

$15.49

47

BOLT

91312-10045-00

$4.04

48

WASHER, PLATE

90201-10052-00

$6.28

49

NUT, S/L FLANGE

95602-10200-00

$2.29

50

ABSORBER ASSY 1

8HA-2376A-30-00

Unavailable

51

DAMPER, BUSH B

8FA-2331R-00-00

$10.38

52

BUSH, BIMETAL FORMED

90384-15N51-00

$6.37

53

LABEL, WARNING

4AA-22259-60-00

$6.02

54

BOLT, FLANGE

90105-10122-00

$9.00

55

BOLT, FLANGE

90105-10209-00

$6.82

56

COLLAR

90387-10N59-00

$12.34

57

NUT, S/L FLANGE

95602-10200-00

$2.29

58

BAR, STABILIZER FRONT

8GN-2386E-00-00

$273.68

58

BAR, STABILIZER FRONT

8GN-2386E-10-00

$254.17

58

BAR, STABILIZER FRONT

8GN-2386E-20-00

$227.71

59

HOLDER, STABILIZER FRONT

8GL-2386C-00-00

$29.85

60

BUSH, STABILIZER FRONT

8GN-2386G-00-00

$10.45

60

BUSH, STABILIZER FRONT

8GN-2386G-10-00

$8.23

60

BUSH, STABILIZER FRONT

8GN-2386G-20-00

$5.35

61

BOLT, BUTTON HEAD

92012-08030-00

$5.66

62

BOLT, BUTTON HEAD

92012-08016-00

$6.98

63

JOINT, STABILIZER 1

8GN-2385L-00-00

$97.48

64

BOLT(6TA)

97017-10035-00

$5.80

65

NUT, S/L FLANGE

95602-10200-00

$2.29

66

BOLT, FLANGE

95817-08040-00

$5.43

67

NUT, SELF-LOCKING

95602-08200-00

$2.77
