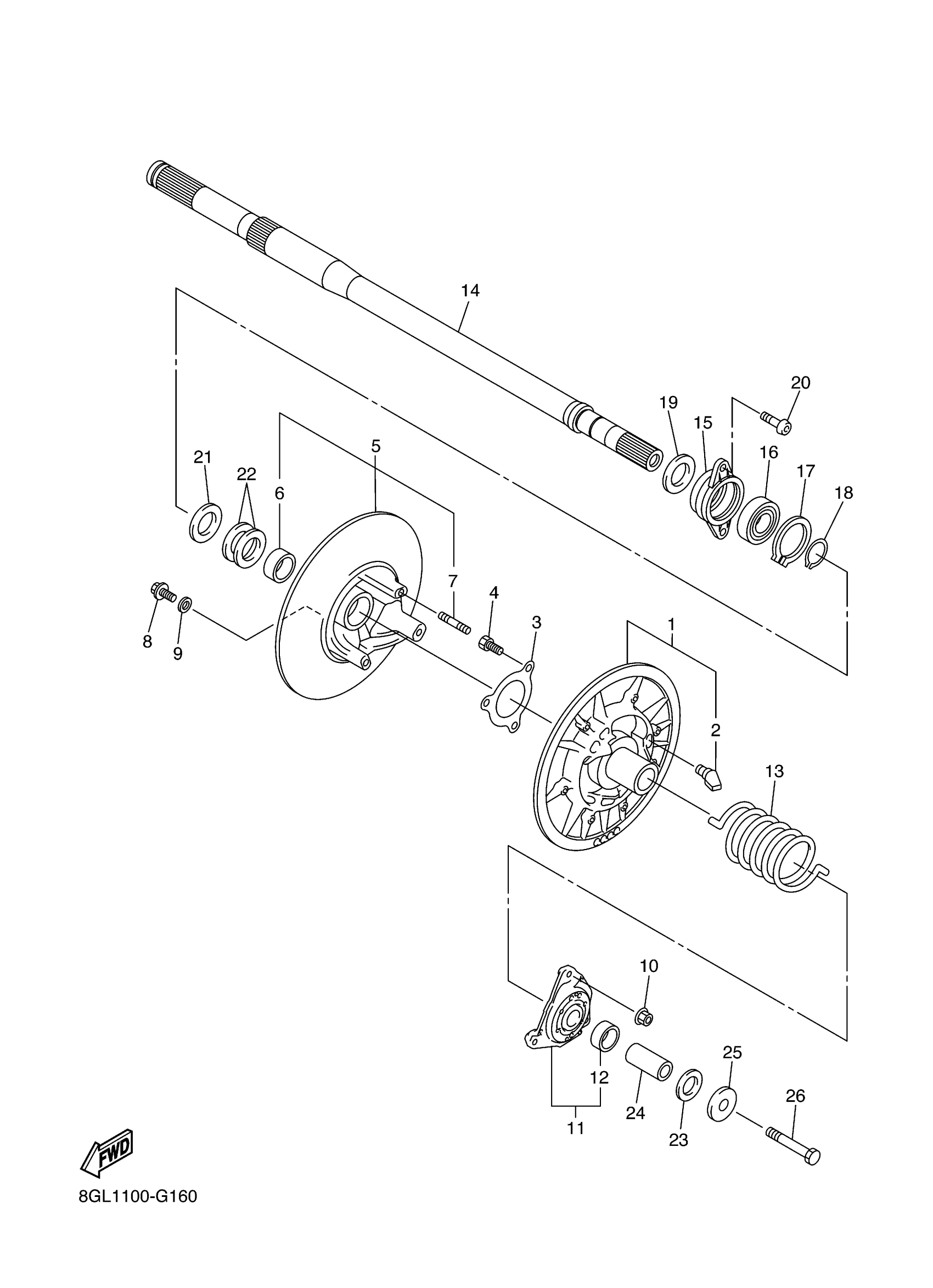

Yamaha FX10MTRYW (FX NYTRO MTX) 8HA90 2009 SECONDARY SHEAVE Diagram

#

Description
Price

1

SECONDARY FIXED SHEAVE COMP.

8GL-17660-30-00

$558.32

2

SHOE, RAMP

8AV-17688-10-00

$27.33

3

STOPPER, HOLDER

8BV-17656-00-00

$20.20

4

SCREW, BINDING

98907-06016-00

$7.14

5

SECONDARY SLIDING SHEAVE

8BU-17670-20-00

$218.32

6

BUSH, BIMETAL FORMED(8BN)

90384-38243-00

$52.33

7

BOLT, STUD 3

95617-08630-00

$3.69

8

BOLT, WASHER BASED(8BN)

90105-06734-00

$2.82

9

WASHER, PLATE (371)

90201-06431-00

$4.48

9

WASHER, PLATE (22K)

90201-061H1-00

$3.74

10

NUT(8BN)

90179-08655-00

$7.46

11

SEAT SPRING SET

8BV-17604-91-00

$227.38

12

BUSH, BIMETAL FORMED(8BN)

90384-38243-00

$52.33

13

SPRING, TORSION

90508-60012-00

$41.64

14

SHAFT, SECONDARY

8GL-17681-00-00

Unavailable

15

HOUSING, BEARING

8GL-47631-00-00

$49.37

16

BEARING

93306-20656-00

$70.58

17

CIRCLIP(MF1)

99009-62500-00

$6.23

18

CIRCLIP

99009-28400-00

$5.75

19

WASHER, PLATE(89A)

90201-284P7-00

$6.92

20

SCREW

90149-08034-00

$1.91

21

WASHER, PLATE(89A)

90201-284P7-00

$6.92

22

WASHER, PLATE(1YW)

90201-286K9-00

$5.68

23

WASHER, PLATE (8R6)

90201-252F1-00

$6.92

23

WASHER, PLATE (888)

90201-25527-00

$7.60

24

COLLAR

90387-18014-00

$14.86

25

WASHER, PLATE

90201-18020-00

$2.37

26

BOLT, SECONDARY

8GL-17698-00-00

$32.63
