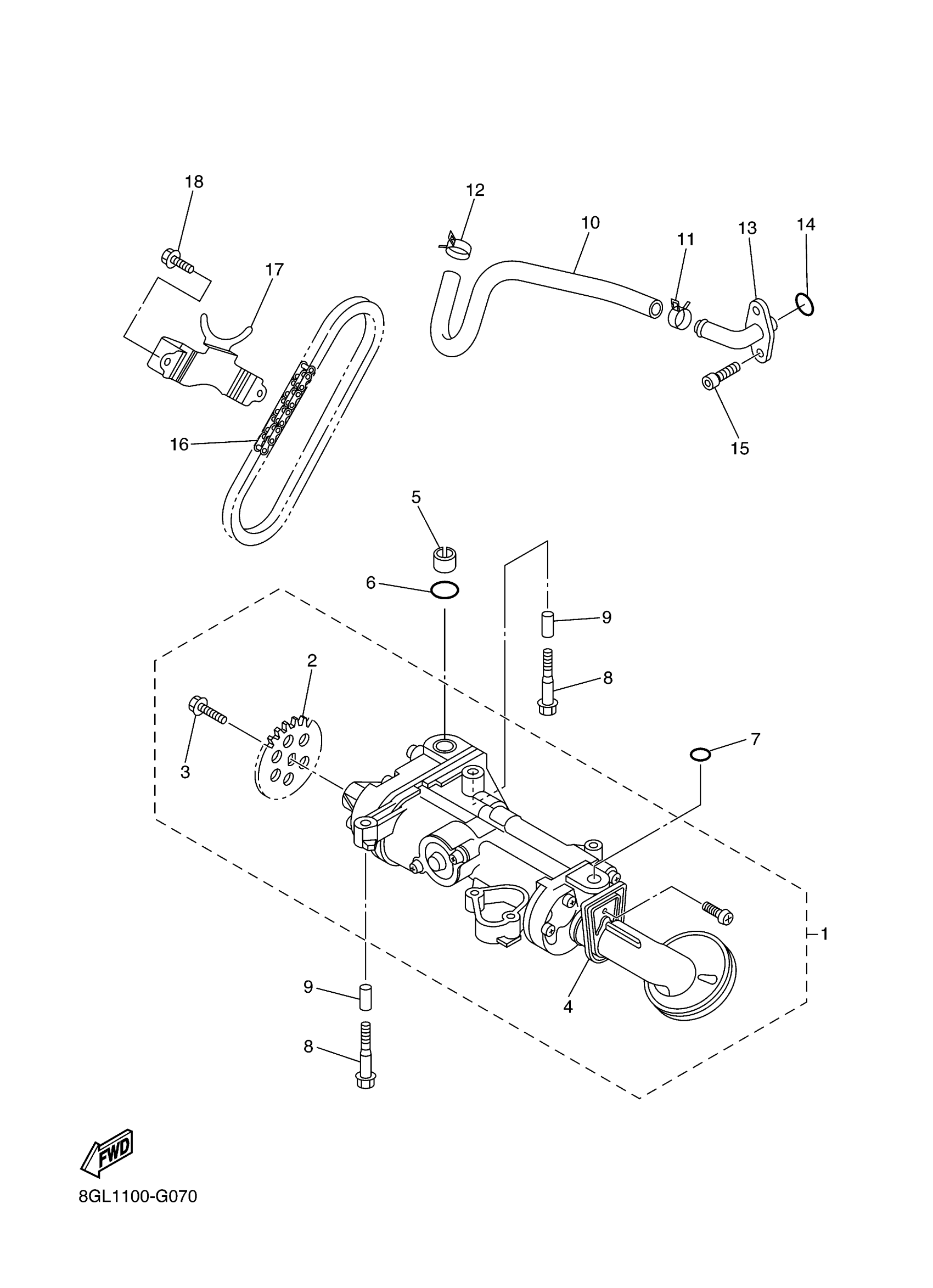

Yamaha FX10MTRYW (FX NYTRO MTX) 8HA90 2009 OIL PUMP Diagram

#

Description
Price

1

OIL PUMP ASSY

8GL-13300-00-00

$474.33

2

SPROCKET, DRIVEN

4XV-13355-00-00

Unavailable

3

BOLT, FLANGE

90105-06066-00

$5.99

4

SPACER, STRAINER

8ES-13427-00-00

$14.33

5

PIPE

8ES-13284-00-00

$3.33

6

O-RING (1L9)

93210-18322-00

$4.33

7

O-RING (26H)

93210-14579-00

$4.74

8

BOLT, FLANGE

95817-06040-00

$4.33

9

PIN, DOWEL(8AH)

91808-22019-00

$6.53

10

HOSE, OIL 1

8GL-13464-00-00

Unavailable

11

CLIP(34X)

90467-22097-00

$6.79

12

CLIP(34X)

90467-22097-00

$6.79

13

CONNECTOR, SUCTION PIPE

8ES-13115-00-00

$38.47

14

O-RING (26H)

93210-16629-00

$5.01

15

BOLT(3MA)

91312-06016-00

$4.82

16

CHAIN

94580-25064-00

Unavailable

17

HOLDER

8ES-13898-01-00

Unavailable

18

BOLT, FLANGE

95817-06012-00

Unavailable
