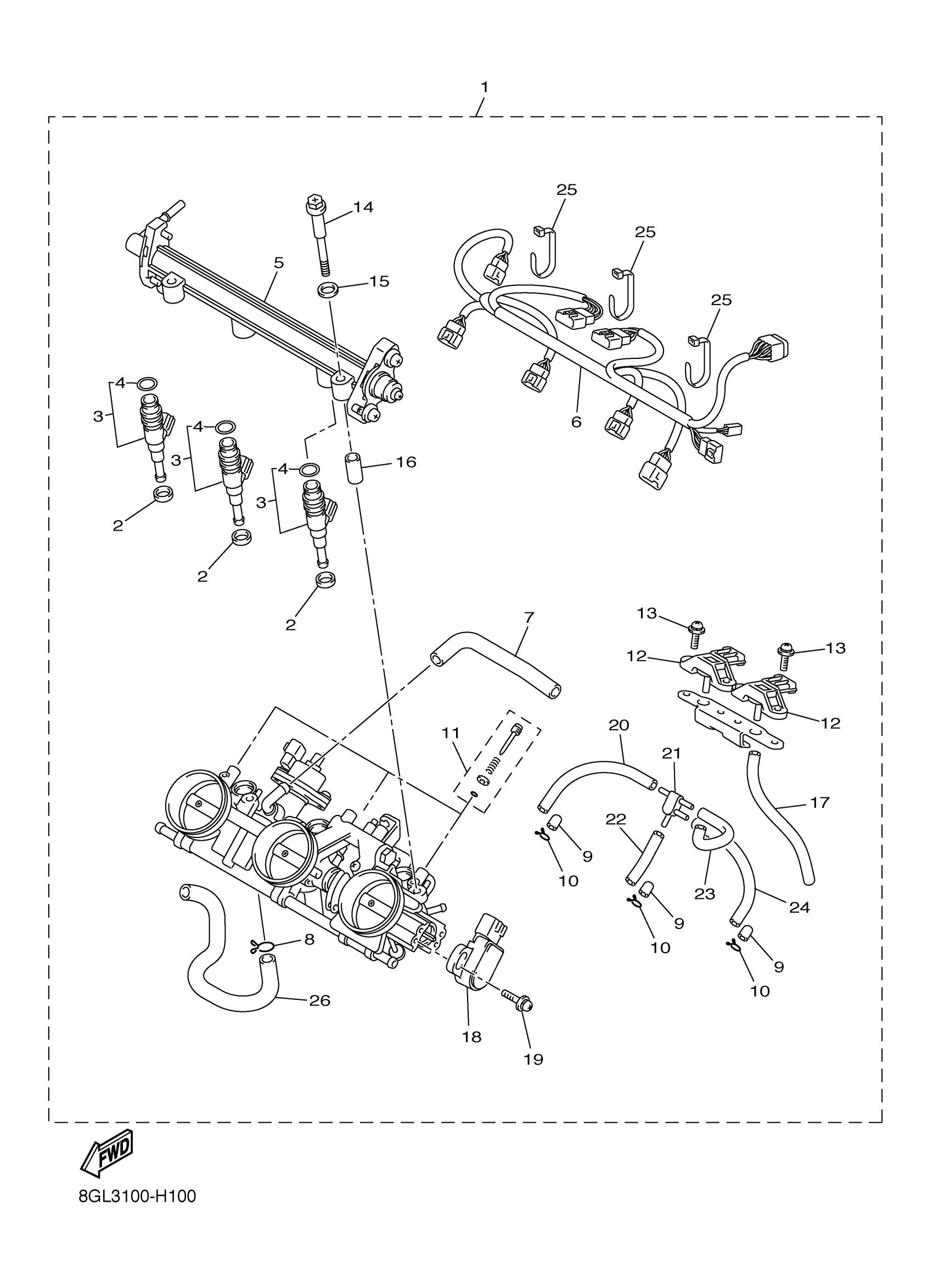

Yamaha FX10MTRYW (FX NYTRO MTX) 8HA90 2009 INTAKE 2 Diagram

#

Description
Price

1

THROTTLE BODY ASSY

8GL-13750-10-00

$1,675.99

2

GASKET, MANIFOLD

8FP-13556-00-00

$12.27

3

INJECTOR ASSY

8GC-13761-00-00

$254.51

4

O-RING

8GC-13769-00-00

Unavailable

5

PIPE INLET ASSEMBLY

8GL-13930-00-00

$229.91

6

EXTENSION, WIRE HARNESS

8GL-82386-01-00

$204.46

7

HOSE, AIR

8GL-13895-00-00

$23.22

8

CLIP

90467-150A2-00

$6.25

9

CAP

895-14169-00-00

$4.02

10

CLIP, PIPE

8A7-14139-00-00

$6.80

11

ADJUST SCREW SET

8GL-14503-00-00

$13.66

12

SENSOR, PRESSURE

2C0-82380-10-00

$144.93

13

SCREW

8GL-14592-00-00

$3.91

14

BOLT 1

8GL-13573-00-00

$11.66

15

WASHER

8GL-13571-00-00

$3.37

16

COLLAR

8GL-14534-00-00

$8.31

17

PIPE

5PW-14349-00-00

$8.60

18

THROTTLE SENSOR AS

8GL-85885-01-00

$76.17

19

SCREW

8CC-14216-10-00

$7.12

20

HOSE

5JW-14987-00-00

$14.80

21

CONNECTOR

5PW-1410F-00-00

$17.45

22

PIPE

8FP-14349-30-00

$4.15

23

HOSE, AIR 2

8GL-13892-00-00

$27.42

24

HOSE, AIR 3

8GL-13893-00-00

$6.31

25

CLIP

4KM-14137-00-00

$5.26

26

HOSE 1

8GL-13545-00-00

$20.40
