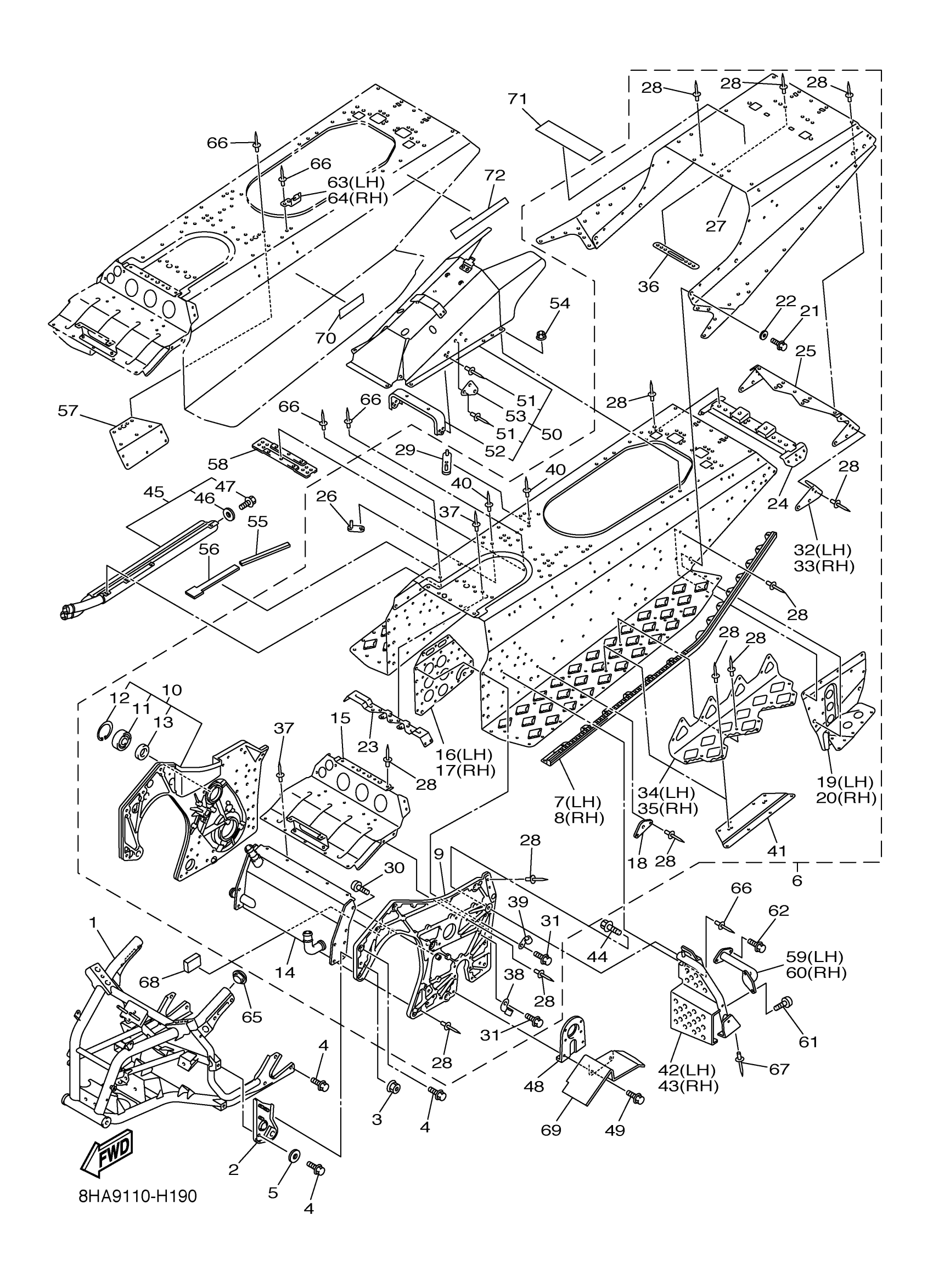

Yamaha FX10MTRYW (FX NYTRO MTX) 8HA90 2009 FRAME Diagram

#

Description
Price

1

FRONT FRAME COMP.

8GL-21940-03-00

$1,292.99

2

BRACKET, ENGINE

8GL-2194E-00-00

Unavailable

3

NUT, SELF-LOCKING (3Y2)

90185-08089-00

$7.31

4

BOLT, FLANGE(JN5)

95817-08016-00

$4.12

5

WASHER, PLATE (4W3)

90201-086A3-00

$6.29

6

REAR FRAME COMP.

8HA-21950-01-00

$6,102.99

7

REINFORCEMENT, FOOTREST 1

8HA-21926-01-00

$230.34

8

REINFORCEMENT, FOOTREST 2

8HA-21936-01-00

Unavailable

9

REINF., HOUSING 1

8GL-21925-00-00

Unavailable

10

HOUSING, REINF SUB-ASSY(R.H)

8GL-21930-00-00

Unavailable

11

BEARING (5X5)

93306-20627-00

$66.08

12

CIRCLIP(MF1)

99009-62500-00

$6.23

13

OIL SEAL

93102-30012-00

$29.09

14

HEAT EXCHANGER ASSY

8HA-12440-00-00

$571.99

15

PANEL, SUB FRAME 4

8GL-21915-00-00

Unavailable

16

BRACKET, MAIN TRACK 1

8HA-21943-00-00

$86.08

17

. BRACKET, MAIN TRACK 2

8HA-21953-00-00

Unavailable

18

BRACKET, MAIN TRACK 3

8FU-21919-00-00

$4.65

19

BRACKET, RR.TRACK SUSPENTION 1

8HA-21944-00-00

Unavailable

20

BRACKET, RR.TRACK SUSPENTION 2

8HA-21954-00-00

$196.97

21

BOLT, FLANGE

95817-10020-00

$5.10

22

WASHER, PLATE

90201-10035-00

$3.56

23

PROTECTOR, MUFFLER

8GL-2194H-00-00

$65.03

24

BRACKET 7

8GL-2197N-00-00

$103.06

25

. REINEFORCEMENT, FRAME REAR 1

8HA-21923-00-00

Unavailable

26

BRACKET, FUEL TANK 1

8CR-2194N-00-00

$3.14

27

. PANEL, SUB FRAME 6

8HA-21917-00-00

Unavailable

28

RIVET, BLIND

90267-47195-00

$3.33

29

BRACKET 8

8GL-22512-00-00

$6.74

30

BOLT, BUTTON HEAD

92012-08016-00

$6.98

31

BOLT, FLANGE

95022-08016-00

$0.55

32

PATCH 1

8HA-21961-00-00

$10.38

33

PATCH 2

8HA-21962-00-00

$10.38

34

REINFORCEMENT, RR. FOOTREST 1

8HB-21927-00-00

$136.82

35

. REINFORCEMENT, REAR FOOTREST 2

8HB-21937-00-00

Unavailable

36

NUT

8GL-21295-00-00

$8.97

37

RIVET, BLIND

90267-48010-00

$2.00

38

CLAMP

90462-08061-00

Unavailable

39

CLAMP

90462-08064-00

Unavailable

40

RIVET, BLIND

90267-48023-00

$8.18

41

PATCH 3

8HA-21963-00-00

Unavailable

42

FOOTREST COMP. 1

8GL-21960-00-00

$201.08

43

FOOTREST COMP. 2

8GL-21970-01-00

Unavailable

44

BOLT, FLANGE

95817-10030-00

$6.17

45

HEAT EXCHANGER ASSY 4

8HA-1241A-00-00

$437.40

46

WASHER, SEAL (7G5)

90210-06006-00

$5.72

47

BOLT(3JP)

97017-06010-00

$2.62

48

HOUSING, REINF SUB-ASSY(L.H)

8GL-21920-00-00

$23.55

49

BOLT, FLANGE

95812-08020-00

$1.69

50

PANEL, SUB FRAME 5

8GL-21916-00-00

$330.69

51

RIVET, BLIND

90267-47195-00

$3.33

52

STAY, MUFFER

8GL-2194L-00-00

$38.37

53

BRACKET, SEAT FITTING

8GL-21946-00-00

Unavailable

54

NUT, CROWN

90176-06016-00

$3.57

55

SEAL, GUARD

8GL-22151-00-00

Unavailable

56

SEAL, GUARD

8GL-22152-00-00

$4.08

57

PATCH 7

8GL-21967-00-00

$19.11

58

PATCH 8

8GL-21988-00-00

Unavailable

59

BAR, FOOTREST 1

8GL-27471-00-00

$47.06

60

BAR, FOOTREST 2

8GL-27472-00-00

$47.06

61

BOLT, BUTTON HEAD

92012-06014-00

$6.18

62

BOLT, FLANGE

95817-06012-00

$1.49

63

BRACKET, REAR FENDER 1

8GL-21151-00-00

Unavailable

64

BRACKET, REAR FENDER 2

8GL-21152-00-00

Unavailable

65

CAP, REAR ARM

180-22117-00-00

$6.52

66

RIVET, BLIND

90267-47195-00

$3.33

67

RIVET, BLIND

90267-48016-00

$7.85

68

DAMPER

8GL-21852-00-00

$2.25

69

PROTECTOR, FRAME

8GL-2197B-00-00

$60.82

70

PLATE, EPA OFFROAD 2

8GL-2179D-10-00

$3.25

71

LABEL, WARNING 2

8HA-77762-E0-00

$9.37

72

GRAPHIC 1

8GL-2199A-00-00

$12.20

72

GRAPHIC 1

8GL-2199A-10-00

$12.26
