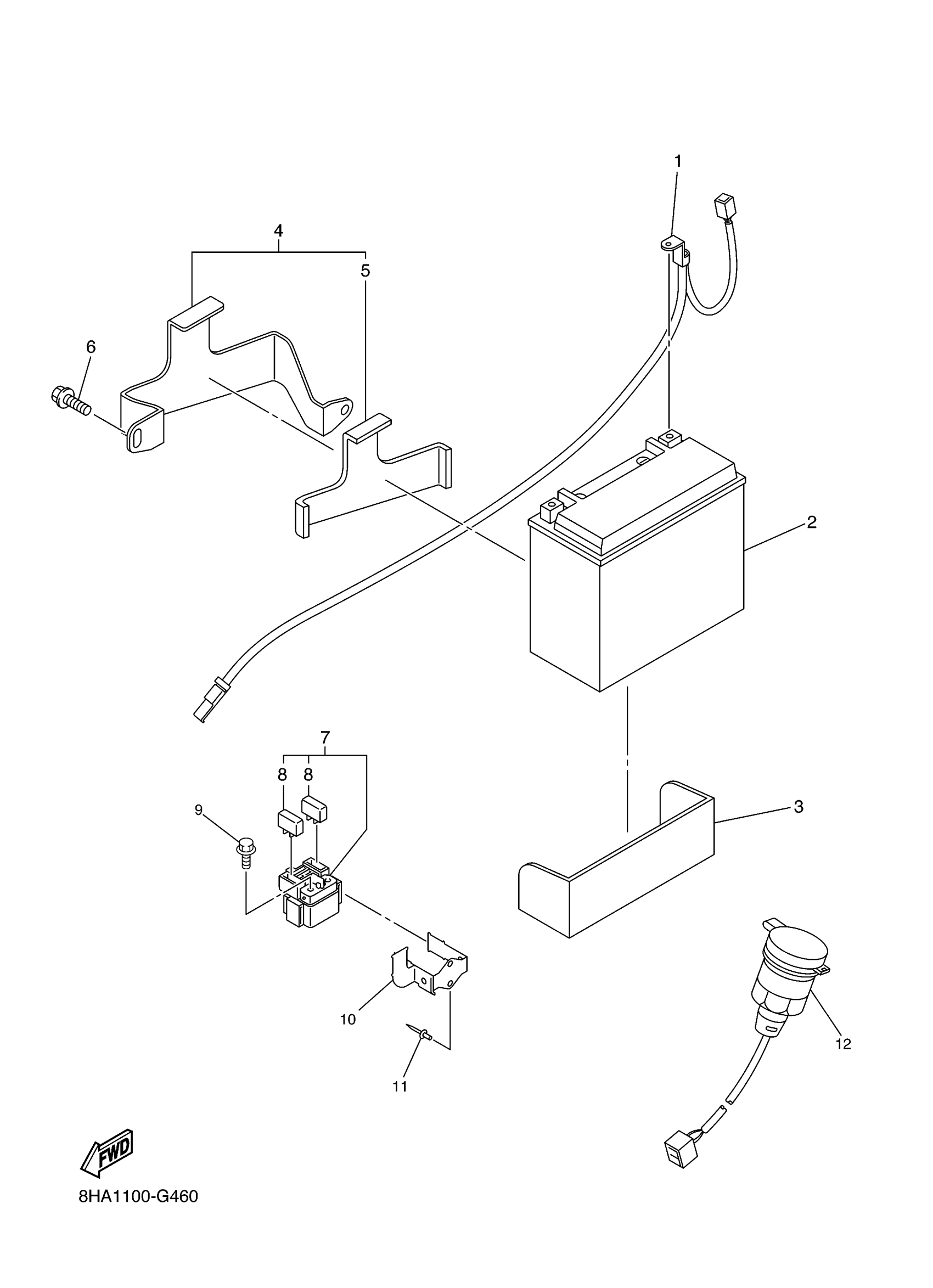

Yamaha FX10MTRYW (FX NYTRO MTX) 8HA90 2009 ELECTRICAL 2 Diagram

#

Description
Price

1

WIRE, MINUS LEAD

8GL-82116-00-00

$39.52

2

BATTERY ASSY (YUASA YTX20L-BS)

YTX-20LBS-00-00

$165.99

3

SEAT, BATTERY

8GL-82122-00-00

$14.65

4

BRACKET, BATTERY

8GL-2199G-00-00

$54.63

5

DAMPER

8GL-82176-00-00

$4.83

6

BOLT, FLANGE

95822-08014-00

$6.68

7

STARTER RELAY ASSY (RC19-016)

3EL-81940-02-00

$28.11

8

FUSE (10A)

42X-82151-00-00

$2.16

9

BOLT, FLANGE

95022-06008-00

$4.70

10

STAY, RELAY

8GL-81953-01-00

Unavailable

11

RIVET, BLIND

90267-47195-00

$3.33

12

TERMINAL COMP.

8FP-8254B-00-00

$148.14
