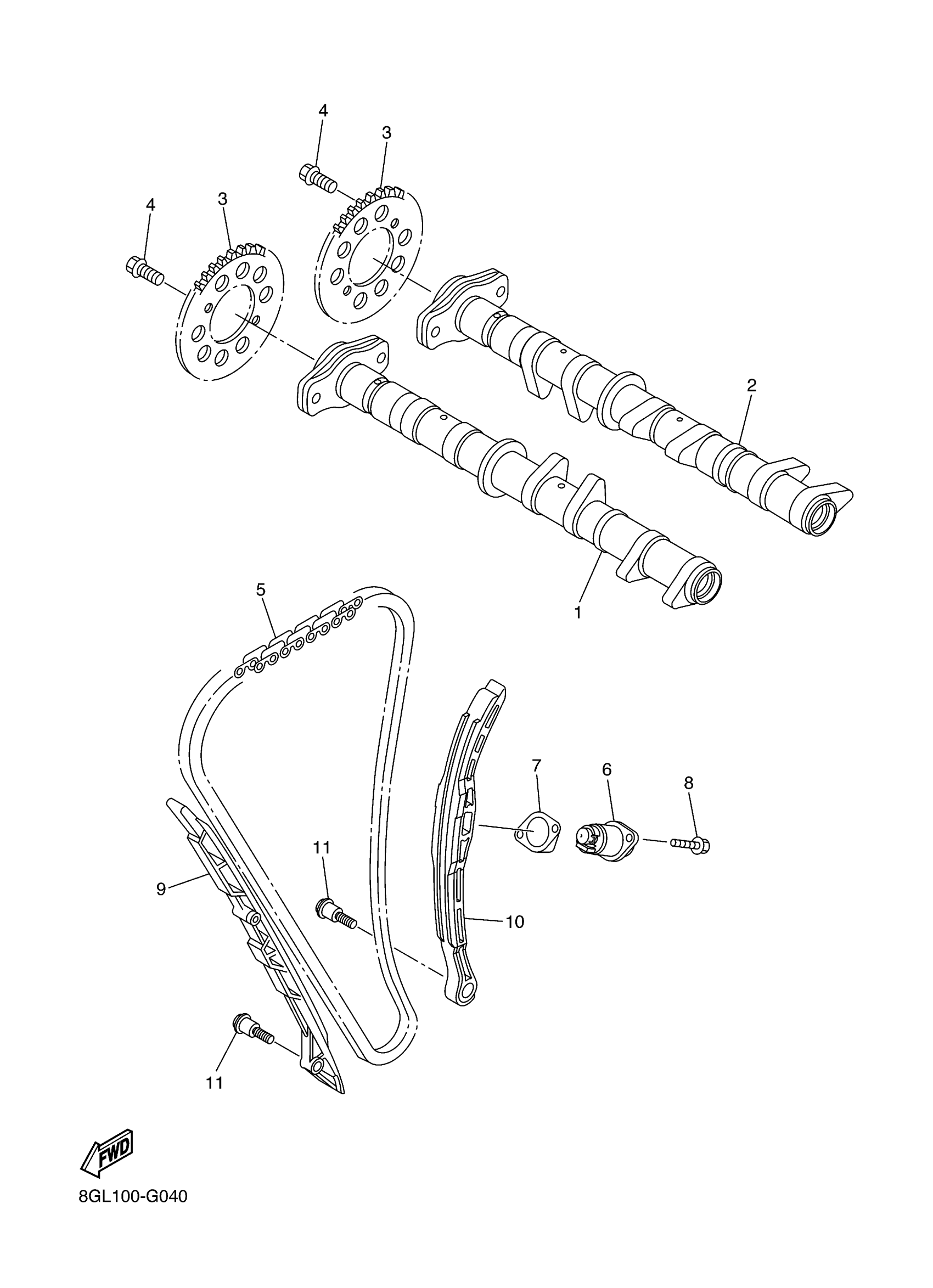

Yamaha FX10MTRYW (FX NYTRO MTX) 8HA90 2009 CAMSHAFT CHAIN Diagram

#

Description
Price

1

CAMSHAFT ASSY 1

8GL-12170-00-00

$277.27

2

CAMSHAFT ASSY 2

8GL-12180-00-00

$277.27

3

SPROCKET, CAM CHAIN

8GL-12176-00-00

Unavailable

4

BOLT, FLANGE

90105-07004-00

$4.76

5

CHAIN

94591-57140-00

$37.17

6

TENSIONER ASSY, CAM CHAIN

8GL-12210-10-00

$173.11

7

GASKET, TENSIONER CASE

2C0-12213-00-00

$6.42

8

BOLT, HEXAGON SOCKET HEAD

90110-06106-00

$6.02

9

DAMPER, CHAIN 1

8GL-12251-01-00

$23.54

10

DAMPER, CHAIN 2

8GL-12252-01-00

Unavailable

11

BOLT

90109-06188-00

$4.64
