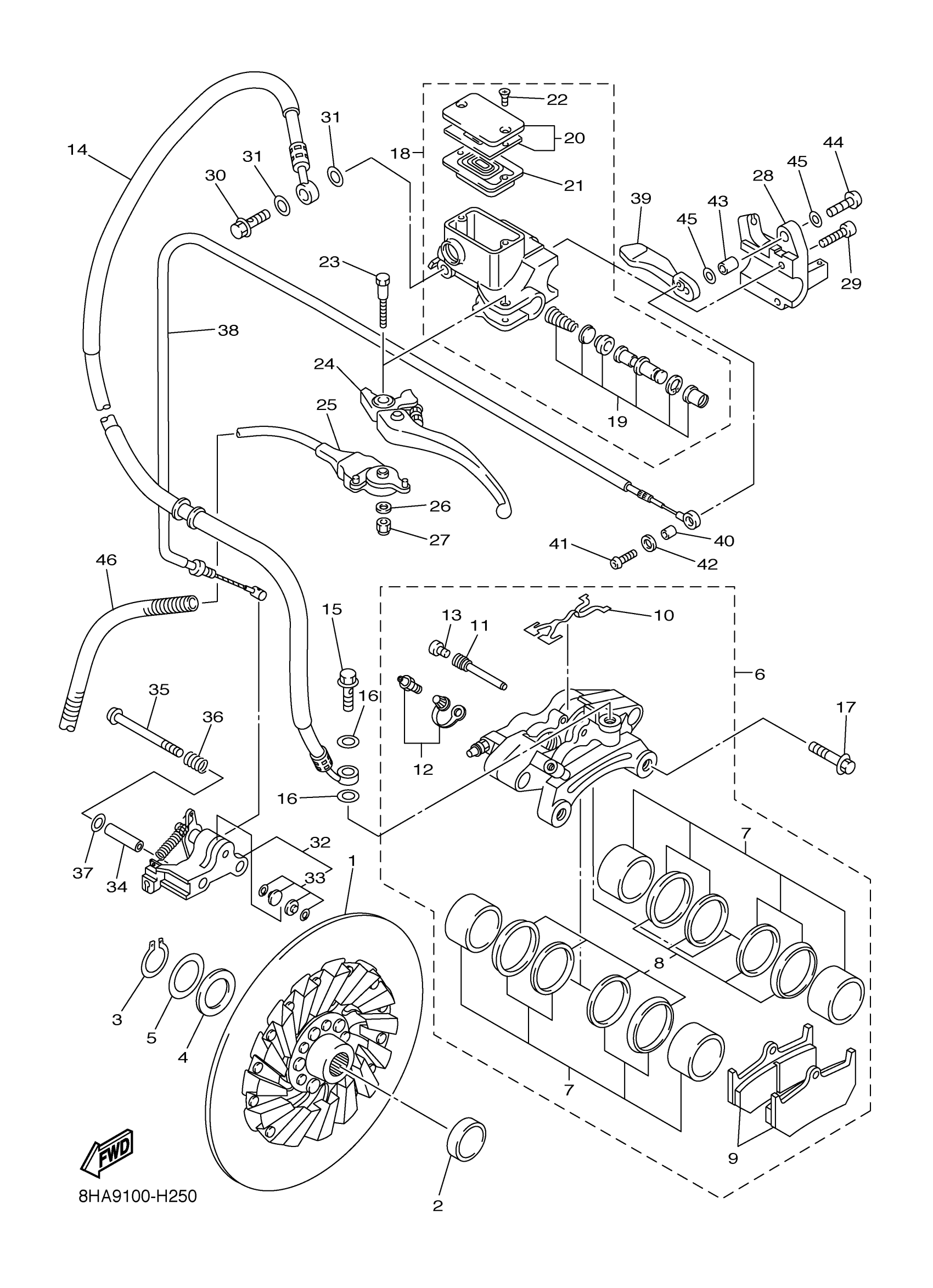

Yamaha FX10MTRYW (FX NYTRO MTX) 8HA90 2009 BRAKE Diagram

#

Description
Price

1

DISK BRAKE ASSY

8GL-2581T-00-00

$223.94

2

COLLAR

90387-25021-00

$30.60

3

CIRCLIP(1EY)

99009-22400-00

$6.17

4

WASHER, PLATE (8L8)

90201-225A4-00

$7.85

5

WASHER, PLATE (T=0.5)

90201-222F0-00

$5.89

6

CALIPER ASSY (LEFT)

8GL-2580T-00-00

$469.86

7

PISTON ASSY, CALIPER

8FU-W0057-00-00

$104.54

8

CALIPER SEAL KIT

3JD-W0047-10-00

$51.83

9

BRAKE PAD KIT 2

8FU-W0046-01-00

$60.58

10

SUPPORT, PAD

8FU-25919-00-00

$16.02

11

PIN, PAD

8FU-25924-00-00

$10.88

12

BLEED SCREW KIT

8CR-W0048-00-00

$9.71

13

BOLT

8CR-25926-00-00

$5.23

14

HOSE, BRAKE 1

8HA-25872-00-00

$83.88

15

BOLT, UNION

90401-10015-00

$9.89

16

WASHER, PLATE(481)

90201-10118-00

$2.91

17

BOLT, FLANGE

90105-10096-00

$8.86

18

MASTER CYLINDER SUB ASSY

8FA-W2587-00-00

$255.42

19

CYLINDER KIT, MASTER

8CR-W0041-00-00

$47.42

20

RESERVOIR CAP SET

8CR-W2585-00-00

$35.75

21

DIAPHRAGM, RESERVOIR

55U-25854-00-00

$21.68

22

SCREW, FLAT

98707-04012-00

$1.43

23

BOLT, LEVER

8CR-2589F-00-00

$6.06

24

LEVER 1

8DN-83912-00-00

$51.94

25

STOP SWITCH ASSY

8FP-82530-00-00

$44.88

26

WASHER, PLAIN

8CR-8398X-00-00

$8.77

27

NUT, NYLON

95707-05300-00

$2.74

28

BRACKET, MASTER CYLINDER

8FA-25867-00-00

$28.51

29

BOLT

5YU-26332-00-00

$1.88

30

BOLT, UNION

90401-10015-00

$9.89

31

WASHER, PLATE(481)

90201-10118-00

$2.91

32

PARKING BRAKE COMP.

8FU-25970-01-00

$196.72

33

PARKING BRAKE PAD KIT

8FA-W0045-00-00

$48.30

34

COLLAR

90387-06058-00

$5.89

35

BOLT

90111-06042-00

$2.00

36

SPRING, COMPRESSION

90501-120A0-00

$6.32

37

WASHER 6474553400

90201-12161-00

$4.67

38

CABLE, BRAKE

8HA-26351-10-00

$51.23

39

LEVER 2

8FA-83922-00-00

$29.97

40

COLLAR

90387-06043-00

$6.68

41

BOLT, BUTTON HEAD

92012-06014-00

$6.18

42

WASHER, PLATE

90201-06089-00

$2.69

43

COLLAR

90387-081M9-00

$1.89

44

BOLT,HEX. SOCKET BUTTON

90111-08054-00

$1.54

45

WASHER PLATE 141181390000

90201-08085-00

$6.38

46

TUBE, CORD

8HA-82351-00-00

Unavailable
