Description

Price

1

GUIDE, PLATE STOPPER

8GL-18161-09-00

Unavailable

2

ARM, SHIFT

8GL-18112-00-00

Unavailable

3

SHAFT 6

8GL-47488-00-00

$15.99

4

BUSH(J41)

90386-15139-00

$5.49

5

CIRCLIP(13H)

99009-18400-00

$8.49

6

SPRING, COMPRESSION

90501-130A2-00

Unavailable

7

KNOB, SHIFT LEVER

8GL-18174-01-00

$71.99

8

PIN (8FA1)

90249-06002-00

Unavailable

9

COLLAR (8FA1)

90387-06059-00

$31.99

10

CIRCLIP (J10)

93410-06053-00

$7.49

11

WASHER, PLATE (8U7)

90201-067F9-00

$3.50

12

BOLT, FLANGE(JN5)

95817-08070-00

$3.76

13

WASHER, PLATE

90201-08054-00

$8.49

14

NUT, SELF-LOCKING

95602-08200-00

$3.20

15

SWITCH

J51-82817-00-00

$137.99

16

SCREW, BINDING

98907-04020-00

Unavailable

17

NUT, U (7LY)

95617-04100-00

Unavailable

18

WIRE, LEAD

8GL-82541-00-00

Unavailable

19

BOLT, FLANGE

95022-08016-00

Unavailable

20

CLAMP

90462-10022-00

Unavailable

21

CLAMP

90462-08007-00

Unavailable

22

CLAMP

90464-16011-00

Unavailable

23

COVER

8GL-47716-00-00

Unavailable

24

RIVET

90269-08005-00

Unavailable

25

RIVET

90269-07012-00

Unavailable

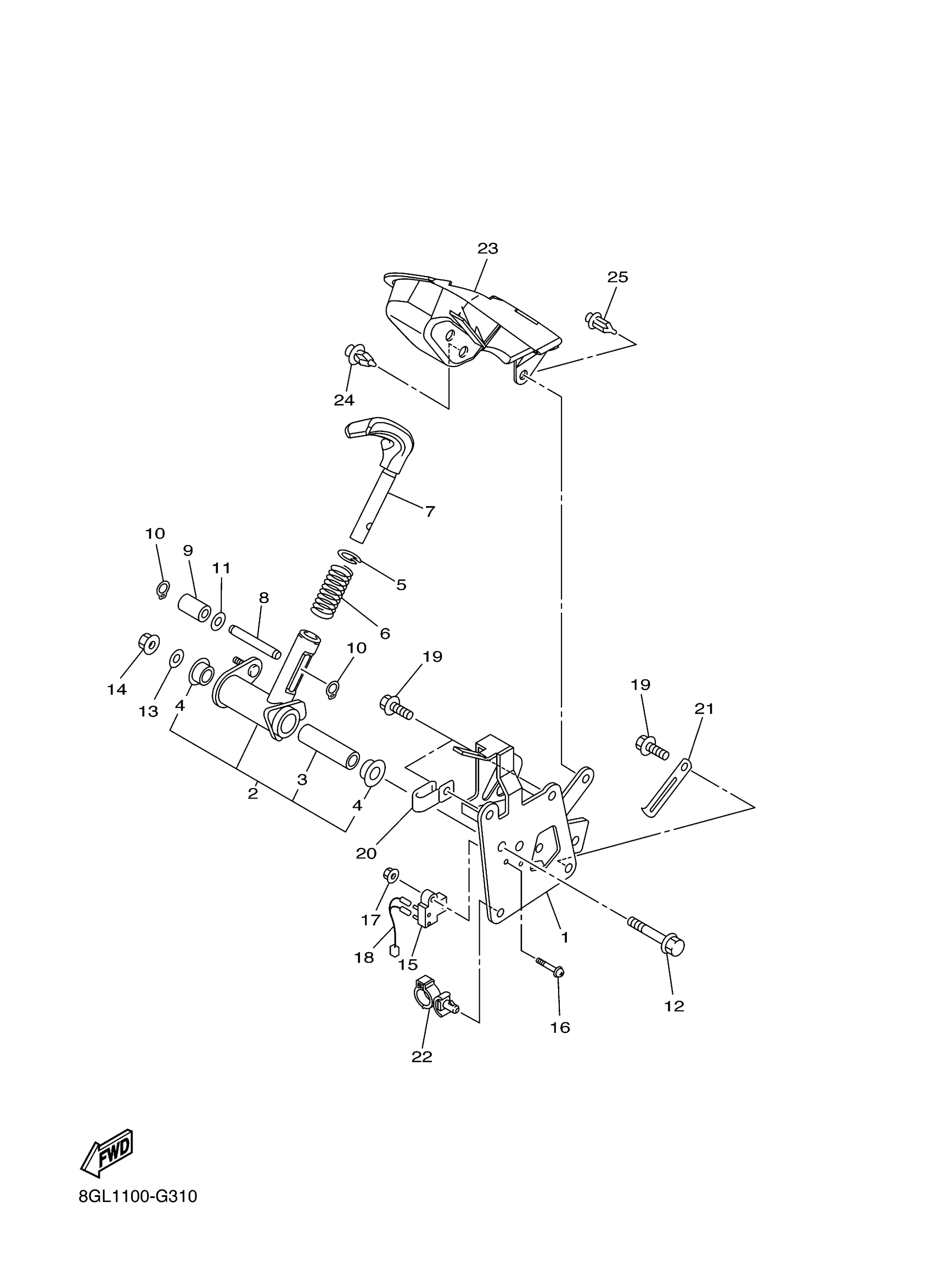

Yamaha FX10MTRAXW (FX NYTRO MTX 40TH ANNIVERSARY) 8HA7 2008 TRACK DRIVE 3 Diagram

GUIDE, PLATE STOPPER

ARM, SHIFT

SHAFT 6

BUSH(J41)

CIRCLIP(13H)

SPRING, COMPRESSION

KNOB, SHIFT LEVER

PIN (8FA1)

COLLAR (8FA1)

CIRCLIP (J10)

WASHER, PLATE (8U7)

BOLT, FLANGE(JN5)

WASHER, PLATE

NUT, SELF-LOCKING

SWITCH

SCREW, BINDING

NUT, U (7LY)

WIRE, LEAD

BOLT, FLANGE

CLAMP

CLAMP

CLAMP

COVER

RIVET

RIVET
