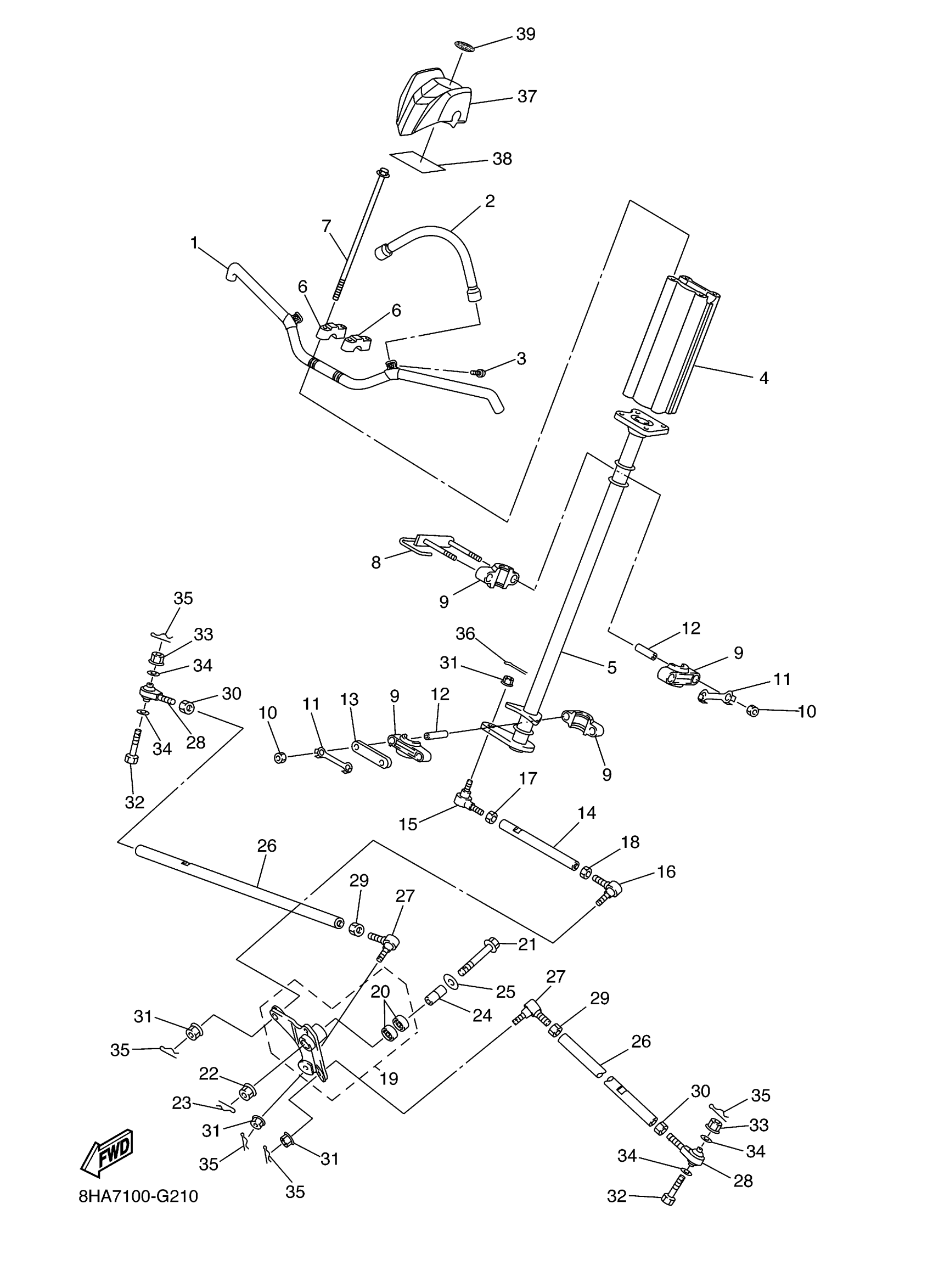

Yamaha FX10MTRAXW (FX NYTRO MTX 40TH ANNIVERSARY) 8HA7 2008 STEERING Diagram

#

Description
Price

1

HANDLEBAR

8HA-26111-00-00

$354.99

2

STRAP, STRG

8GE-23829-00-00

$137.99

3

BOLT, BUTTON HEAD

92012-06020-00

$8.49

4

JOINT

8HA-2381B-00-00

Unavailable

5

COLUMN, STEERING 2

8GL-23813-00-00

$206.99

6

HOLDER, HANDLE UPPER

1E6-23441-00-00

$27.99

7

BOLT

8GT-23876-00-00

$10.49

8

HOLDER, BEARING

8GL-23872-00-00

Unavailable

9

PLANE BEARING, STEERING

8FA-23812-00-00

$6.99

10

NUT(6L2)

95333-08600-00

$2.49

11

WASHER, LOCK 1

1UY-23894-01-00

$7.99

12

COLLAR

90387-09006-00

$7.49

13

HOLDER 2

8FA-23867-00-00

Unavailable

14

ROD, STEERING RELAY

8GL-23821-00-00

Unavailable

15

JOINT, UNIVERSAL 2

8CR-23845-10-00

$62.99

16

JOINT, UNIVERSAL 3

8CR-23847-00-00

Unavailable

17

NUT (682)

95380-10700-00

Unavailable

18

NUT, HEXAGON (8A5)

90170-10186-00

Unavailable

19

ARM PIVOT ASSY

8GL-2389K-00-00

Unavailable

20

BEARING

93317-420A7-00

Unavailable

21

BOLT, FLANGE

90105-12070-00

Unavailable

22

NUT, SELF-LOCKING

95602-12200-00

Unavailable

23

PIN, COTTER

91490-20035-00

Unavailable

24

COLLAR

8GL-2412G-00-00

Unavailable

25

WASHER, PLATE

90201-13016-00

Unavailable

26

ROD, TIE

8HA-23831-00-00

Unavailable

27

JOINT, UNIVERSAL 2

8CR-23845-10-00

$62.99

28

JOINT, UNIVERSAL 3

8GC-23847-00-00

Unavailable

29

NUT (682)

95380-10700-00

Unavailable

30

NUT, HEXAGON (8A5)

90170-10186-00

Unavailable

31

NUT, FLANGE(3BM)

95704-10500-00

Unavailable

32

BOLT

8GC-23493-00-00

Unavailable

33

NUT,FLANGE(J10)

95702-08500-00

Unavailable

34

WASHER, PLATE

90201-06018-00

Unavailable

35

PIN, COTTER (648)

91490-20015-00

Unavailable

36

PIN, COTTER

91490-20025-00

Unavailable

37

PROTECTOR, HANDLEBAR

8GL-26124-00-00

Unavailable

38

DAMPER

8GL-26113-00-00

Unavailable

39

EMBLEM, 3D

8GY-2164B-00-00

Unavailable
