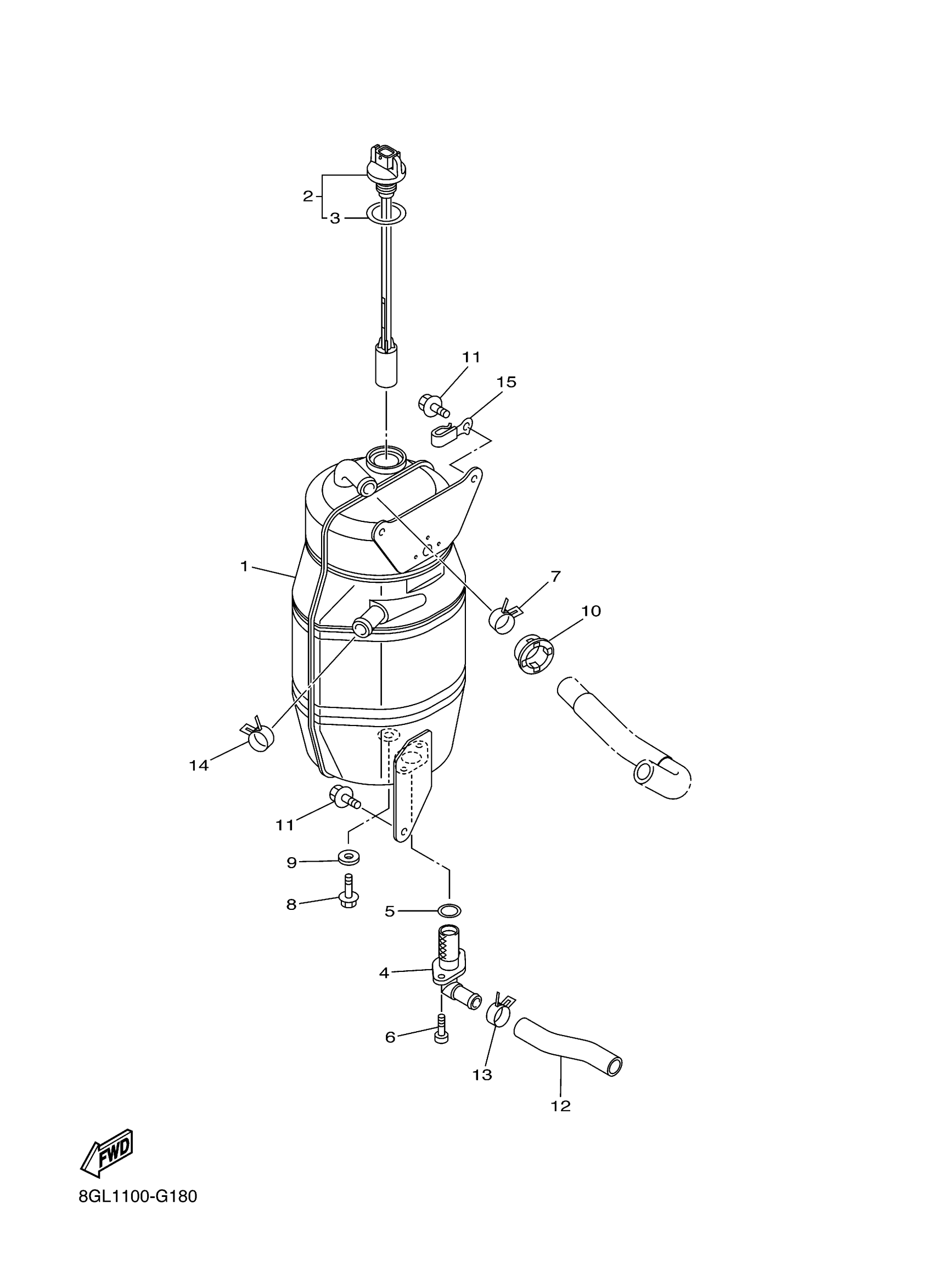

Yamaha FX10MTRAXW (FX NYTRO MTX 40TH ANNIVERSARY) 8HA7 2008 OIL TANK Diagram

#

Description
Price

1

TANK, OIL

8GL-21751-01-00

Unavailable

2

OIL LEVEL GAUGE ASSY

8GL-85720-00-00

$60.99

3

O-RING

8FP-85075-00-00

$11.49

4

OIL PIPE COMP. 2

8GL-13406-00-00

$121.99

5

O-RING

93210-24001-00

$8.49

6

BOLT(3MA)

91312-06016-00

$5.60

7

CLIP(34X)

90467-22097-00

$9.49

8

BOLT, FLANGE

95817-08012-00

$5.49

9

GASKET(3AJ)

90430-08204-00

$8.99

10

GROMMET

90480-27001-00

Unavailable

11

BOLT, FLANGE

95817-06016-00

$2.75

12

HOSE, OIL 2

8GL-13465-00-00

$8.49

13

CLIP(34X)

90467-22097-00

$9.49

14

CLIP(34X)

90467-22097-00

$9.49

15

CLAMP(4MX)

90465-06376-00

$9.49
