Description

Price

1

BUMPER, FRONT 1

8GL-77511-00-00

$288.99

2

BOLT, FLANGE

95812-08020-00

$2.80

3

BUMPER, REAR 1

8GL-77541-01-00

Unavailable

4

BOLT, FLANGE

95812-08020-00

$2.80

5

PLUG (7Y6)

90338-21145-00

$14.99

6

RIVET, BLIND

90267-47200-00

$2.75

7

COVER, SIDE 3

8GL-21731-00-00

Unavailable

8

COVER, SIDE 4

8GL-21741-00-00

Unavailable

9

RIVET

90269-08006-00

$2.97

10

COVER, TAIL

8GL-24756-00-00

Unavailable

11

SCREW, BINDING

90154-06009-00

$4.61

12

COVER, TAILLIGHT

8GL-84516-00-00

Unavailable

13

COVER

8FS-84544-00-00

Unavailable

14

BOLT

90109-06174-00

$9.49

15

PROTECTOR 1

8GL-77551-00-00

$48.99

16

PROTECTOR 2

8GL-77552-00-00

Unavailable

17

PROTECTOR 3

8GL-77553-00-00

Unavailable

18

PROTECTOR 4

8GL-77554-00-00

Unavailable

19

PROTECTOR 5

8GL-77555-00-00

Unavailable

20

PROTECTOR 5

8GL-77555-10-00

Unavailable

21

PROTECTOR 6

8GL-77556-00-00

Unavailable

22

PROTECTOR 7

8GL-77557-00-00

Unavailable

23

TAPE 1

8GL-7717E-00-00

Unavailable

24

LINING, SHROUD 1

8GL-77261-00-00

Unavailable

25

FLAP

8GT-K7595-00-00

Unavailable

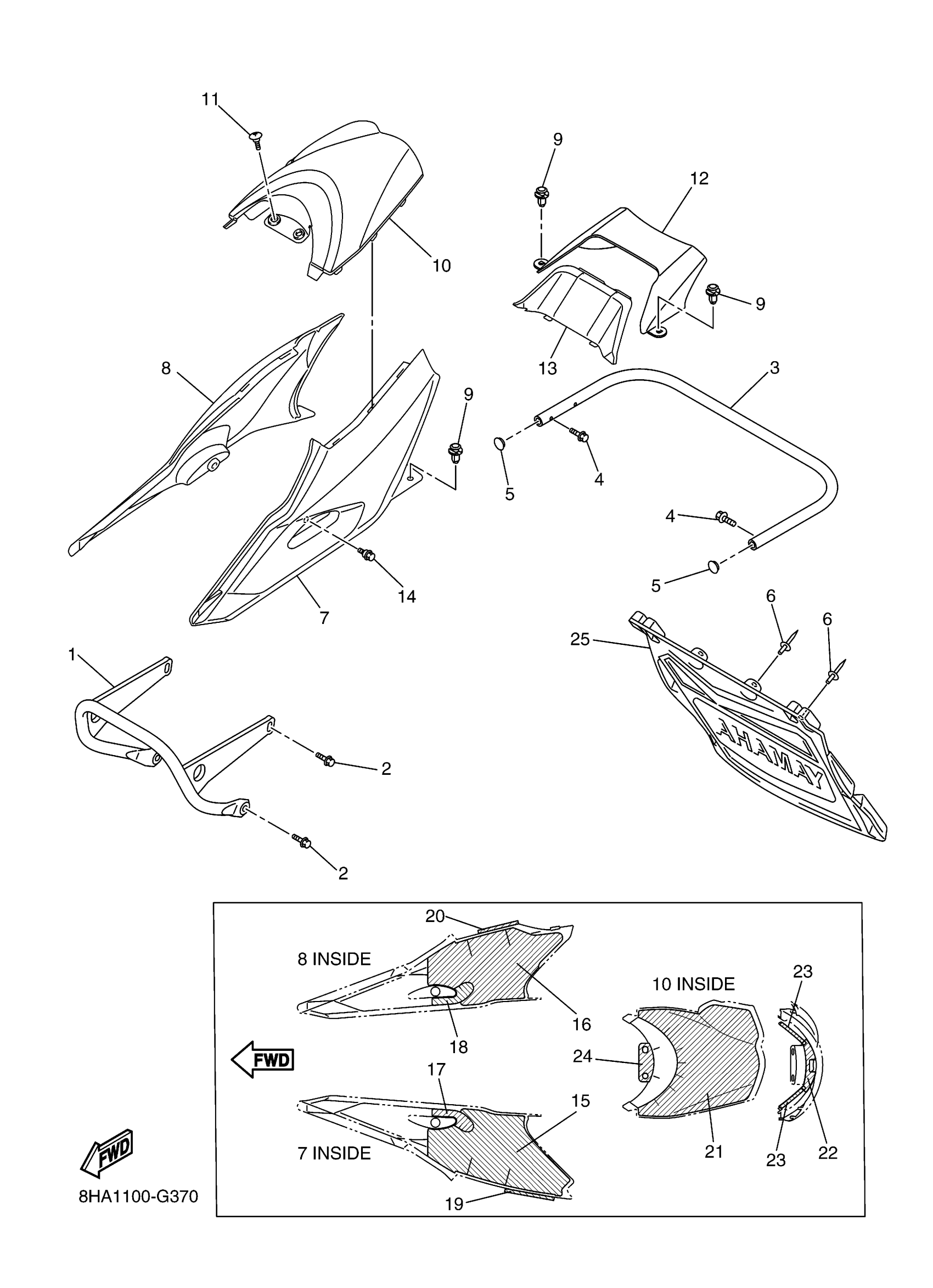

Yamaha FX10MTRAXW (FX NYTRO MTX 40TH ANNIVERSARY) 8HA7 2008 BUMPER Diagram

BUMPER, FRONT 1

BOLT, FLANGE

BUMPER, REAR 1

BOLT, FLANGE

PLUG (7Y6)

RIVET, BLIND

COVER, SIDE 3

COVER, SIDE 4

RIVET

COVER, TAIL

SCREW, BINDING

COVER, TAILLIGHT

COVER

BOLT

PROTECTOR 1

PROTECTOR 2

PROTECTOR 3

PROTECTOR 4

PROTECTOR 5

PROTECTOR 5

PROTECTOR 6

PROTECTOR 7

TAPE 1

LINING, SHROUD 1

FLAP
