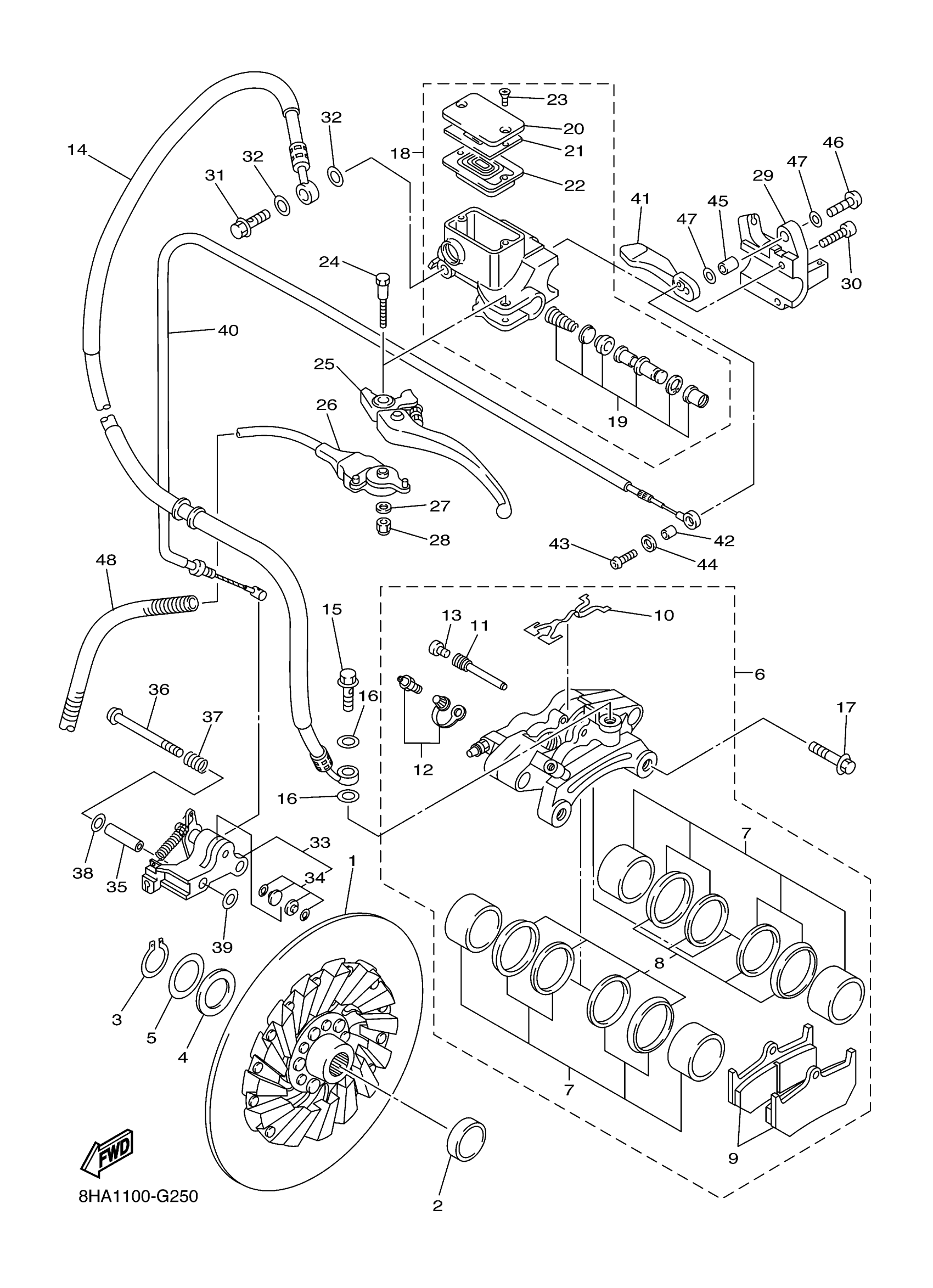

Yamaha FX10MTRAXW (FX NYTRO MTX 40TH ANNIVERSARY) 8HA7 2008 BRAKE Diagram

#

Description
Price

1

DISK BRAKE ASSY

8GL-2581T-00-00

Unavailable

2

COLLAR

90387-25021-00

Unavailable

3

CIRCLIP(1EY)

99009-22400-00

$8.49

4

WASHER, PLATE (8L8)

90201-225A4-00

$9.49

5

WASHER, PLATE (T=0.5)

90201-222F0-00

Unavailable

6

CALIPER ASSY (LEFT)

8GL-2580T-00-00

Unavailable

7

PISTON ASSY, CALIPER

8FU-W0057-00-00

Unavailable

8

CALIPER SEAL KIT

3JD-W0047-10-00

Unavailable

9

BRAKE PAD KIT 2

8FU-W0046-01-00

$64.99

10

SUPPORT, PAD

8FU-25919-00-00

Unavailable

11

PIN, PAD

8FU-25924-00-00

Unavailable

12

BLEED SCREW KIT

8CR-W0048-00-00

$13.49

13

BOLT

8CR-25926-00-00

Unavailable

14

HOSE, BRAKE 1

8HA-25872-00-00

Unavailable

15

BOLT, UNION

90401-10015-00

$11.49

16

WASHER, PLATE(481)

90201-10118-00

Unavailable

17

BOLT, FLANGE

90105-10096-00

Unavailable

18

MASTER CYLINDER SUB ASSY

8FA-W2587-00-00

Unavailable

19

CYLINDER KIT, MASTER

8CR-W0041-00-00

Unavailable

20

CAP, RESERVOIR

8CR-25852-00-00

Unavailable

21

PLATE, DIAPHRAGM

3GM-2585B-20-00

Unavailable

22

DIAPHRAGM, RESERVOIR

55U-25854-00-00

Unavailable

23

SCREW, FLAT

98707-04012-00

Unavailable

24

BOLT, LEVER

8CR-2589F-00-00

Unavailable

25

LEVER 1

8DN-83912-00-00

Unavailable

26

STOP SWITCH ASSY

8HA-82530-00-00

Unavailable

27

WASHER, PLAIN

8CR-8398X-00-00

Unavailable

28

NUT, NYLON

95707-05300-00

Unavailable

29

BRACKET, MASTER CYLINDER

8FA-25867-00-00

Unavailable

30

BOLT

5YU-26332-00-00

Unavailable

31

BOLT, UNION

90401-10015-00

$11.49

32

WASHER, PLATE(481)

90201-10118-00

Unavailable

33

PARKING BRAKE COMP.

8FU-25970-01-00

Unavailable

34

PARKING BRAKE PAD KIT

8FA-W0045-00-00

Unavailable

35

COLLAR

90387-06058-00

Unavailable

36

BOLT

90111-06042-00

Unavailable

37

SPRING, COMPRESSION

90501-120A0-00

Unavailable

38

WASHER 6474553400

90201-12161-00

Unavailable

39

WASHER, PLATE

90201-06095-00

Unavailable

39

WASHER, PLATE

90201-06095-00

Unavailable

40

CABLE, BRAKE

8HA-26351-10-00

Unavailable

41

LEVER 2

8FA-83922-00-00

Unavailable

42

COLLAR

90387-06043-00

Unavailable

43

BOLT, BUTTON HEAD

92012-06014-00

Unavailable

44

WASHER, PLATE

90201-06089-00

Unavailable

45

COLLAR

90387-081M9-00

Unavailable

46

BOLT,HEX. SOCKET BUTTON

90111-08054-00

Unavailable

47

WASHER PLATE 141181390000

90201-08085-00

Unavailable

48

TUBE, CORD

8HA-82351-00-00

Unavailable
