- FX10M62SZL (FX NYTRO MTX SE 162) 8HR10 2010
TRACK SUSPENSION 1

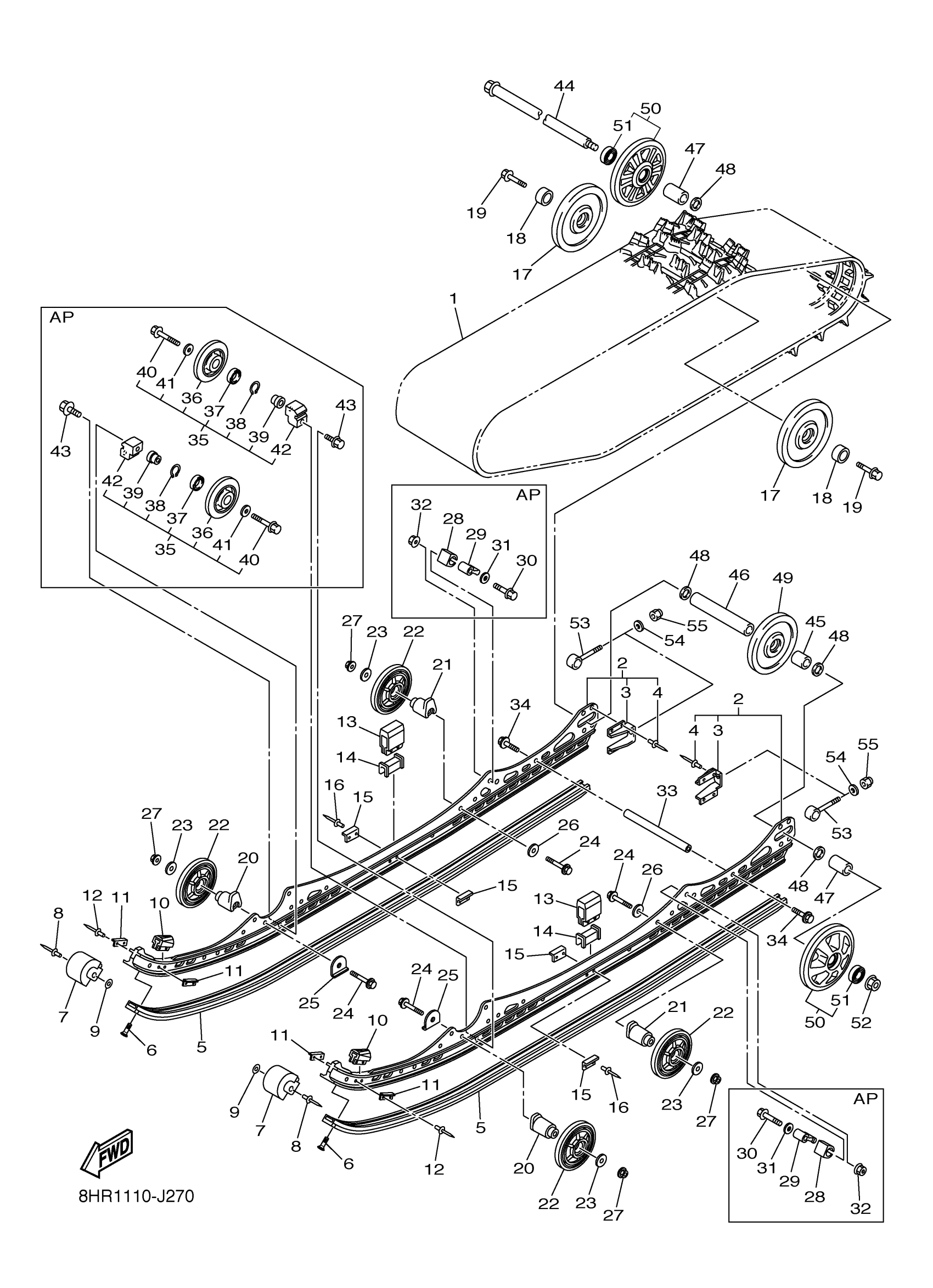

Yamaha FX10M62SZL (FX NYTRO MTX SE 162) 8HR10 2010 TRACK SUSPENSION 1 Diagram
#
1
TRACK ASSY
8HR-47110-10-00
Unavailable
2
FRAME, SLIDING
8HR-W4741-00-00
Unavailable
3
BRACKET
8DM-4741B-00-00
$45.99
4
RIVET
8V0-47468-00-00
$10.49
5
FX NYTRO 162" HP WIDE HYFAX
SMA-8HR92-00-BK
Unavailable
6
SCREW, CROSSRECESS (8G6)
90151-06005-00
$9.49
7
RUNNER, SLIDING 2
8GL-47422-00-00
$30.99
8
RIVET BLIND
90267-48194-00
$3.28
9
WASHER, PLATE(8CM)
90201-047R8-00
$3.02
10
DAMPER 1
8ES-47456-00-00
$6.99
11
PLATE, DAMPER
8K2-47458-01-00
$4.77
12
RIVET, BLIND
90267-48199-00
$3.76
13
DAMPER 2
8GL-47457-00-00
Unavailable
14
SPACER
8GL-47573-00-00
Unavailable
15
PLATE, DAMPER
8AX-47458-00-00
$10.99
16
RIVET, BLIND
90267-48199-00
$3.76
17
GUIDE WHEEL ASSY
8AC-47550-00-00
Unavailable
18
COLLAR
90387-25005-00
Unavailable
19
BOLT
90109-10032-00
Unavailable
20
BRACKET 7
8ES-47419-20-00
Unavailable
21
BRACKET 7
8ES-47419-00-00
Unavailable
22
SUSPENSION WHEEL ASSY
8FS-47310-01-00
Unavailable
23
WASHER, PLATE
90201-10038-00
Unavailable
24
BOLT, FLANGE
95812-10080-00
Unavailable
25
WASHER, CLAW
90214-10004-00
Unavailable
26
WASHER, PLATE
90201-10052-00
Unavailable
27
NUT, S/L FLANGE
95602-10200-00
Unavailable
28
STOPPER 2
8GC-47496-00-00
Unavailable
29
COLLAR
8GN-47338-00-00
Unavailable
30
BOLT, HEXAGON
97017-10050-00
Unavailable
31
WASHER, PLATE
90201-10061-00
Unavailable
32
NUT, S/L FLANGE
95602-10200-00
Unavailable
33
SHAFT 3
8ES-47485-00-00
Unavailable
34
BOLT, FLANGE
90105-10209-00
Unavailable
35
SUSPENSION WHEEL COMP.
8GP-47320-10-00
Unavailable
36
SUSPENSION WHEEL COMP.
8AC-47320-00-00
Unavailable
37
BEARING(8AB)
93306-00444-00
Unavailable
38
CIRCLIP(5U8)
99009-42500-00
Unavailable
39
COLLAR
8GP-47319-00-00
Unavailable
40
BOLT, FLANGE (8V9)
95812-10045-00
Unavailable
41
WASHER, PLATE
90201-10052-00
Unavailable
42
BRACKET 7
8GP-47419-10-00
Unavailable
43
BOLT, FLANGE
95817-10030-00
Unavailable
44
REAR AXLE COMP.
8L8-47520-10-00
Unavailable
45
COLLAR
90387-20015-00
Unavailable
46
COLLAR
90387-20016-00
Unavailable
47
COLLAR
90387-20019-00
Unavailable
48
WASHER, PLATE
90201-20022-00
Unavailable
49
GUIDE WHEEL ASSY
8CR-47550-10-00
Unavailable
50
REAR WHEEL BLK 178MM
SMA-8FP38-02-BK
Unavailable
51
BEARING(8AB)
93306-00444-00
Unavailable
52
NUT, U FLANGE
95602-14200-00
Unavailable
53
COLLAR 3
8DM-47479-00-00
Unavailable
54
WASHER, PLATE
92990-10600-00
Unavailable
55
NUT, NYLON
95707-10300-00
Unavailable
