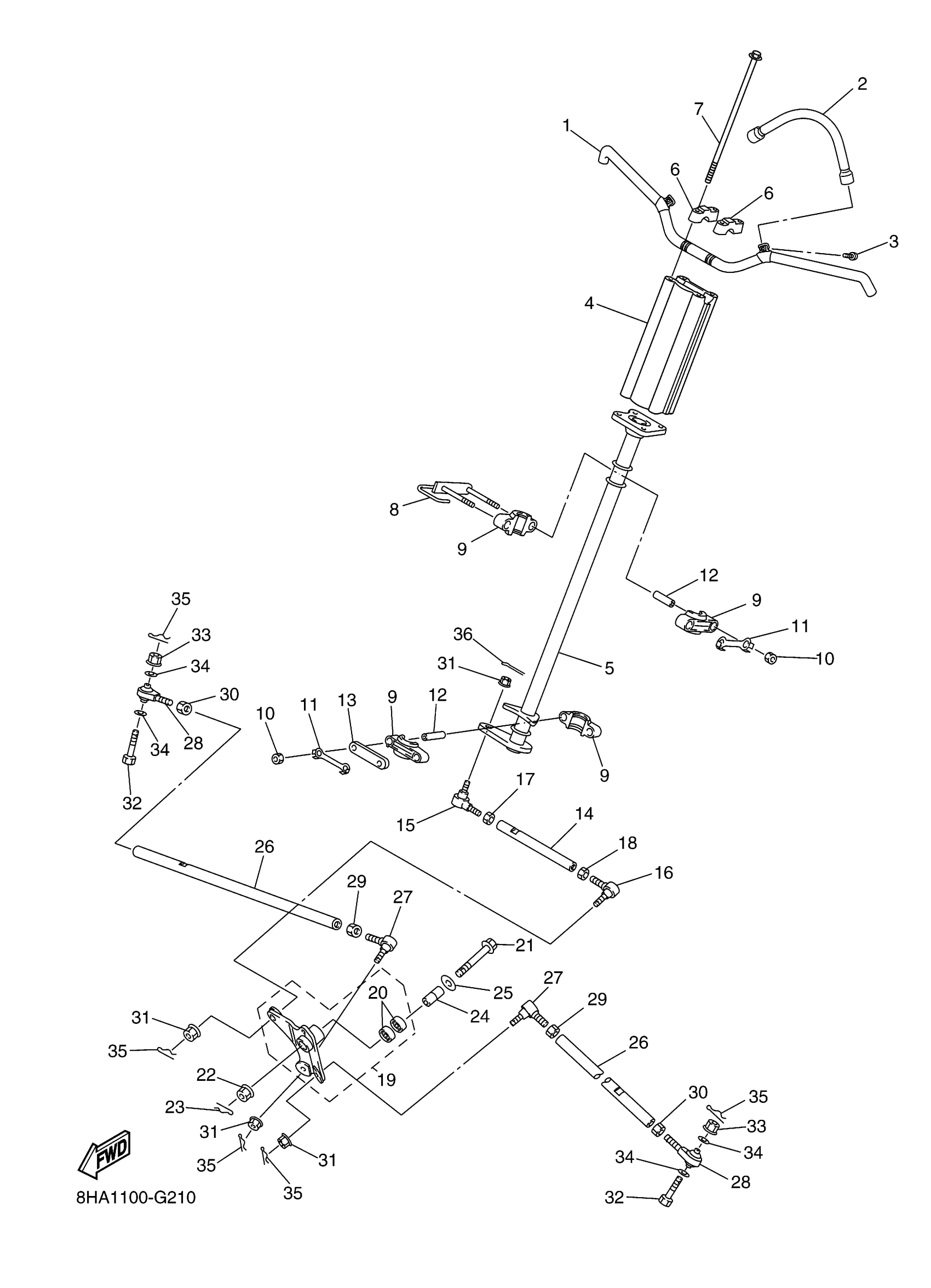

Yamaha FX10M62SZL (FX NYTRO MTX SE 162) 8HR10 2010 STEERING Diagram
#
1
HANDLEBAR
8HA-26111-00-00
$354.99
2
STRAP, STRG
8GE-23829-00-00
$137.99
3
BOLT, BUTTON HEAD
92012-06020-00
$8.49
4
JOINT
8HA-2381B-00-00
Unavailable
5
COLUMN, STEERING 2
8GL-23813-00-00
$206.99
6
HOLDER, HANDLE UPPER
1E6-23441-00-00
$27.99
7
BOLT
8GT-23876-00-00
$10.49
8
HOLDER, BEARING
8GL-23872-00-00
Unavailable
9
PLANE BEARING, STEERING
8FA-23812-00-00
$6.99
10
NUT(6L2)
95333-08600-00
$2.49
11
WASHER, LOCK 1
1UY-23894-01-00
$7.99
12
COLLAR
8HF-2412G-00-00
Unavailable
13
HOLDER 2
8FA-23867-00-00
Unavailable
14
ROD, STEERING RELAY
8GL-23821-00-00
Unavailable
15
JOINT, UNIVERSAL 2
8CR-23845-10-00
$62.99
16
JOINT, UNIVERSAL 3
8CR-23847-00-00
Unavailable
17
NUT (682)
95380-10700-00
Unavailable
18
NUT, HEXAGON (8A5)
90170-10186-00
Unavailable
19
ARM PIVOT ASSY
8GL-2389K-00-00
Unavailable
20
BEARING
93317-420A7-00
Unavailable
21
BOLT, FLANGE
90105-12070-00
Unavailable
22
NUT, SELF-LOCKING
95602-12200-00
Unavailable
23
PIN, COTTER
91490-20035-00
Unavailable
24
COLLAR
8GL-2412G-00-00
Unavailable
25
WASHER, PLATE
90201-13016-00
Unavailable
26
ROD, TIE
8HK-23831-00-00
Unavailable
27
JOINT, UNIVERSAL 2
8CR-23845-10-00
$62.99
28
JOINT, UNIVERSAL 3
8GC-23847-00-00
Unavailable
29
NUT (682)
95380-10700-00
Unavailable
30
NUT, HEXAGON (8A5)
90170-10186-00
Unavailable
31
NUT, FLANGE(3BM)
95704-10500-00
Unavailable
32
BOLT
8GC-23493-00-00
Unavailable
33
NUT,FLANGE(J10)
95702-08500-00
Unavailable
34
WASHER, PLATE
90201-06018-00
Unavailable
35
PIN, COTTER (648)
91490-20015-00
Unavailable
36
PIN, COTTER
91490-20025-00
Unavailable
