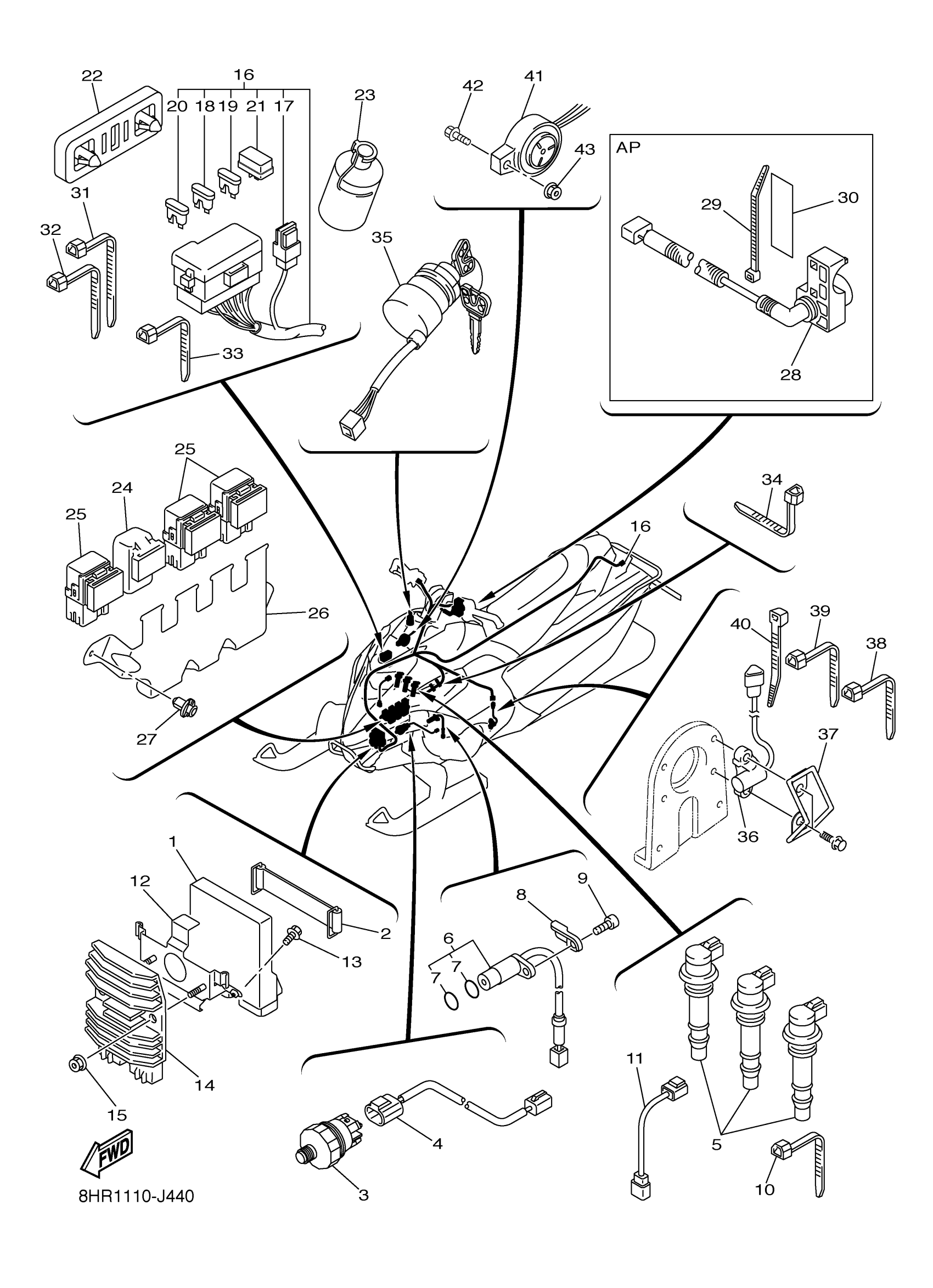

Yamaha FX10M62SZL (FX NYTRO MTX SE 162) 8HR10 2010 ELECTRICAL 1 Diagram
#
1
ENGINE CONTROL UNIT ASSY
8HA-8591A-00-00
Unavailable
2
BAND, BATTERY
2T4-82131-00-00
$8.99
3
OIL PRESSURE SWITCH
8FP-82504-01-00
$71.99
4
WIRE, SUB-LEAD
8GL-82318-00-00
$26.99
5
IGNITION COIL ASSY
8ES-82310-00-00
$159.99
6
PICK-UP ASSY
8GL-81670-01-00
$140.99
7
O-RING 1
5VY-8A8E1-00-00
$6.99
8
PLATE
5VY-15589-02-00
$4.99
9
BOLT,SOCKET
91317-06016-00
$1.25
10
CLAMP(4FM)
90464-15195-00
$4.41
11
LEAD WIRE ASSY
8GL-81515-00-00
Unavailable
12
BRACKET, UNIT
8GL-85991-00-00
$23.99
13
BOLT, FLANGE
95022-06010-00
$5.60
14
RECTIFIER & REGULATOR ASSY
1D7-81960-01-00
$323.99
15
NUT, U FLANGE
95604-06200-00
$8.49
16
WIRE HARNESS ASSY
8HR-82590-00-00
Unavailable
17
SLOW BLOW FUSE
JR9-82151-00-00
Unavailable
18
. FUSE (10A)
67F-82151-40-00
Unavailable
19
FUSE
5JJ-82151-20-00
Unavailable
20
. FUSE (3A)
67F-82151-30-00
Unavailable
21
DIODE ASSY
4WA-81980-00-00
Unavailable
22
BRACKET
8FA-83614-00-00
Unavailable
23
COVER
8GL-8252U-00-00
Unavailable
24
RELAY ASSY
5DM-81950-01-00
Unavailable
25
RELAY ASSY (8FP-01)
8FP-81950-01-00
Unavailable
26
HOLDER, RELAY
8GL-81952-00-00
Unavailable
27
RIVET
90269-08006-00
Unavailable
28
TERMINAL COMP.
8HK-8254B-00-00
Unavailable
29
CLAMP(3XW)
90464-35132-00
Unavailable
30
DAMPER
8HF-84527-00-00
Unavailable
31
CLAMP(4FM)
90464-15195-00
$4.41
32
CLAMP(4FM)
90464-15195-00
$4.41
33
CLAMP
90464-13077-00
Unavailable
34
BAND, SWITCH CORD
25G-83936-01-00
Unavailable
35
MAIN SWITCH ASSY
8GL-82510-00-00
Unavailable
36
SENSOR, SPEED
8GL-83755-00-00
Unavailable
37
COVER 2
8GC-2198G-00-00
Unavailable
38
CLAMP(4FM)
90464-15195-00
$4.41
39
CLAMP(3XW)
90464-35132-00
Unavailable
40
CLAMP(4FM)
90464-15195-00
$4.41
41
BUZZER
8GL-83383-00-00
Unavailable
42
SCREW, WITH WASHER
90159-05035-00
Unavailable
43
NUT, FLANGE
95702-05500-00
Unavailable
