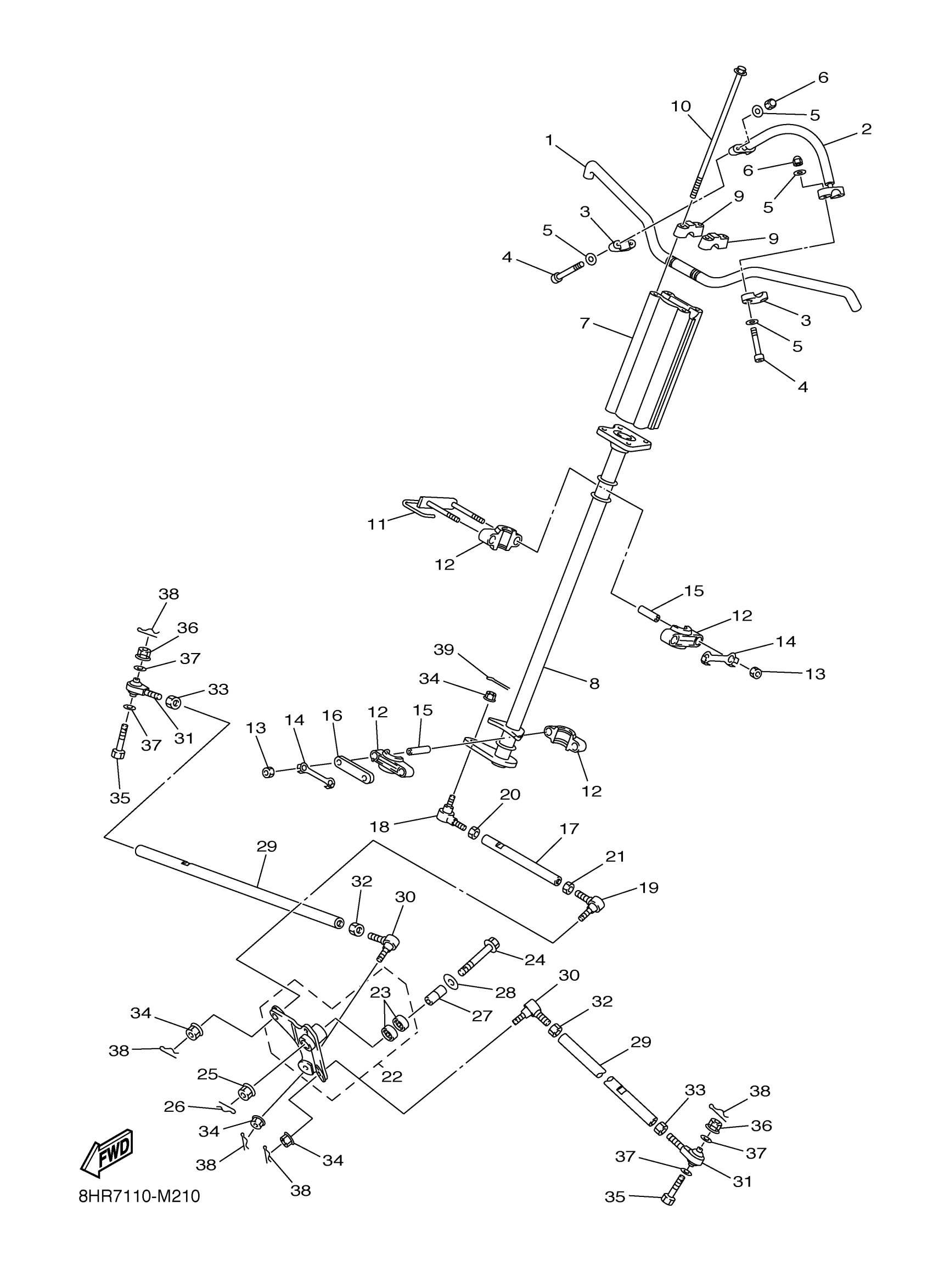

Yamaha FX10M62SEL (FX NYTRO MTX 162) 8HR90 2014 STEERING Diagram
#
1
HANDLEBAR
8HB-26111-00-00
Unavailable
2
STRAP, STRG
8HR-23829-00-00
$146.99
3
BRACKET 2
8HR-23882-00-00
$43.99
4
BOLT, SOCKET
91314-06040-00
$8.49
5
WASHER, PLATE
90201-06016-00
$4.72
6
NUT (J17)
95380-06800-00
$8.49
7
JOINT
8HA-2381B-00-00
Unavailable
8
COLUMN, STEERING 2
8GL-23813-00-00
$206.99
9
HOLDER, HANDLE UPPER
1E6-23441-00-00
$27.99
10
BOLT
8GT-23876-00-00
$10.49
11
HOLDER, BEARING
8GL-23872-00-00
Unavailable
12
PLANE BEARING, STEERING
8FA-23812-00-00
$6.99
13
NUT(6L2)
95333-08600-00
$2.49
14
WASHER, LOCK 1
1UY-23894-01-00
$7.99
15
COLLAR
8HF-2412G-00-00
Unavailable
16
HOLDER 2
8FA-23867-00-00
Unavailable
17
ROD, STEERING RELAY
8GL-23821-00-00
Unavailable
18
JOINT, UNIVERSAL 2
8CR-23845-10-00
Unavailable
19
JOINT, UNIVERSAL 3
8CR-23847-00-00
Unavailable
20
NUT (682)
95380-10700-00
Unavailable
21
NUT, HEXAGON (8A5)
90170-10186-00
Unavailable
22
ARM PIVOT ASSY
8GL-2389K-00-00
Unavailable
23
BEARING
93317-420A7-00
Unavailable
24
BOLT, FLANGE
90105-12070-00
Unavailable
25
NUT, SELF-LOCKING
95602-12200-00
Unavailable
26
PIN, COTTER
91490-20035-00
Unavailable
27
COLLAR
8GL-2412G-00-00
Unavailable
28
WASHER, PLATE
90201-13016-00
Unavailable
29
ROD, TIE
8HK-23831-00-00
Unavailable
30
JOINT, UNIVERSAL 2
8CR-23845-10-00
Unavailable
31
JOINT, UNIVERSAL 3
8GC-23847-00-00
Unavailable
32
NUT (682)
95380-10700-00
Unavailable
33
NUT, HEXAGON (8A5)
90170-10186-00
Unavailable
34
NUT, FLANGE(3BM)
95704-10500-00
Unavailable
35
BOLT
8GC-23493-00-00
Unavailable
36
NUT,FLANGE(J10)
95702-08500-00
Unavailable
37
WASHER, PLATE
90201-06018-00
Unavailable
38
PIN, COTTER (648)
91490-20015-00
Unavailable
39
PIN, COTTER
91490-20025-00
Unavailable
