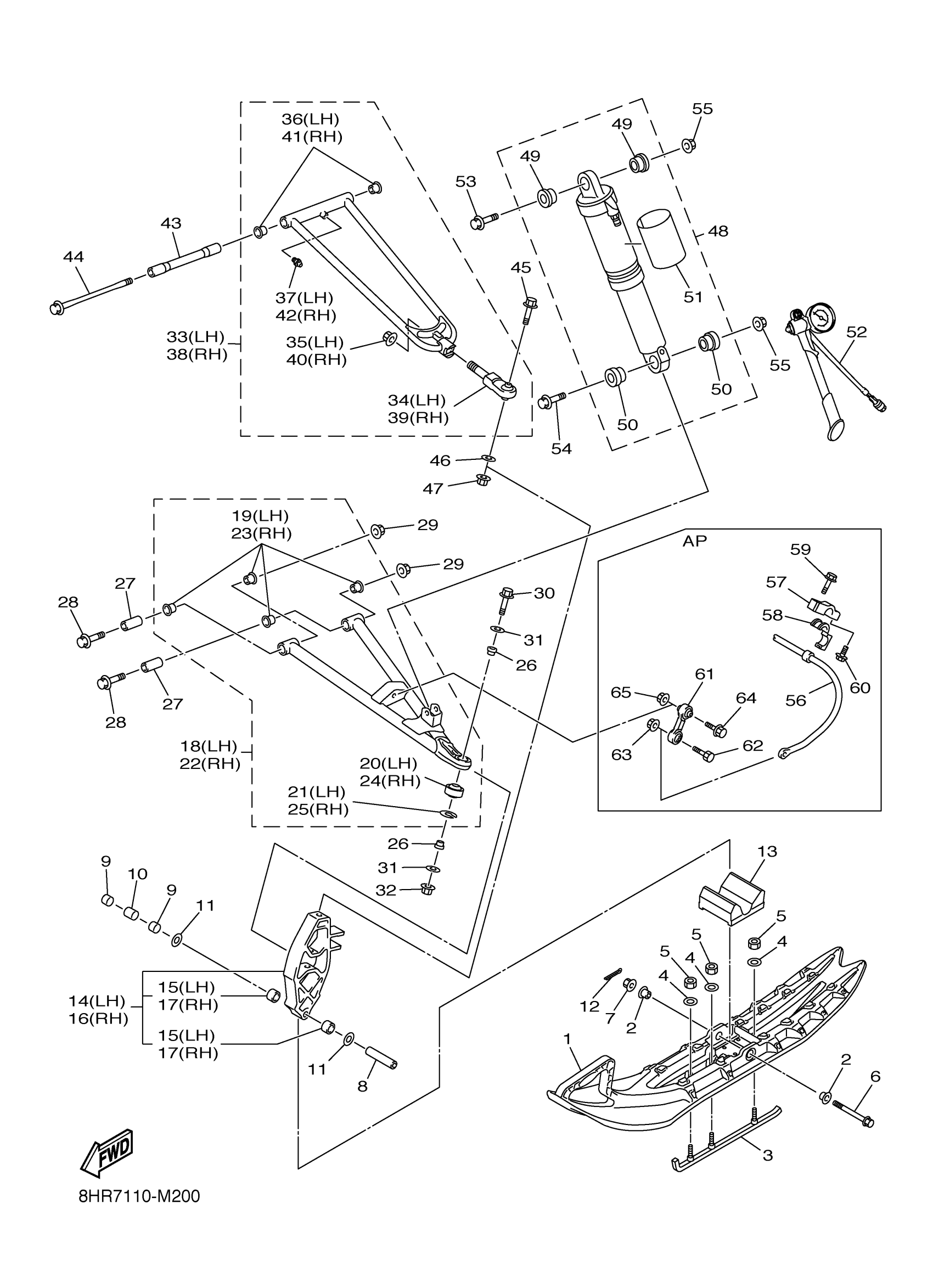

Yamaha FX10M62SDL (FX NYTRO MTX 162) 8HR70 2013 SKI Diagram
#
1
GYTR MT9 PERFORMANCE SKI
SMA-23711-00-BK
Unavailable
2
COLLAR, 1
8EX-23754-00-00
Unavailable
3
SKI RUNNER 11MM SQ, 3" FOR MT9
SMA-F3731-30-03
Unavailable
11
WASHER, PLATE
90201-16033-00
Unavailable
16
STEERING KNUCKLE ASSY (RIGHT)
8HK-23502-10-00
Unavailable
18
FRONT LOWER ARM COMP. (LEFT)
8JH-23570-00-00
Unavailable
19
BUSH, SOLID
90381-18N51-00
Unavailable
20
BALL JOINT 2
8HK-23579-00-00
Unavailable
21
CIRCLIP (IR)(93450-35015 SUPER
99009-35700-00
Unavailable
22
FRONT LOWER ARM COMP. (RIGHT)
8JH-23580-00-00
Unavailable
23
BUSH, SOLID
90381-18N51-00
Unavailable
24
BALL JOINT 2
8HK-23579-00-00
Unavailable
25
CIRCLIP (IR)(93450-35015 SUPER
99009-35700-00
Unavailable
26
COLLAR, 1
8HK-23754-00-00
Unavailable
27
COLLAR
90387-10065-00
Unavailable
28
BOLT, FLANGE
90105-10211-00
Unavailable
30
BOLT, FLANGE
90105-10318-00
Unavailable
31
WASHER, PLATE
90201-10052-00
Unavailable
33
FRONT UPPER ARM COMP. (LEFT)
8JH-23540-00-00
Unavailable
34
BALL JOINT 1
8GK-23549-00-00
Unavailable
35
NUT, U FLANGE
95602-14200-00
Unavailable
36
BUSH, SOLID
90381-18N51-00
Unavailable
37
NIPPLE, GREASE
93700-06M03-00
Unavailable
38
FRONT UPPER ARM COMP. (RIGHT)
8JH-23550-00-00
Unavailable
39
BALL JOINT 1
8GK-23549-00-00
Unavailable
40
NUT, U FLANGE
95602-14200-00
Unavailable
41
BUSH, SOLID
90381-18N51-00
Unavailable
42
NIPPLE, GREASE
93700-06M03-00
Unavailable
43
COLLAR 1
8JH-23373-00-00
Unavailable
44
BOLT, FLANGE
90105-10213-00
Unavailable
45
BOLT
91312-10045-00
Unavailable
46
WASHER, PLATE
90201-10052-00
Unavailable
48
ABSORBER ASSY 1
8HR-F376A-00-00
Unavailable
49
BUSH
8HR-2376B-09-00
Unavailable
50
BUSH
8HR-2376B-19-00
Unavailable
51
. LABEL, WARNING
8HR-F2259-00-00
Unavailable
52
FOX MEGA FLOAT PUMP
SMA-MEGAF-PU-MP
Unavailable
53
BOLT, FLANGE
90105-10122-00
Unavailable
54
BOLT, FLANGE
90105-10209-00
Unavailable
56
BAR, STABILIZER FRONT
8GN-2386E-00-00
Unavailable
56
BAR, STABILIZER FRONT
8GN-2386E-10-00
Unavailable
56
BAR, STABILIZER FRONT
8GN-2386E-20-00
Unavailable
57
HOLDER, STABILIZER FRONT
8GL-2386C-00-00
Unavailable
58
BUSH, STABILIZER FRONT
8GN-2386G-00-00
Unavailable
58
BUSH, STABILIZER FRONT
8GN-2386G-10-00
Unavailable
58
BUSH, STABILIZER FRONT
8GN-2386G-20-00
Unavailable
59
BOLT, BUTTON HEAD
92012-08030-00
Unavailable
60
BOLT, BUTTON HEAD
92012-08016-00
Unavailable
61
JOINT, STABILIZER 1
8GN-2385L-10-00
Unavailable
62
BOLT(6TA)
97017-10035-00
Unavailable
64
BOLT, FLANGE
95817-08040-00
Unavailable
65
NUT, SELF-LOCKING
95602-08200-00
Unavailable
