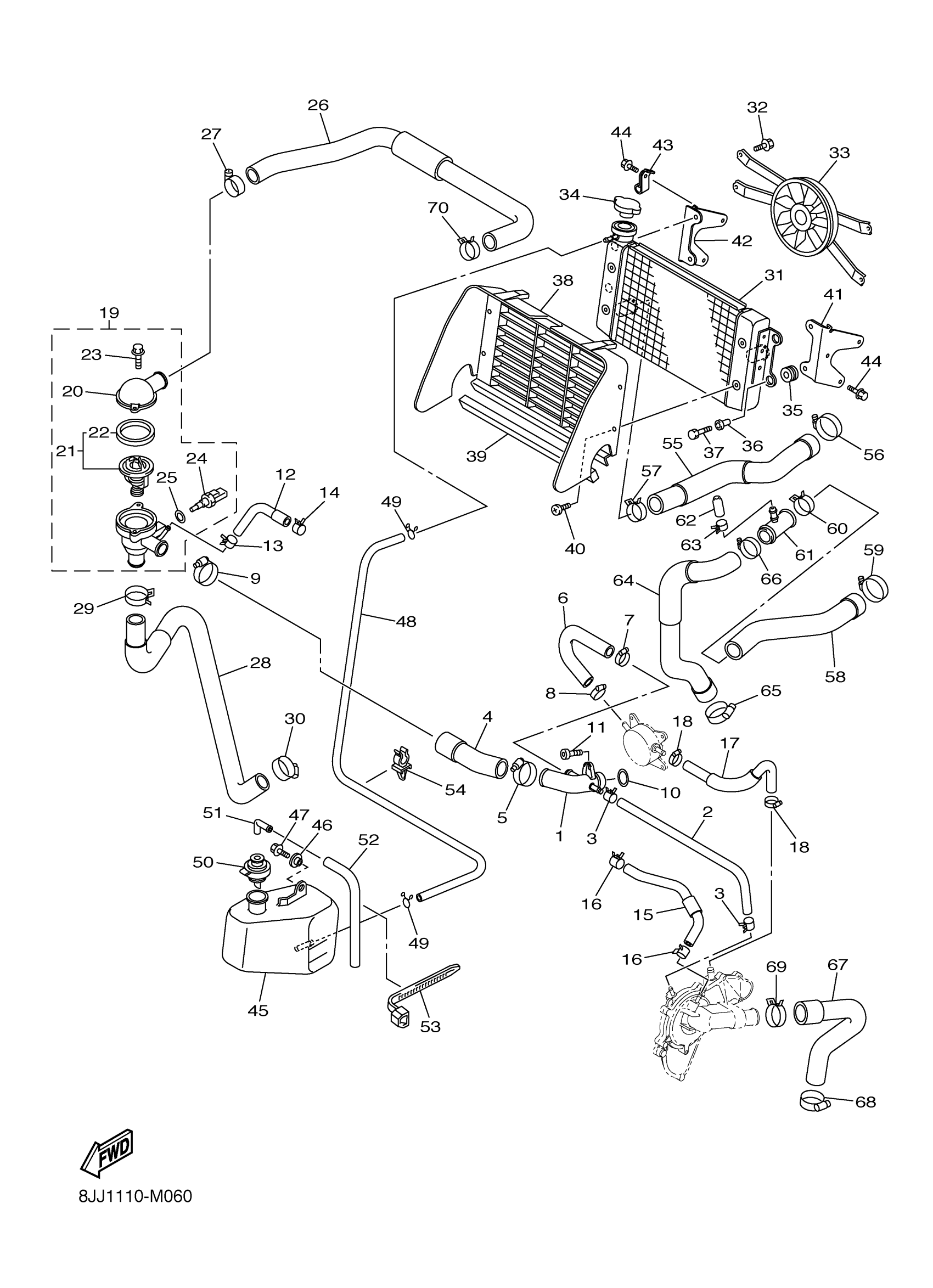

Yamaha FX10M62SDL (FX NYTRO MTX 162) 8HR70 2013 RADIATOR HOSE Diagram
#
1
PIPE 2
8GL-12482-00-00
Unavailable
2
PIPE 5
8GL-12485-00-00
$11.49
3
CLIP
90467-110A2-00
Unavailable
4
HOSE 2
8GL-1243E-00-00
Unavailable
5
HOSE CLAMP ASSY
90450-35001-00
$5.60
6
HOSE 6
8GL-12589-00-00
Unavailable
7
HOSE CLAMP ASSY
90450-18M09-00
Unavailable
8
HOSE CLAMP ASSY
90450-18M09-00
Unavailable
9
HOSE CLAMP ASSY
90450-35001-00
$5.60
10
O-RING
93210-235A1-00
$7.49
11
BOLT(3MA)
91312-06016-00
$5.60
12
HOSE 2
8GL-12577-00-00
Unavailable
13
CLIP
90467-110A2-00
Unavailable
14
CLIP
90467-120A5-00
$8.49
15
HOSE 3
8GL-12578-00-00
Unavailable
16
CLIP
90467-110A2-00
Unavailable
17
HOSE 5
8ES-12588-00-00
Unavailable
18
HOSE CLAMP ASSY
90450-18M09-00
Unavailable
19
JOINT ASSY
8GL-12580-10-00
Unavailable
20
COVER, THERMOSTAT
8FP-12413-00-00
Unavailable
21
THERMOSTAT ASSY
8FP-12410-00-00
Unavailable
22
SEAL, THERMOSTAT
8FP-12412-00-00
Unavailable
23
BOLT, FLANGE
95022-06020-00
Unavailable
24
THERMOSENSOR ASSY
5YP-85790-00-00
Unavailable
25
WASHER, PLATE
90201-12790-00
Unavailable
26
HOSE, 4
8GL-1244G-01-00
Unavailable
27
HOSE CLAMP ASSY(3GM)
90450-38040-00
Unavailable
28
PIPE 8
8GL-1248A-00-00
Unavailable
29
HOSE CLAMP ASSY
90450-35001-00
$5.60
30
CLIP (8M6)
90467-28046-00
Unavailable
31
RADIATOR ASSY
8GL-12461-00-00
Unavailable
32
BOLT, BLOWER HOLDING
5GJ-12675-00-00
Unavailable
33
BLOWER ASSY
8GL-12405-00-00
Unavailable
34
CAP, RADIATOR
5SL-12462-01-00
Unavailable
35
GROMMET (29L)
90480-15363-00
Unavailable
36
COLLAR 437216330000
90387-07391-00
Unavailable
37
BOLT, HEXAGON
97017-06025-00
Unavailable
38
DUCT
8GL-12661-00-00
Unavailable
39
DAMPER, RADIATOR
8GL-12465-00-00
Unavailable
40
SCREW (5G6)
90149-06165-00
Unavailable
41
STAY, RADIATOR
8GL-12464-01-00
Unavailable
42
STAY, RADIATOR
8GL-12464-11-00
Unavailable
43
HOLDER, BRAKE HOSE
8GL-25886-00-00
Unavailable
44
BOLT, FLANGE
95817-06016-00
Unavailable
45
TANK, RECOVERY
8GL-21871-00-00
Unavailable
46
COLLAR
90387-06071-00
Unavailable
47
BOLT, FLANGE
95817-06016-00
Unavailable
48
HOSE (L1500)
90445-090F6-00
Unavailable
49
CLIP 101235600
90467-08003-00
Unavailable
50
CAP
8GL-21875-00-00
Unavailable
51
ELBOW
26H-21828-00-00
Unavailable
52
HOSE (L180)
90445-094K7-00
Unavailable
53
CLAMP(4FM)
90464-15195-00
Unavailable
54
CLAMP
90464-09008-00
Unavailable
55
HOSE 5
8HA-1244H-00-00
Unavailable
56
HOSE CLAMP ASSY
90450-35001-00
$5.60
57
CLIP (8M6)
90467-28046-00
Unavailable
58
HOSE 7
8HA-12551-00-00
Unavailable
59
HOSE CLAMP ASSY
90450-35001-00
$5.60
60
HOSE CLAMP ASSY
90450-35001-00
$5.60
61
PIPE 1
8HA-12481-00-00
Unavailable
62
PLUG, BLIND
16G-13569-00-00
Unavailable
63
CLIP
90467-11028-00
Unavailable
64
HOSE 8
8HA-12552-00-00
Unavailable
65
HOSE CLAMP ASSY
90450-35001-00
$5.60
66
HOSE CLAMP ASSY
90450-35001-00
$5.60
67
HOSE 6
8GL-1244J-00-00
Unavailable
68
HOSE CLAMP ASSY
90450-35001-00
$5.60
69
CLIP
90467-310A0-00
Unavailable
70
CLIP (8M6)
90467-28046-00
Unavailable
