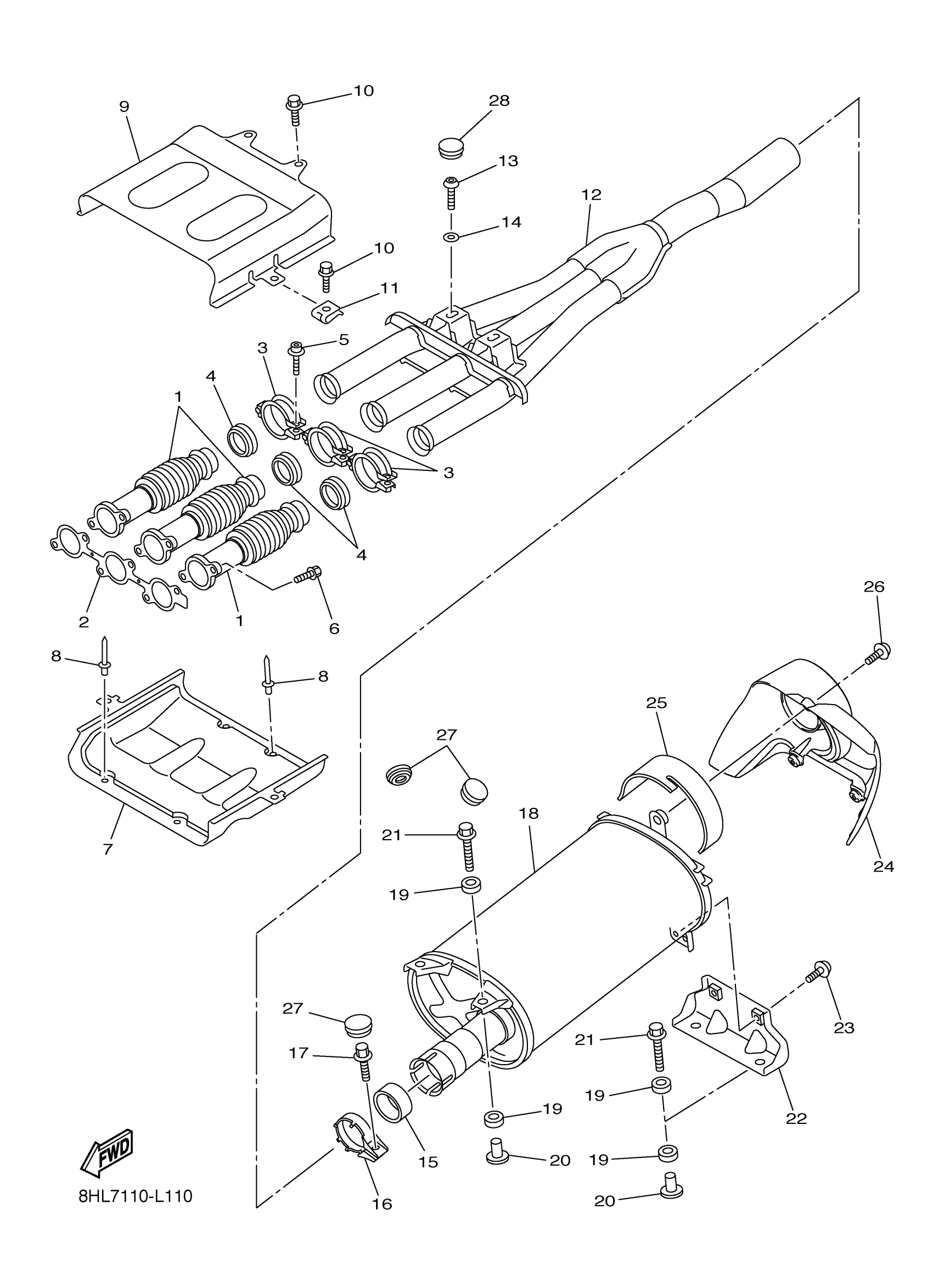

Yamaha FX10M62SDL (FX NYTRO MTX 162) 8HR70 2013 EXHAUST Diagram

#

Description
Price

1

JOINT, EXHAUST 1

8GL-14615-00-00

$145.23

2

GASKET, EXHAUST PIPE

8GL-14613-00-00

$17.28

3

BAND, MUFFLER

8FA-14715-00-00

$31.11

4

GASKET, EXHAUST PIPE

8FA-14623-10-00

$26.90

5

BOLT

90109-06031-00

$1.80

6

BOLT, FLANGE

95022-08020-00

$6.34

7

COVER, EXHAUST

8GL-14627-00-00

Unavailable

8

RIVET, BLIND

90267-47195-00

$3.12

9

EXHAUST COVER ASS'Y

8GL-14637-00-00

Unavailable

10

BOLT, FLANGE

95812-06010-00

$2.71

11

NUT, SPRING

90183-060A0-00

Unavailable

12

EXHAUST PIPE ASSY 1

8GL-14610-11-00

Unavailable

13

BOLT, BUTTON HEAD

92012-08025-00

$5.37

14

WASHER, PLAIN

92990-08200-00

$2.36

15

GASKET, MUFFLER

8GL-14714-00-00

$31.03

16

BAND, SILENCER

8GL-14789-00-00

Unavailable

17

BOLT, FLANGE

95812-08020-00

Unavailable

18

SILENCER ASSY

8GL-14750-00-00

Unavailable

19

DAMPER, MUFFLER

8GL-14737-00-00

Unavailable

20

COLLAR

90387-08071-00

Unavailable

21

BOLT, WITH WASHER

90119-08112-00

Unavailable

22

BRACKET

8GL-14744-00-00

Unavailable

23

BOLT, BUTTON HEAD

92012-08012-00

Unavailable

24

CAP

8GL-14799-00-00

Unavailable

25

PROTECTOR, MUFFLER 1

8GL-14718-00-00

Unavailable

26

SCREW, WITH WASHER

90159-06005-00

Unavailable

27

PLUG

90338-20004-00

Unavailable

28

PLUG

90338-20007-00

Unavailable
