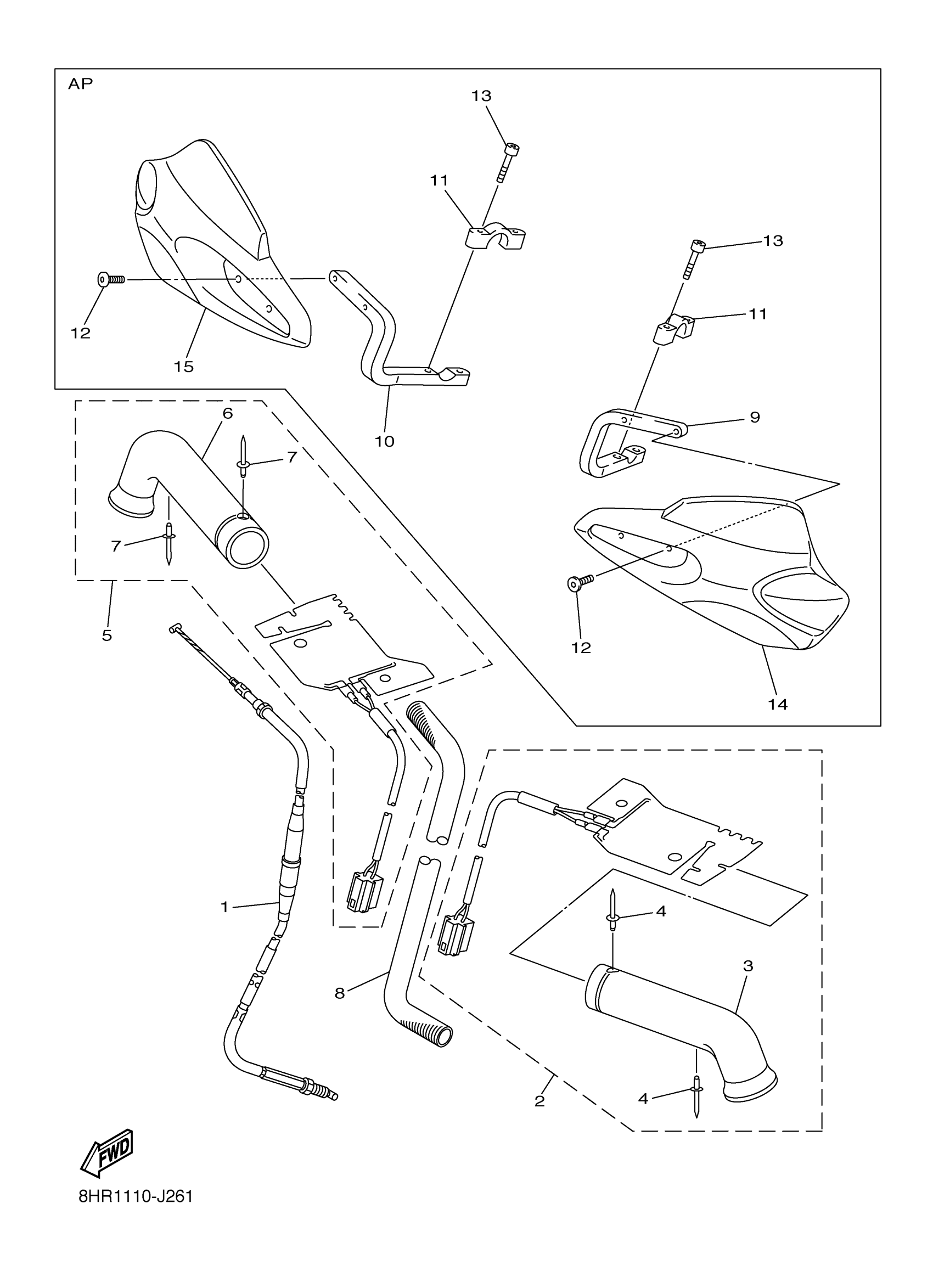

Yamaha FX10M62SDL (FX NYTRO MTX 162) 8HR70 2013 CONTROL CABLE Diagram

#

Description

Price

1

CABLE, THROTTLE 1

8HA-26311-00-00

$79.61

2

GRIP WARMER

99999-04172-00

$109.87

3

GRIP

8HR-26241-01-00

$22.78

4

RIVET (856)

90267-48014-00

$2.90

5

GRIP WARMER

99999-04173-00

$109.76

6

GRIP

8HR-26241-01-00

$22.78

7

RIVET (856)

90267-48014-00

$2.90

8

TUBE, CORD

8HA-82351-00-00

$7.33

9

BRACKET 3

8GL-2612L-01-00

$57.15

10

BRACKET 4

8GL-2612M-01-00

$60.85

11

BRKT 2

8GL-2612K-00-00

$16.66

12

BOLT

90109-06234-00

$5.70

13

BOLT

91312-05030-00

$2.80

14

GUARD, BRUSH 1

8GL-26141-30-00

$24.46

15

GUARD, BRUSH 2

8GL-26142-30-00

$24.46
