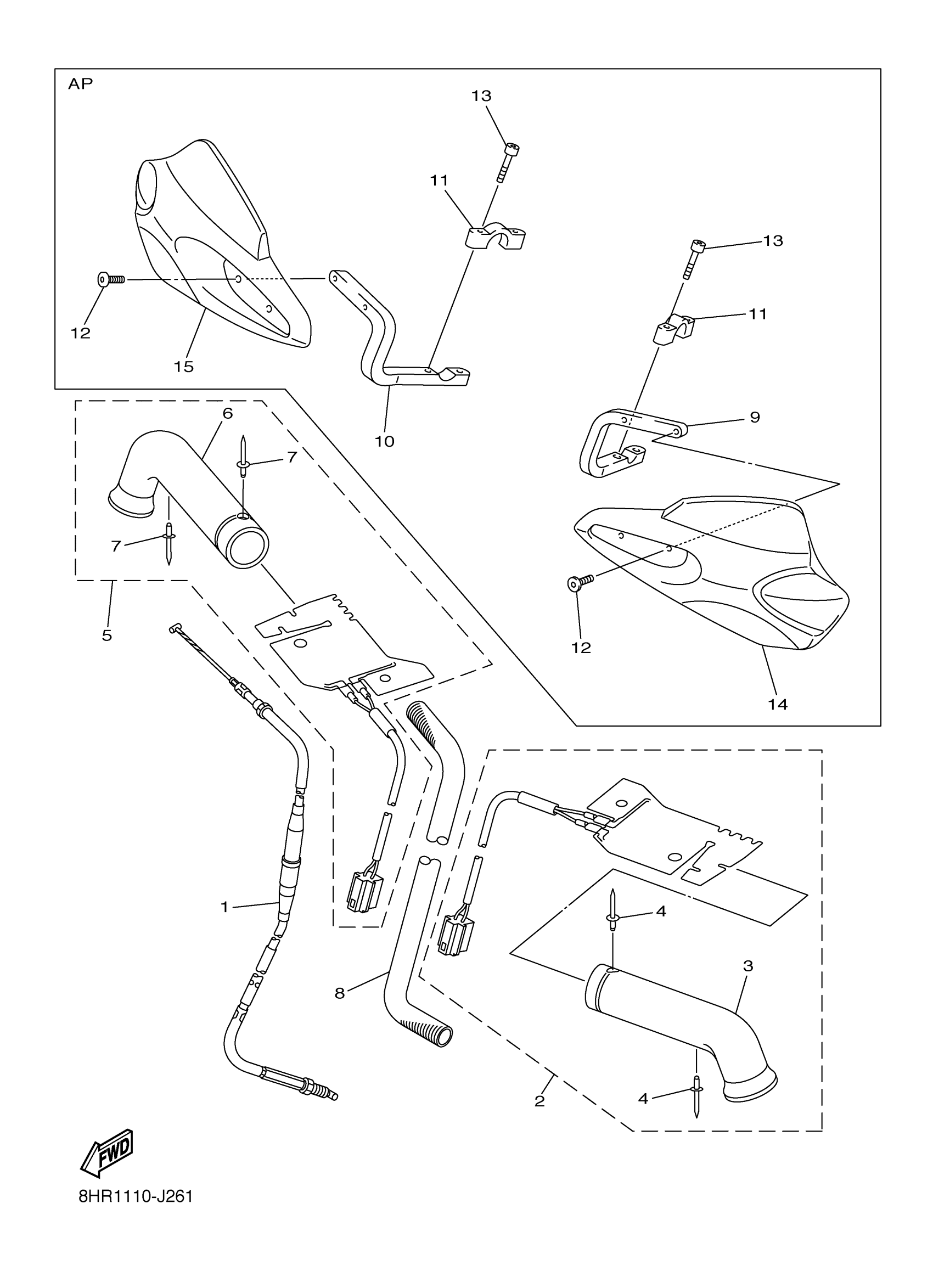

Yamaha FX10M62SBL (FX NYTRO MYX SE 162) 8HR50 2012 CONTROL CABLE Diagram

#

Description

Price

1

CABLE, THROTTLE 1

8HA-26311-00-00

$80.82

2

GRIP WARMER

99999-04172-00

$111.53

3

GRIP

8HR-26241-01-00

$23.12

4

RIVET (856)

90267-48014-00

$2.90

5

GRIP WARMER

99999-04173-00

$111.42

6

GRIP

8HR-26241-01-00

$23.12

7

RIVET (856)

90267-48014-00

$2.90

8

TUBE, CORD

8FP-82351-00-00

Unavailable

9

BRACKET 3

8GL-2612L-01-00

$58.02

10

BRACKET 4

8GL-2612M-01-00

$61.77

11

BRKT 2

8GL-2612K-00-00

$16.91

12

BOLT

90109-06234-00

$5.79

13

BOLT

91312-05030-00

$2.80

14

GUARD, BRUSH 1

8GL-26141-30-00

$24.83

15

GUARD, BRUSH 2

8GL-26142-30-00

$24.83
