- FX10M62SAL (FX NYTRO MTX SE 162) 8HR30 2011
TRACK SUSPENSION 2

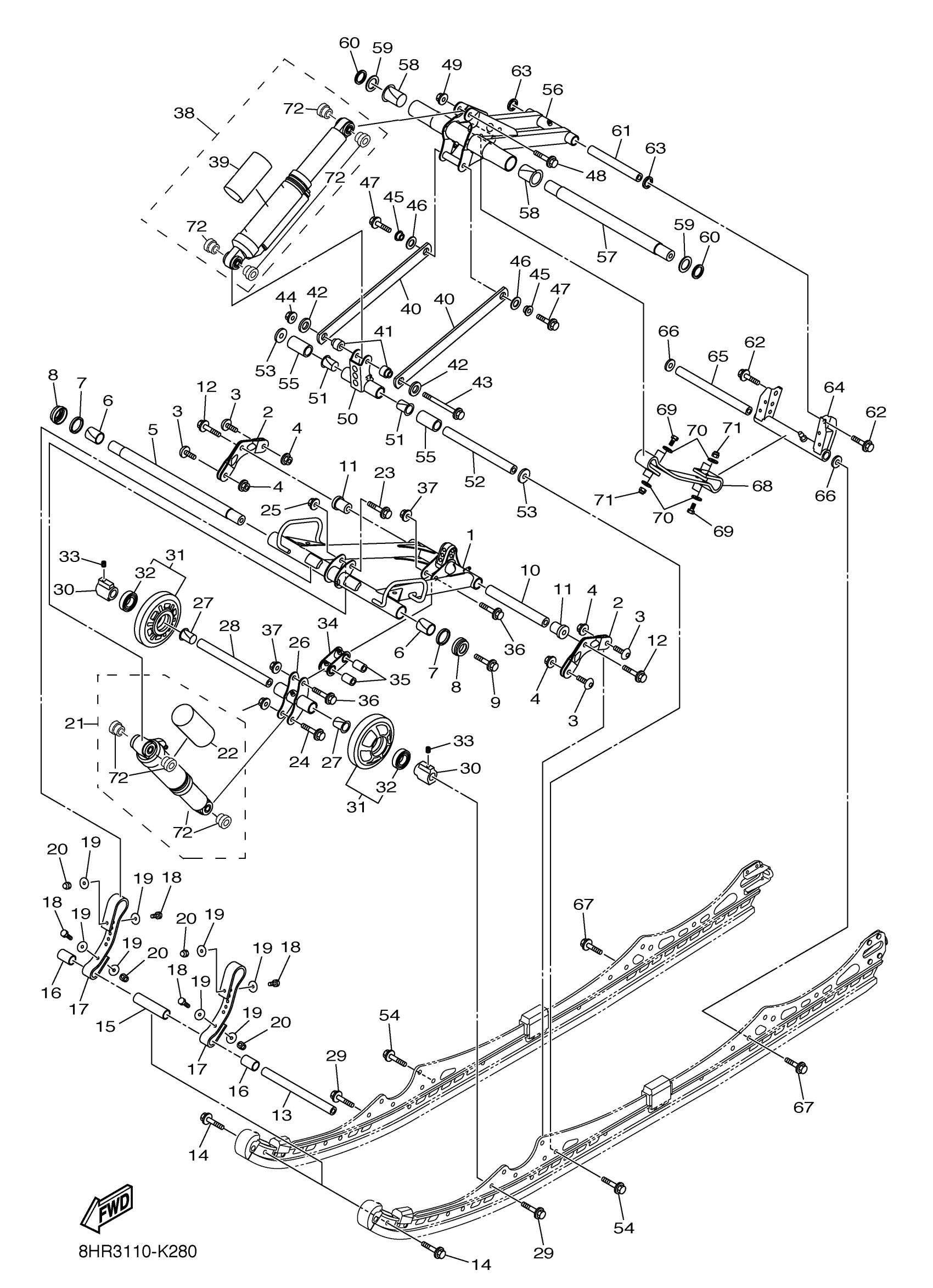

Yamaha FX10M62SAL (FX NYTRO MTX SE 162) 8HR30 2011 TRACK SUSPENSION 2 Diagram
#
1
ARM, PIVOT 1
8HR-47331-00-00
Unavailable
2
BRACKET 1
8HR-47415-00-00
$28.99
3
BOLT,HEX. SOCKET BUTTON
90111-10037-00
$4.46
4
NUT, S/L FLANGE
95602-10200-00
$4.82
5
SHAFT 1
8HL-47465-00-00
Unavailable
6
BUSH, FORMED
90383-23001-00
$60.99
7
OIL SEAL(37F)
93108-37011-00
$7.49
8
SPACER
8HF-47341-00-00
$25.99
9
BOLT
90109-10032-00
$8.49
10
SHAFT 4
8ES-47486-00-00
$40.99
11
COLLAR
90387-10022-00
$18.99
12
BOLT, FLANGE
90105-10209-00
$8.49
13
SHAFT 3
8ES-47485-00-00
$55.99
14
BOLT, FLANGE
90105-10209-00
$8.49
15
COLLAR
90387-19002-00
$7.49
16
COLLAR
90387-19001-00
Unavailable
17
STOPPER 1
8HR-47495-00-00
Unavailable
18
BOLT, HEXAGON
97017-06025-00
Unavailable
19
WASHER, PLATE
90201-06081-00
Unavailable
20
NUT, NYLON
95707-06300-00
Unavailable
21
SHOCK ABSORBER 2
8HR-47481-00-00
Unavailable
22
. LABEL, WARNING
8HR-22259-10-00
Unavailable
23
BOLT, FLANGE
90105-10295-00
Unavailable
24
BOLT, FLANGE
90105-10295-00
Unavailable
25
NUT, S/L FLANGE
95602-10200-00
$4.82
26
BRACKET, ARM PIVOT
8HR-47349-10-00
Unavailable
27
BUSH
90386-20001-00
Unavailable
28
SHAFT 5
8GN-47487-00-00
Unavailable
29
BOLT, FLANGE
90105-10209-00
$8.49
30
COLLAR
8ES-47319-01-00
Unavailable
31
WHEEL BLK 130MM
SMA-8FP38-01-BK
Unavailable
32
BRG,R-B 6005 47MM 85G KY
93306-00507-00
Unavailable
33
BOLT, SET (8K2)
90113-06039-00
Unavailable
34
BRACKET 2
8FK-47416-01-00
Unavailable
35
COLLAR
90387-10024-00
Unavailable
36
BOLT, FLANGE (8V9)
95812-10045-00
Unavailable
37
NUT, S/L FLANGE
95602-10200-00
$4.82
38
SHOCK ABSORBER
8HR-47480-01-00
Unavailable
39
. LABEL, WARNING
8HR-22259-40-00
Unavailable
40
RELAY ROD ASSY
8HR-47490-00-00
Unavailable
41
COLLAR 2
8HR-47366-00-00
Unavailable
42
WASHER, PLATE
90201-16027-00
Unavailable
43
BOLT, FLANGE
90105-10338-00
Unavailable
44
NUT, S/L FLANGE
95602-10200-00
$4.82
45
COLLAR 2
8HR-47366-10-00
Unavailable
46
WASHER, PLATE
90201-16027-00
Unavailable
47
BOLT, FLANGE
95817-10030-00
Unavailable
48
BOLT, FLANGE
90105-10283-00
Unavailable
49
NUT, S/L FLANGE
95602-10200-00
$4.82
50
BRACKET, ARM PIVOT
8HR-47349-00-00
Unavailable
51
BUSH
90386-20001-00
Unavailable
52
SHAFT 5
8HP-47487-00-00
Unavailable
53
WASHER, PLATE
90201-10043-00
Unavailable
54
BOLT, FLANGE
90105-10209-00
$8.49
55
COLLAR
90387-20032-00
Unavailable
56
ARM, PIVOT 2
8HR-47332-00-00
Unavailable
57
SHAFT 2
8FU-47475-00-00
Unavailable
58
BUSH, SOLID(8CJ)
90381-28108-00
Unavailable
59
WASHER, PLATE (8V2)
90201-251G8-00
Unavailable
60
WASHER, PLATE(8CJ)
90201-250T6-00
Unavailable
61
SHAFT 6
8GC-47488-00-00
Unavailable
62
BOLT, FLANGE
95817-10030-00
Unavailable
63
WASHER, PLATE
90201-19008-00
Unavailable
64
BRACKET 3
8GC-47417-10-00
Unavailable
65
SHAFT 3
8FU-47485-00-00
Unavailable
66
WASHER PLATE (789)
90201-10136-00
Unavailable
67
BOLT, FLANGE
95817-10030-00
Unavailable
68
STOPPER 2
8HR-47496-00-00
Unavailable
69
BOLT, HEXAGON
97017-06025-00
Unavailable
70
WASHER, PLATE
90201-06036-00
Unavailable
71
NUT, NYLON
95707-06300-00
Unavailable
72
BUSH
8HR-47371-09-00
Unavailable
