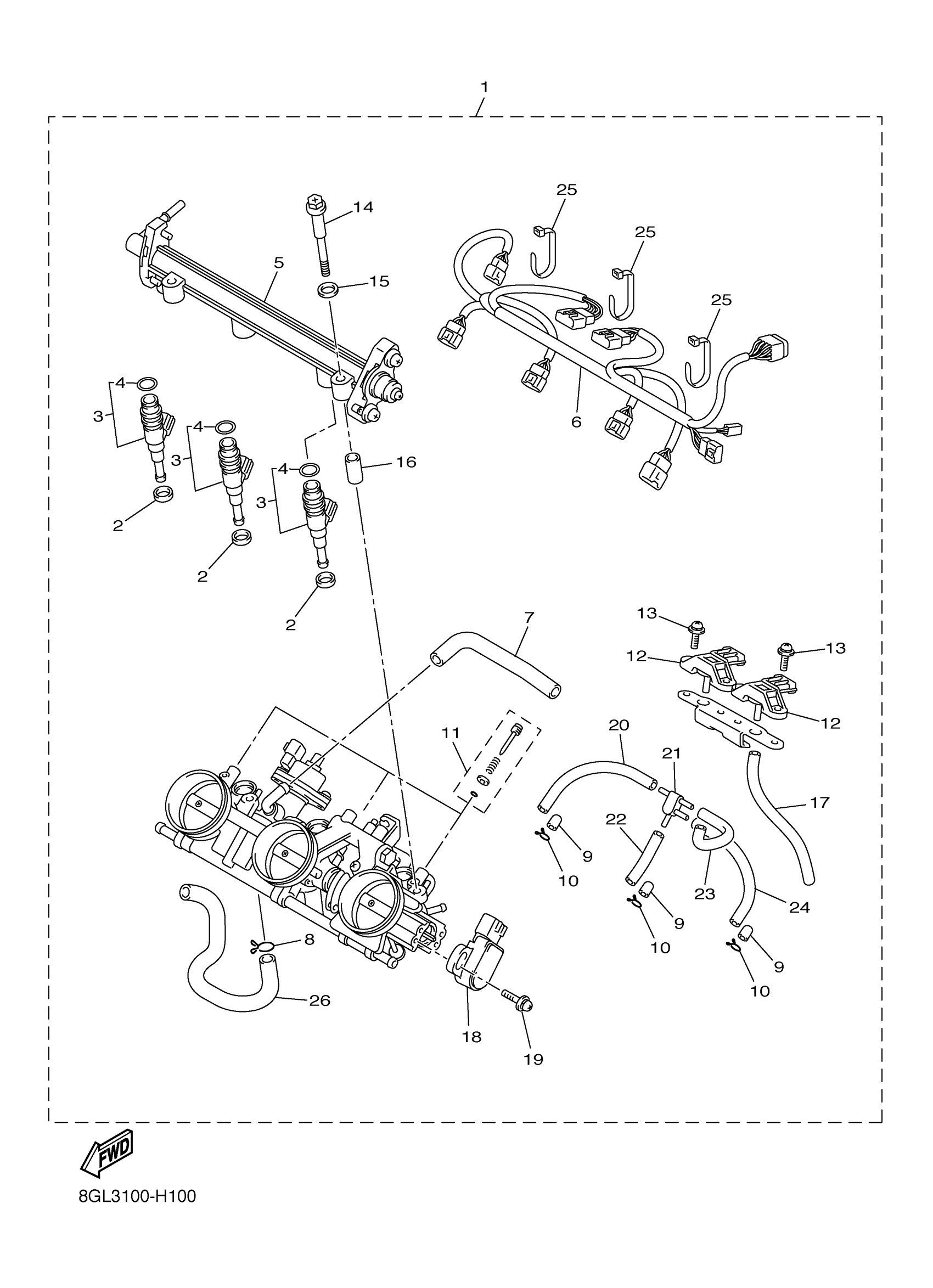

Yamaha FX10M62SAL (FX NYTRO MTX SE 162) 8HR30 2011 INTAKE 2 Diagram

#

Description
Price

1

THROTTLE BODY ASSY

8GL-13750-10-00

Unavailable

2

GASKET, MANIFOLD

8FP-13556-00-00

$13.99

3

INJECTOR ASSY

8GC-13761-00-00

$257.99

4

O-RING

8GC-13769-00-00

$16.99

5

PIPE INLET ASSEMBLY

8GL-13930-00-00

Unavailable

6

EXTENSION, WIRE HARNESS

8GL-82386-01-00

$214.99

7

HOSE, AIR

8GL-13895-00-00

Unavailable

8

CLIP

90467-150A2-00

$7.49

9

CAP

895-14169-00-00

$5.49

10

CLIP, PIPE

8A7-14139-00-00

$8.99

11

ADJUST SCREW SET

8GL-14503-00-00

Unavailable

12

SENSOR, PRESSURE

2C0-82380-10-00

$168.99

13

SCREW

8GL-14592-00-00

$4.72

14

BOLT 1

8GL-13573-00-00

$14.99

15

WASHER

8GL-13571-00-00

$3.50

16

COLLAR

8GL-14534-00-00

Unavailable

17

PIPE

5PW-14349-00-00

Unavailable

18

THROTTLE SENSOR AS

8GL-85885-01-00

Unavailable

19

SCREW

8CC-14216-10-00

Unavailable

20

HOSE

5JW-14987-00-00

Unavailable

21

CONNECTOR

5PW-1410F-00-00

Unavailable

22

PIPE

8FP-14349-30-00

Unavailable

23

HOSE, AIR 2

8GL-13892-00-00

Unavailable

24

HOSE, AIR 3

8GL-13893-00-00

Unavailable

25

CLIP

4KM-14137-00-00

Unavailable

26

HOSE 1

8GL-13545-00-00

Unavailable
