- FX10M53Z (FX NYTRO MTX) 8HAB 2010
TRACK SUSPENSION 1

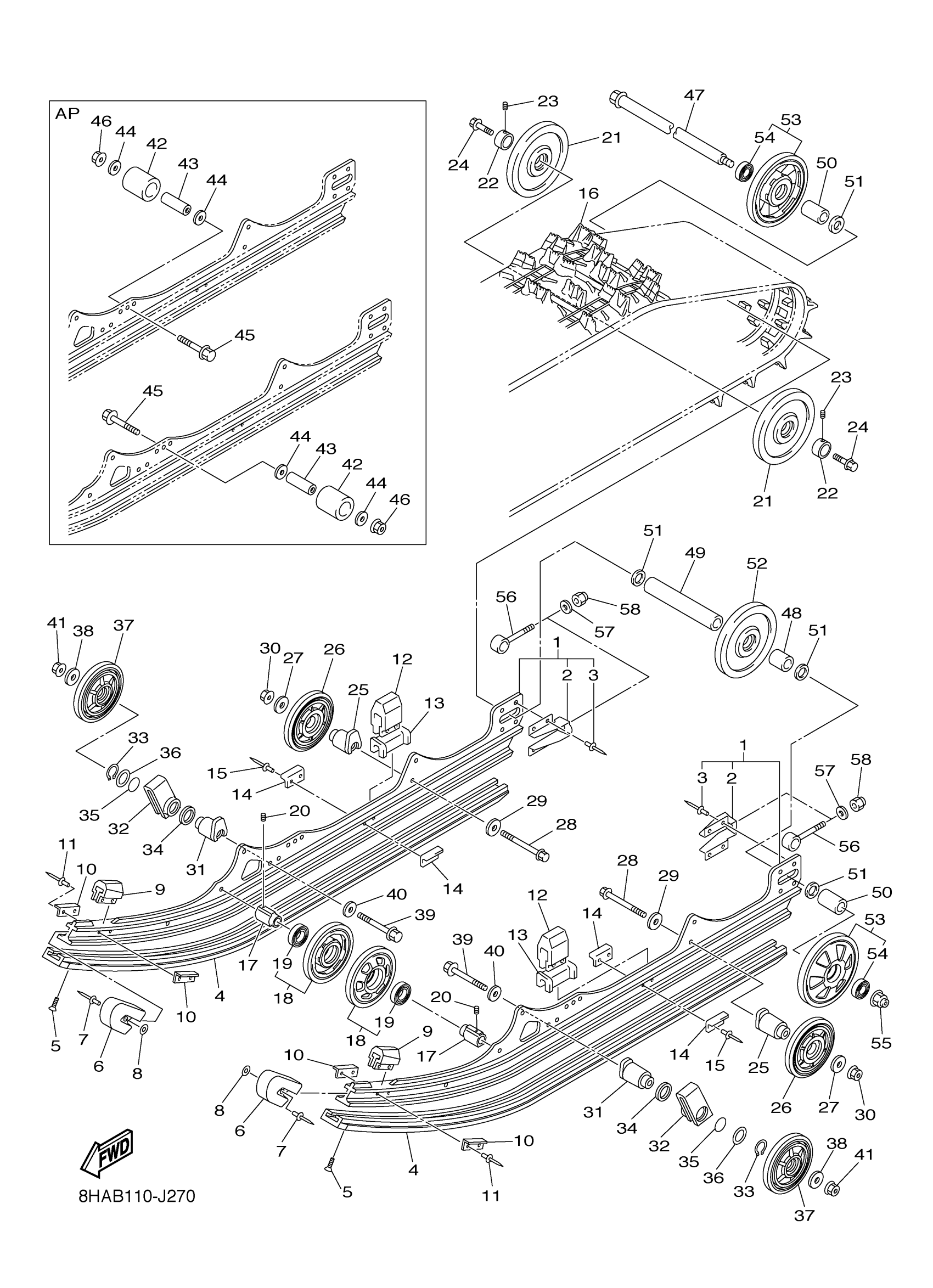

Yamaha FX10M53Z (FX NYTRO MTX) 8HAB 2010 TRACK SUSPENSION 1 Diagram
#
1
FRAME, SLIDING
8HA-W4741-01-00
Unavailable
2
BRACKET
8DM-4741B-00-00
$45.99
3
RIVET
8V0-47468-00-00
$10.49
4
RUNNER, SLIDING 1
8HA-47421-00-00
$114.99
5
SCREW, CROSSRECESS (8G6)
90151-06005-00
$9.49
6
RUNNER, SLIDING 2
8ED-47422-00-00
$46.99
7
RIVET BLIND
90267-48194-00
$3.28
8
WASHER, PLATE(8CM)
90201-047R8-00
$3.02
9
DAMPER 1
8ES-47456-00-00
$6.99
10
PLATE, DAMPER
8K2-47458-01-00
$4.77
11
RIVET, BLIND
90267-48199-00
$3.76
12
DAMPER 2
8CM-47457-00-00
$16.49
13
SPACER
8CM-47341-00-00
$16.49
14
PLATE, DAMPER
8AX-47458-00-00
$10.99
15
RIVET, BLIND
90267-48199-00
$3.76
16
TRACK - MAVERICK 153"
SMA-TRACK-90-25
Unavailable
17
COLLAR
8ES-47319-01-00
Unavailable
18
WHEEL BLK 130MM
SMA-8FP38-01-BK
Unavailable
19
BRG,R-B 6005 47MM 85G KY
93306-00507-00
Unavailable
20
BOLT, SET (8K2)
90113-06039-00
Unavailable
21
GUIDE WHEEL ASSY
8CR-47550-00-00
Unavailable
22
COLLAR 1
8ES-47365-00-00
Unavailable
23
BOLT, SET (8K2)
90113-06039-00
Unavailable
24
BOLT (8V0)
90109-10771-00
Unavailable
25
BRACKET 7
8ES-47419-00-00
Unavailable
26
SUSPENSION WHEEL ASSY
8FS-47310-01-00
Unavailable
27
WASHER, PLATE
90201-10038-00
Unavailable
28
BOLT, FLANGE
95812-10080-00
Unavailable
29
WASHER, PLATE
90201-10052-00
Unavailable
30
NUT, S/L FLANGE
95602-10200-00
Unavailable
31
BRACKET 7
8ES-47419-10-00
Unavailable
32
HOOK 1
8ES-47446-00-00
Unavailable
33
CIRCLIP(6U2)
93410-35M10-00
Unavailable
34
O-RING (16G)
93210-35537-00
Unavailable
35
O-RING (21A)
93210-34633-00
Unavailable
36
WASHER, PLATE
90201-35013-00
Unavailable
37
SUSPENSION WHEEL ASSY
8FS-47310-01-00
Unavailable
38
WASHER, PLATE
90201-10038-00
Unavailable
39
BOLT, FLANGE
95812-10080-00
Unavailable
40
WASHER, PLATE
90201-10052-00
Unavailable
41
NUT, S/L FLANGE
95602-10200-00
Unavailable
42
ROLLER
8ES-47429-00-00
Unavailable
43
COLLAR
90387-10025-00
Unavailable
44
WASHER, PLATE
90201-10052-00
Unavailable
45
BOLT, FLANGE
95812-10060-00
Unavailable
46
NUT, S/L FLANGE
95602-10200-00
Unavailable
47
REAR AXLE COMP.
8L8-47520-10-00
Unavailable
48
COLLAR
90387-20015-00
Unavailable
49
COLLAR
90387-20016-00
Unavailable
50
COLLAR
90387-20019-00
Unavailable
51
WASHER, PLATE(89W)
90201-205R6-00
Unavailable
52
GUIDE WHEEL ASSY
8CR-47550-10-00
Unavailable
53
REAR WHEEL BLK 178MM
SMA-8FP38-02-BK
Unavailable
54
BEARING(8AB)
93306-00444-00
Unavailable
55
NUT, U FLANGE
95602-14200-00
Unavailable
56
COLLAR 3
8DM-47479-00-00
Unavailable
57
WASHER, PLATE
92990-10600-00
Unavailable
58
NUT, NYLON
95707-10300-00
Unavailable
